• Model NO.：LRL1-9
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Spare Parts：Oil Ring, Seal Ring etc
• Lift Speed：4m,Min
• Platform Size：3000*3600mm
• Pit Depth：300mm
• Color：Blue or Yellow or White or Black
• Speed：3-6m,Min
• Guardrail Height：1100mm
• Chain：16b
• Stops：2
• Warranty：12 Months
• Transport Package：Plywood Packing
• Trademark：MORN
• Origin：China
• HS Code：84289090
• Production Capacity：300 Units Per Month

Basic Info.

Model NO. LRL1-9 Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Spare Parts Oil Ring, Seal Ring etc Lift Speed 4m/Min Platform Size 3000*3600mm Pit Depth 300mm Color Blue or Yellow or White or Black Speed 3-6m/Min Guardrail Height 1100mm Chain 16b Stops 2 Warranty 12 Months Transport Package Plywood Packing Trademark MORN Origin China HS Code 84289090 Production Capacity 300 Units Per Month

Product Description

Vertical hydraulic freight cargo lift

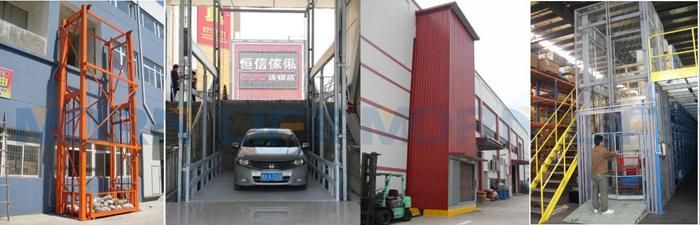

 Vertical cargo lift with steel mesh enclosure is widely used in indoor or outdoor workplaces of the buildings and warehouses, lifting goods or pallets among different vertical floors. It's mainly used to provide fast, efficient, convenient and safe access for goods to reach mezzanines, basements, and any levels in multi-storied buildings.

Main model list for your reference

Model	Lifting height	Capacity	Platform size	Pit depth
LRL 3-2.4	2.4M	3T	2.0*2.0M	300 MM
LRL 2-5	5.0M	2T	2.1*1.2M	200 MM
LRL 1-4.5	4.5M	1T	2.1*1.5M	200 MM
LRL 5-6.5	6.5M	5T	2.2*1.6M	300 MM
LRL 3-6.5	6.5M	3T	2.2*1.9M	300MM

Vertical cargo lift is customizable in loading capacity, platform size, and lifting height for your individual requirements.

Safety protection of our vertical cargo lift as below

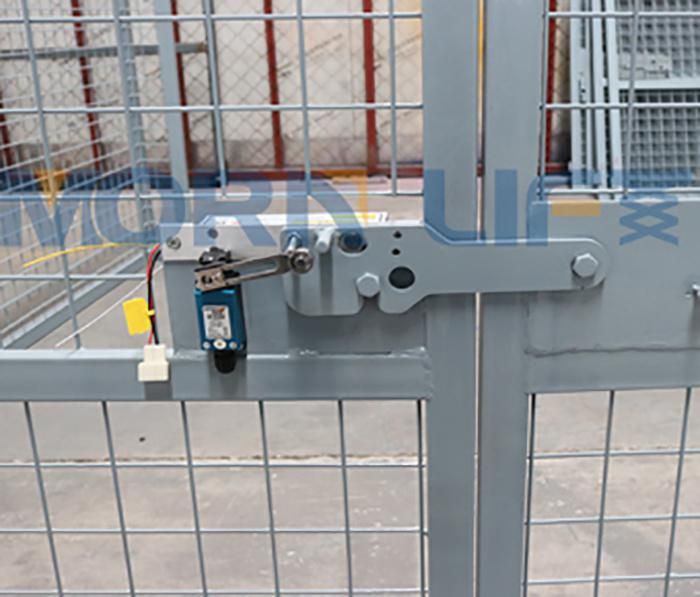

Interlocking System

Only all doors closed, could the cargo lift hoist. If any door open, the lift will not move. It prevent worker's misoperation and potential damage to workers.

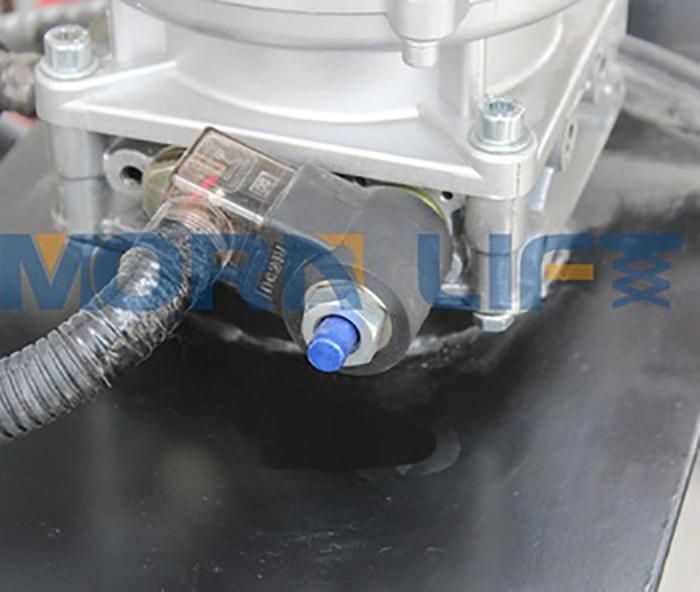

Manual Decline Valve
In case of the failure of electricity supply, the platform will be suspended in midair. Then we could manually make the platform come down to Ground floor by the Manual Decline Valve. Prevent potential danger.

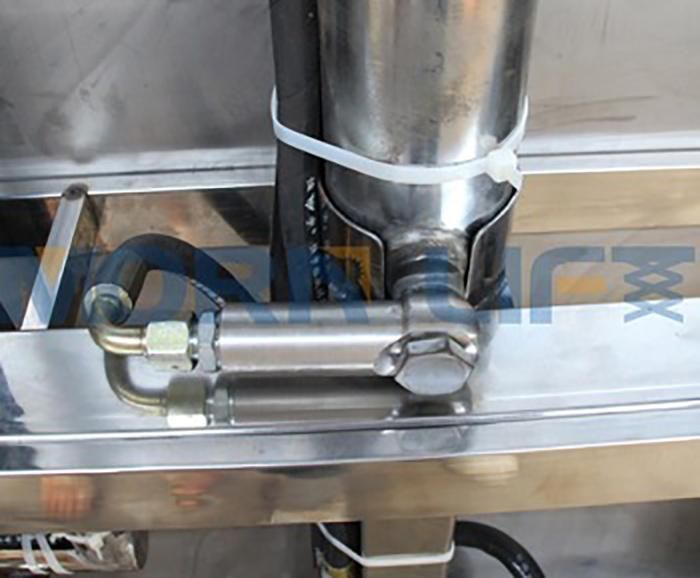

Anti-explosion Valve
In case of hydraulic pipe fracture, then Anti-explosion valve will work to prevent the hydralic oil leak out, so that it prevent the platform fall down. Protect the safety of the goods and worker.

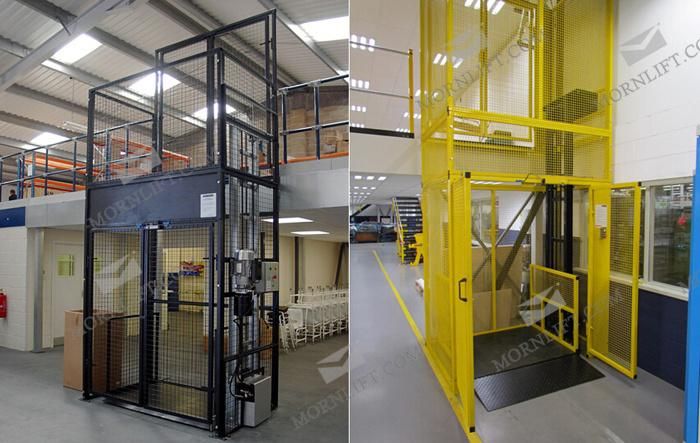

Cargo lift provides fast, efficient, convenient and safe access to mezzanines, balconies, basements, and any levels in multistoried building. Cargo lift can be installed indoor and outdoor applications.

Packing and deliveryThe normal package is wooden box for cargo lift. If export to european countries, the wooden box will be fumigated. If container is too tigher, we will use pe film for packing or pack cargo lift according to customers special request.
