Easy Used G80 Chain Vd 1ton Yellow Manual Hoist Chain Block

Shanghai Yiying Crane Machinery Co., Ltd.
  • Application：Double Beam Crane, Gantry Crane, Single Grinder Crane, Small Crane, Lifting Equipment
  • Type：Chain Hoist
  • Sling Type：Chain
  • Lift Speed：2~8m,min
  • Maximum Lifting Height：>20m
  • Chain Falls：1

Base Info

  • Model NO.：VC_B Manual Hoist
  • Certification：CE, ISO9001:2000, TUV
  • Condition：New
  • Color：Yellow
  • Name：Vd Manual Hoist
  • Easy Lift：Yes
  • Gear：National Standard
  • Capacity：0.5t-30t
  • Custom Color：Depends
  • Hook：Wide Thick Forged Forged
  • Body：Robust
  • Warranty：2 Year
  • Zinc Hand Chain：Available
  • G80 Chain：Yes
  • Transport Package：Carton, Wooden Case, Pallet, and So on
  • Specification：CE, ISO
  • Trademark：HUGO
  • Origin：Shanghai
  • HS Code：8425190000
  • Production Capacity：60000 PCS,Year

Description

                                                                   The Paramters of VC_B Manual Hoist  ModelVC-B 0.5VC-B 1VC-B 1.5VC-B 2VC-B  5 3VC-B 5VC-B 10VC-B 20VC-B 30VC-B 50Capacity(t)0.511.523510203050Standard lift(m)2.52.52.53333333Running test load(t)0.751.52.2534.57.515304575No.of falls of load chain111122481224Load chain diameter(mm)56.37.187.199999Dimension(mm) A129149.5157.5161.5151.5163207215350406B136145164.5187164.5211398650680962C27031739941446563679889013802578Net weight(kg)8.41216.2202441791932201092Packing(L*W*H)(cm)22*14*1525*19*1633*24*1633*24*1934.5*24*1640*30*1948*42*18.578*68*2085*67*30110*100*130

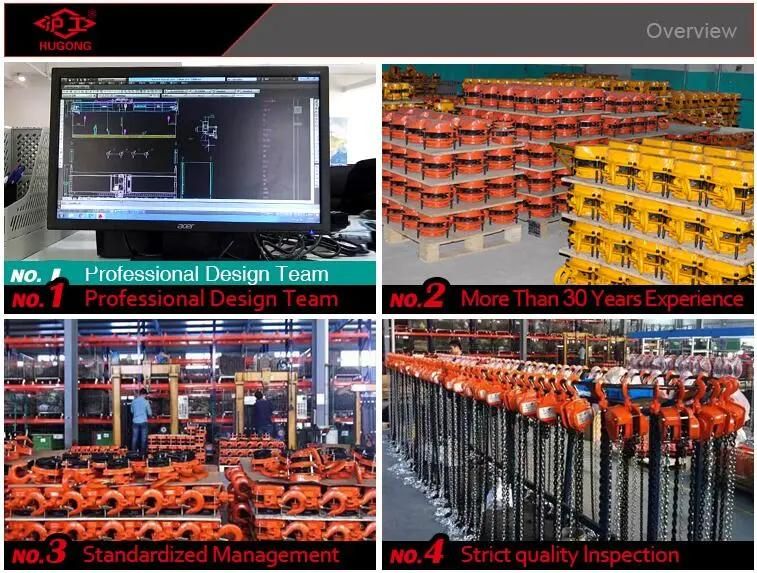

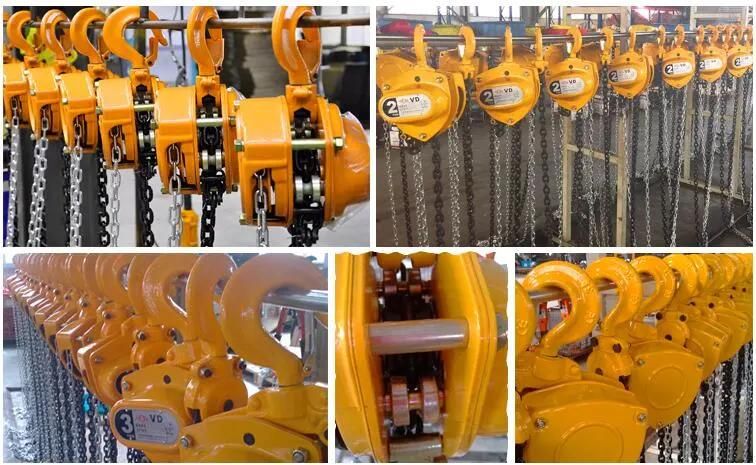

Factory view for the VD manual chain block:
Easy Used G80 Chain Vd 1ton Yellow Manual Hoist Chain Block
Easy Used G80 Chain Vd 1ton Yellow Manual Hoist Chain Block

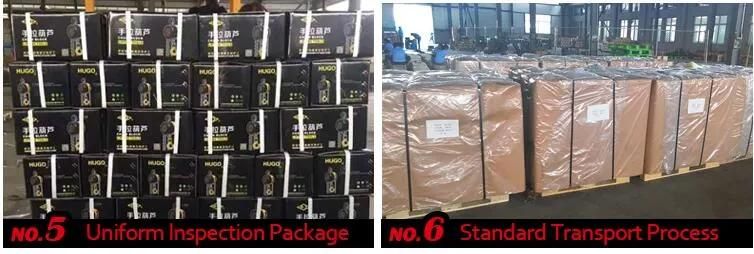

Package for the manual chain block:
Easy Used G80 Chain Vd 1ton Yellow Manual Hoist Chain Block
