7.5m Man Lifts Self Propelled Vertical Lift with 125kg Capacity
Chenlift (Suzhou) Machinery Co., Ltd.- After-sales Service：Can Post Spare Parts Within 1 Week
- Warranty：One Year
- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Lift Chain
- Carrying Capacity：Light Level
- Moves：Moving
Base Info
- Model NO.：MG750-1
- Driven Type：Hydraulic
- Running Mode：Moving
- Feature：Explosion-Proof, Insulating
- Certification：CE, ISO 9001
- Platform Height：7.5m
- Working Height：9.5m
- Loading Capacity：125kg
- Platform Size：0.78*0.70m
- Weight：880kg
- Gradeability：25%
- Driving Motor：2*24V,0.4kw
- Lifting Motor：24V,2kw
- Charger：24V,12A
- Power Source：2*12V,115ah
- Transport Package：PVC Film Wrapped in Pallet
- Specification：1.36*0.79*1.98m
- Trademark：CHEN LIFT
- Origin：China
- HS Code：8428909090
- Production Capacity：3000 Units Per Year
Description
Basic Info.
Model NO. MG750-1 Driven Type Hydraulic Running Mode Moving Feature Explosion-Proof, Insulating Certification CE, ISO 9001 Platform Height 7.5m Working Height 9.5m Loading Capacity 125kg Platform Size 0.78*0.70m Weight 880kg Gradeability 25% Driving Motor 2*24V/0.4kw Lifting Motor 24V/2kw Charger 24V/12A Power Source 2*12V/115ah Transport Package PVC Film Wrapped in Pallet Specification 1.36*0.79*1.98m Trademark CHEN LIFT Origin China HS Code 8428909090 Production Capacity 3000 Units Per YearProduct Description
Self-Propelled Economical Vertical LiftSelf-Propelled Economical Vertical Lift is light and exquisite, convenient and flexible. It can pass through the general foyer, can enter and exit the elevator at will, save energy and electricity, and work without hurting the ground. It can be used for wall-mounted work and exploration work, and is widely used in hotels, hospitals, stations, airports, warehouses and other occasions.
Safe and reliable operation performance, the base pothole protection device gives you a hundred times peace of mind.

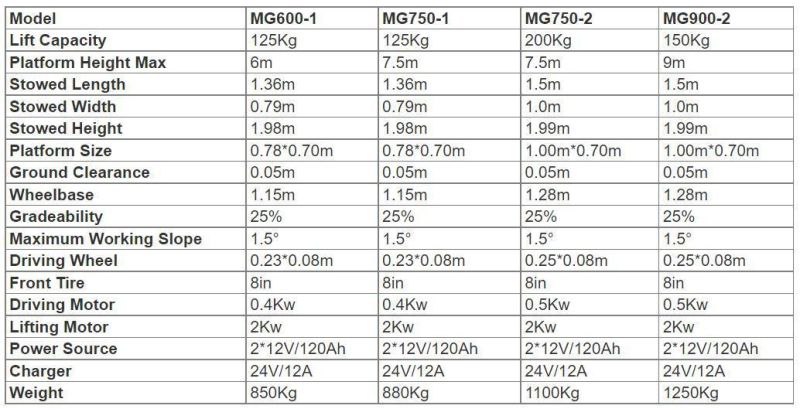

Specification:
Swivel Turning Type

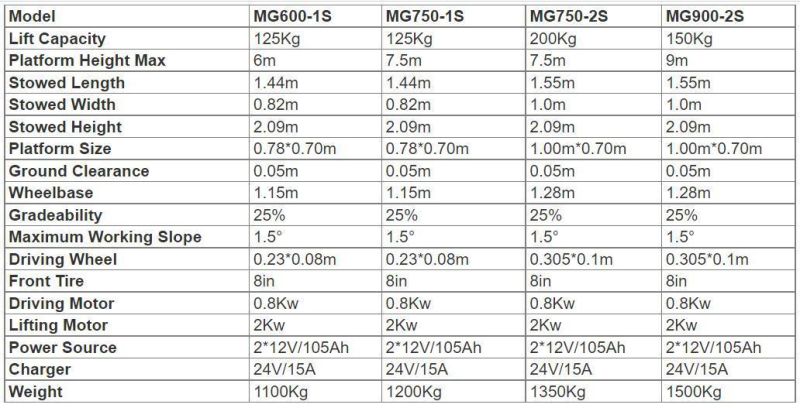

Hydraulic Turning Type
Details:

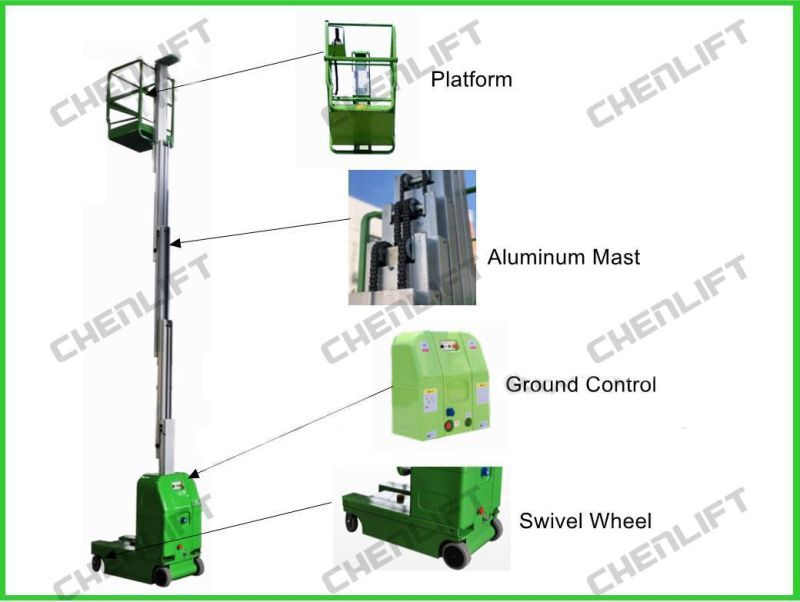

Swivel Turning Type

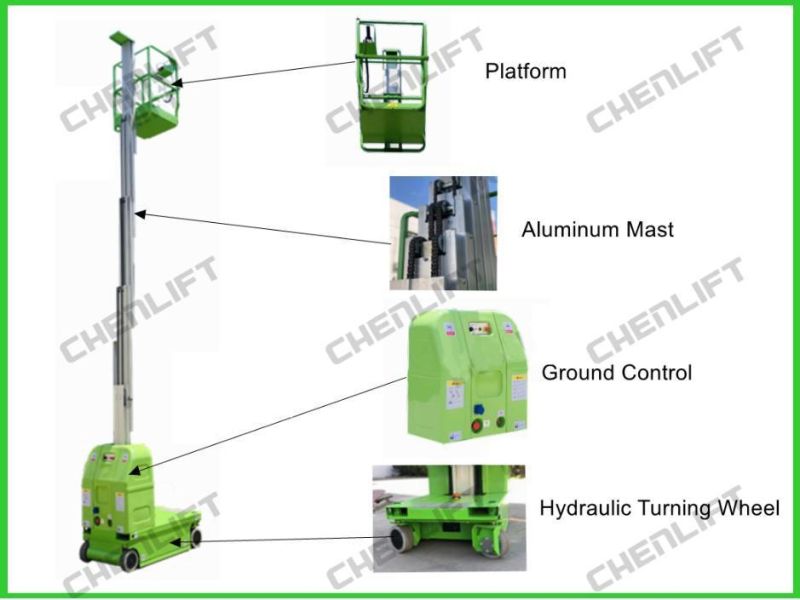

Hydraulic Turning Type
Company Introduction
Chenlift (Suzhou) Machinery Co Ltd. is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.
Certificates
Factory Equipment
Customer Visiting

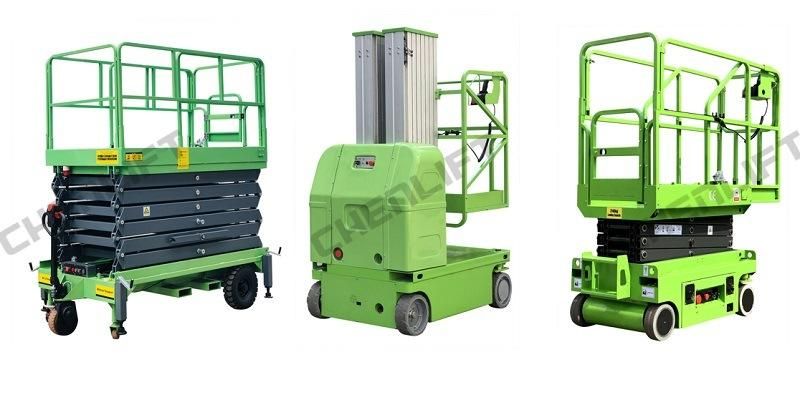

Other Related Products
