• Model NO.：MG750-1
• Driven Type：Hydraulic
• Running Mode：Moving
• Feature：Explosion-Proof, Insulating
• Certification：CE, ISO 9001
• Platform Height：7.5m
• Working Height：9.5m
• Loading Capacity：125kg
• Platform Size：600*640 mm
• Lifting Motor：24V,2kw
• Overall Weight：880kg
• Gradeability：25%
• Driving Motor：2*24V,0.4kw
• Power Source：2*12V,115ah
• Transport Package：PVC Film Wrapped in Pallet
• Specification：1.36*0.79*1.98m
• Trademark：CHEN LIFT
• Origin：China
• HS Code：8428909090
• Production Capacity：3000 Units Per Year

Basic Info.

Model NO. MG750-1 Driven Type Hydraulic Running Mode Moving Feature Explosion-Proof, Insulating Certification CE, ISO 9001 Platform Height 7.5m Working Height 9.5m Loading Capacity 125kg Platform Size 600*640 mm Lifting Motor 24V/2kw Overall Weight 880kg Gradeability 25% Driving Motor 2*24V/0.4kw Power Source 2*12V/115ah Transport Package PVC Film Wrapped in Pallet Specification 1.36*0.79*1.98m Trademark CHEN LIFT Origin China HS Code 8428909090 Production Capacity 3000 Units Per Year

Product Description

Self-Propelled Economical Vertical LiftSelf-Propelled Economical Vertical Lift is light and exquisite, convenient and flexible. It can pass through the general foyer, can enter and exit the elevator at will, save energy and electricity, and work without hurting the ground. It can be used for wall-mounted work and exploration work, and is widely used in hotels, hospitals, stations, airports, warehouses and other occasions.
Safe and reliable operation performance, the base pothole protection device gives you a hundred times peace of mind.

Specification:

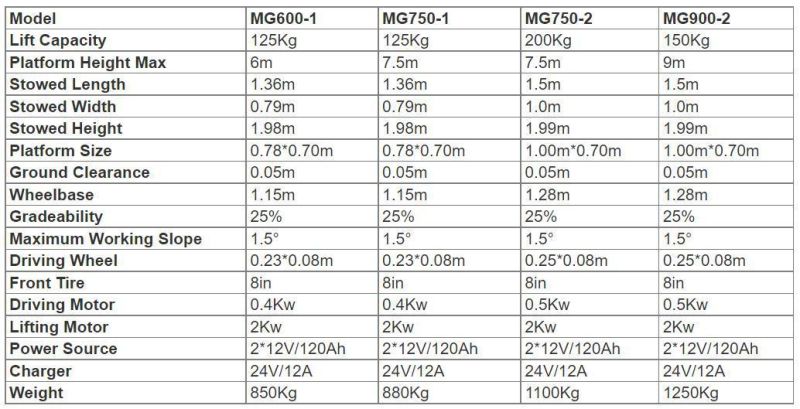

Swivel Turning Type

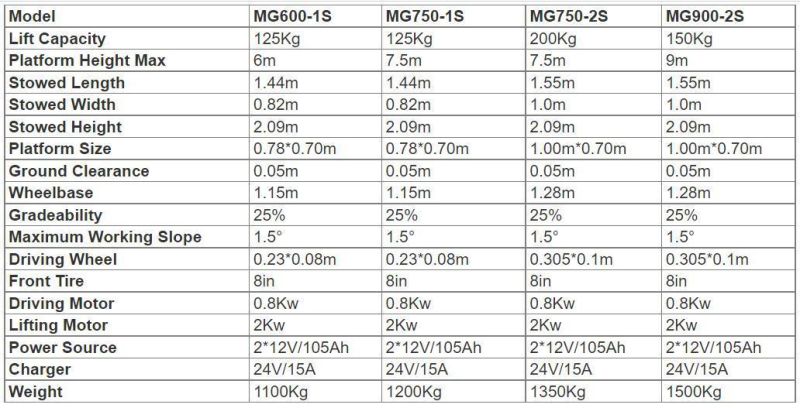

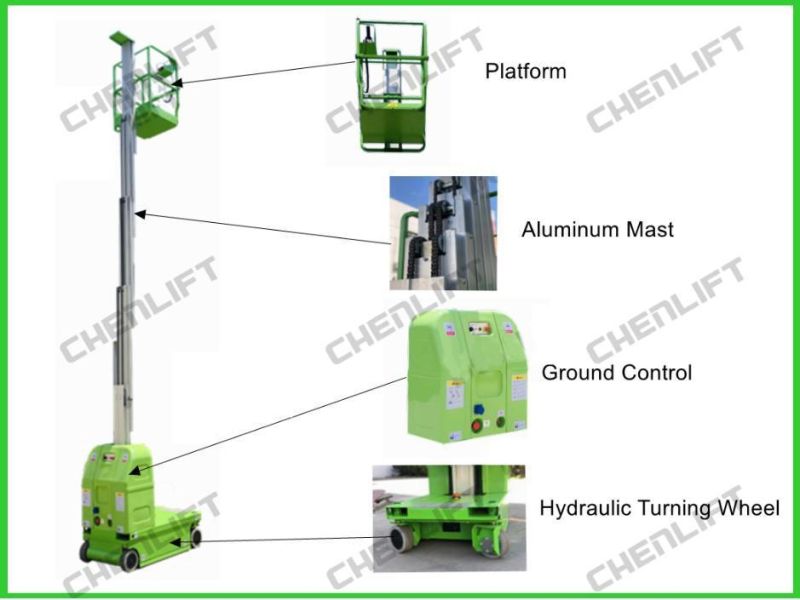

Hydraulic Turning Type
Details:

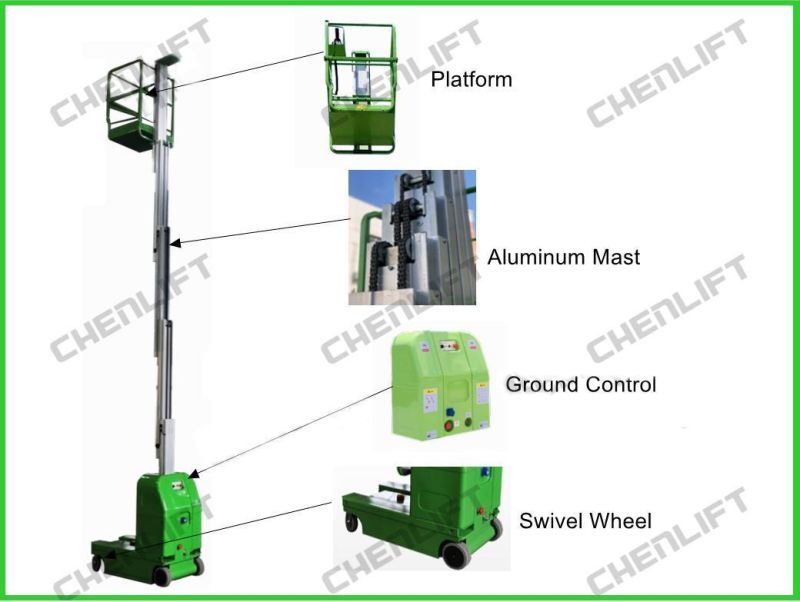

Swivel Turning Type




Operation of Picker


Company Introduction
Chenlift (Suzhou) Machinery Co Ltd. is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.


Certificates


Factory Equipment


Customer Visiting

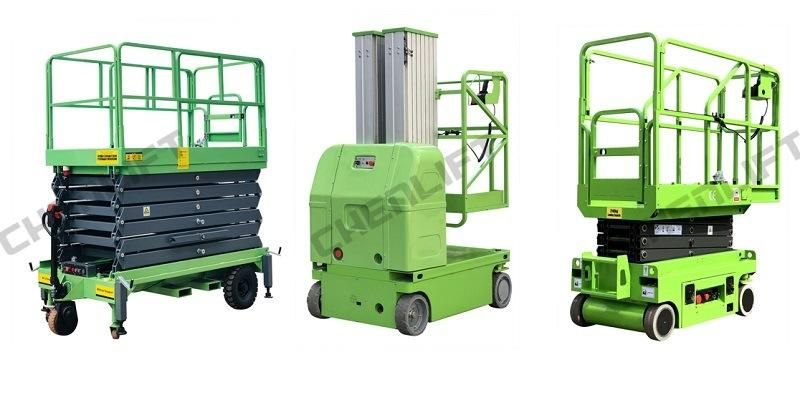

Other Related Products
