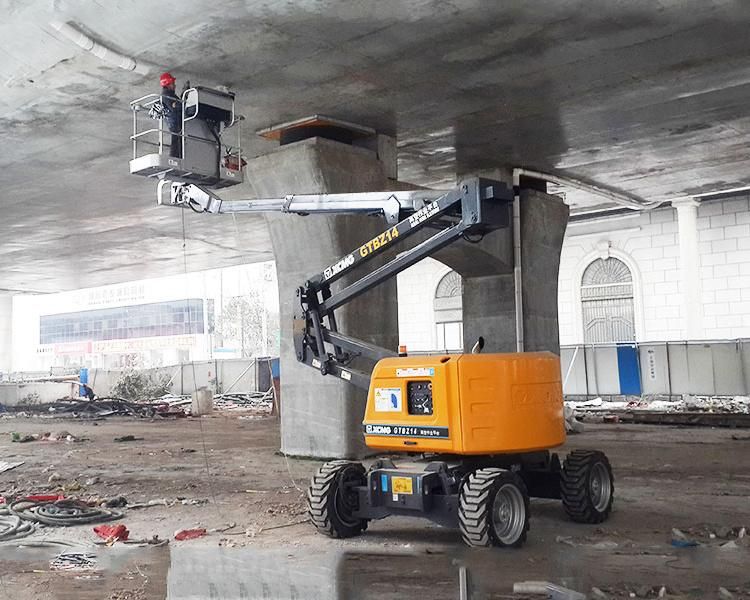

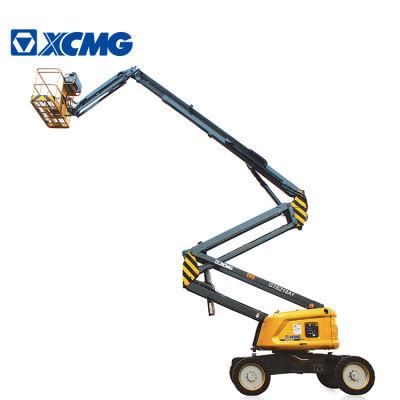

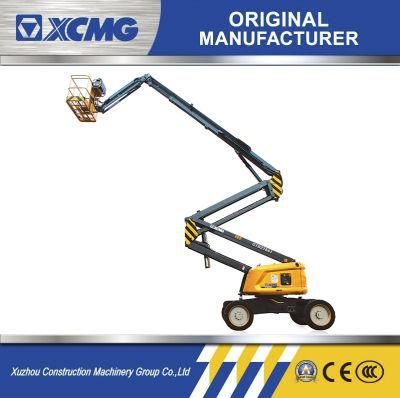

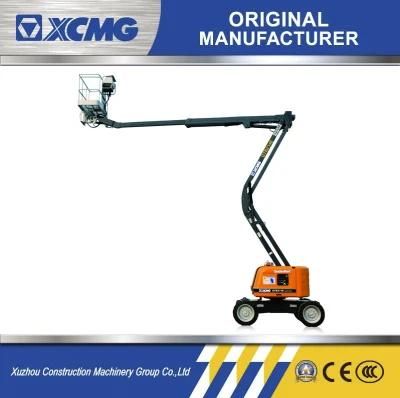

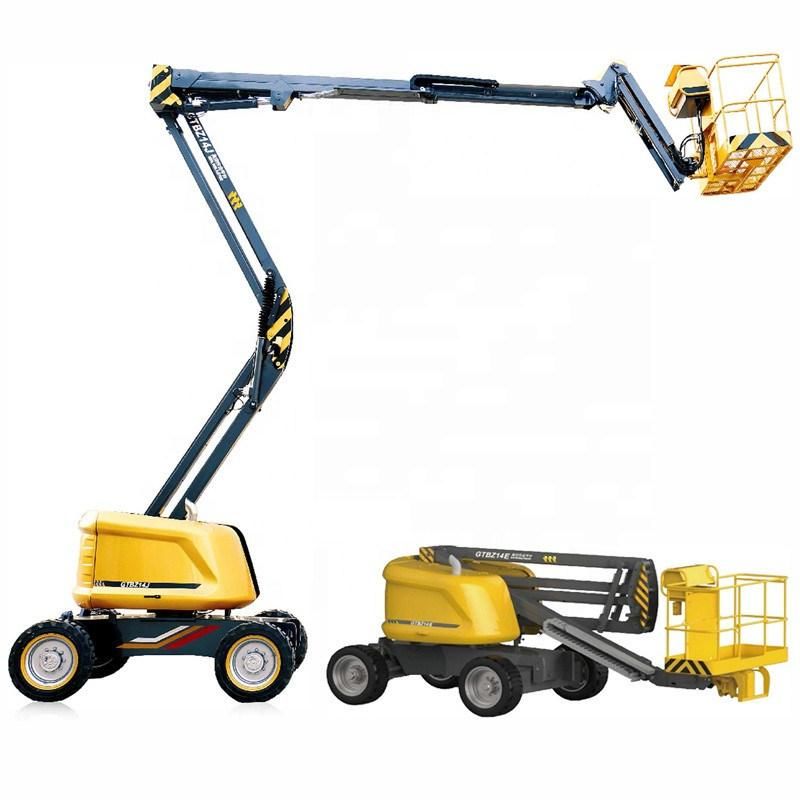

14m-Level Scissor Lift Gtbz14e Articulating Aerial Work Platform
Xuzhou Construction Machinery Group Co., Ltd.- Maximum Working Height：15.9m
- Maximum Load Capacity：230kg
- Rotation Angle of Rotating Platform：335
- Total Weight：6800kg
- Transport Package：Comply with Export Packaging Requirements
- Specification：5780*2260*2130mm
Base Info
- Model NO.：GTBZ14E
- Trademark：XCMG
- Origin：Jiangsu, China
- HS Code：87059091
- Production Capacity：1000 , Year
Description
Overview
Product Parameters Item Unit Parameters a Overall Length mm 5780 b Overall Width mm 2260 c Overall Height mm 2130 d Wheel Base mm 2100 Maximum Working Height m 15.9 Maximum Platform Height m 14.2 Maximum Working Range m 8.09 Maximum Load Capacity kg 230 1stBoom luffing Range ° 0~+60 2ndBoom luffing Range -22~+75 Rotation Angle of Rotating Platform ° 355 Maximum Tail Wagging mm 0 Platform Size mm 1830×760×1150 Platform turning angle ° 180 Total Weight kg 6800 Maximum Travel Speed km/h 6.1 Minimum Turning Radius m 4.5 Minimum Ground Clearance mm 250 Maximum Grade Ability % 45 Tire Specification - 315/55D20 Engine Model - Deutz
D2011 L03i Rated Power of Engine kW/(r/min) 36.3/(2800)
Company Profile
FAQ
D2011 L03i
Company Profile
FAQ1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
