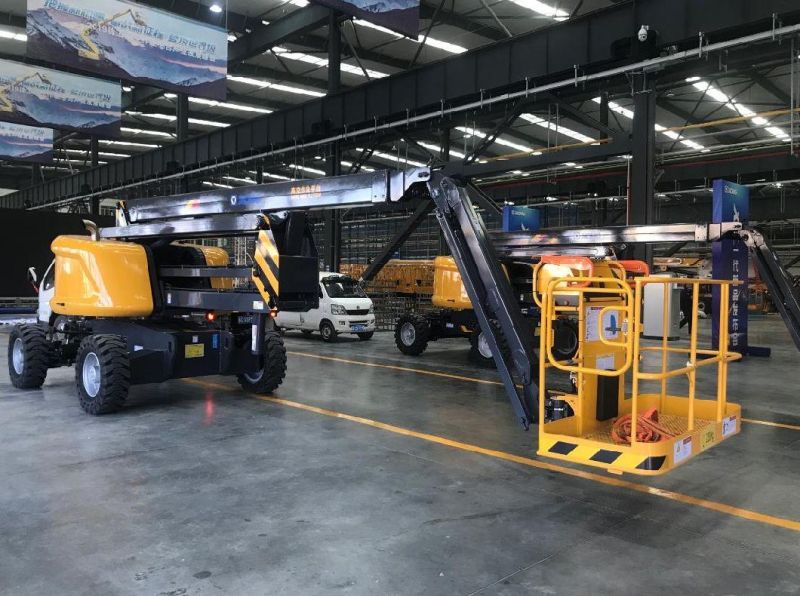

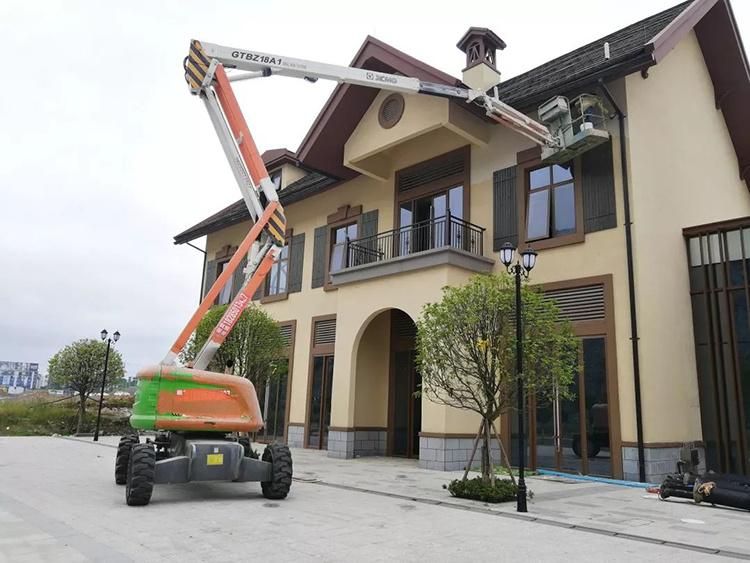

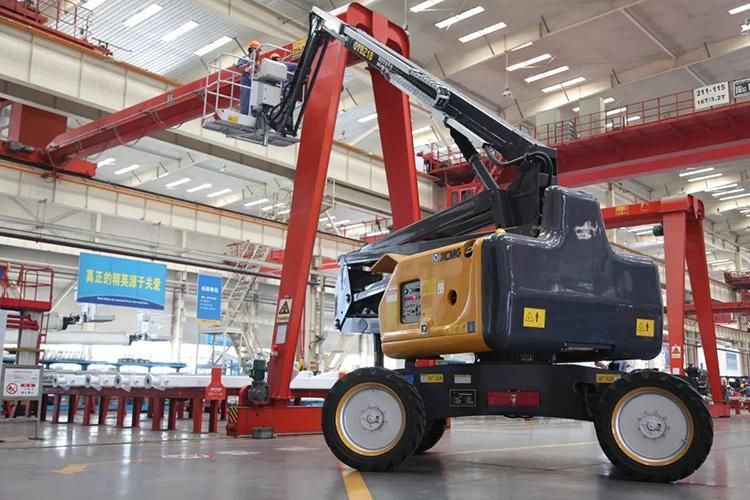

XCMG 18m Gtbz18A1 Hydraulic Folding Aerial Work Platform for Sale
Xuzhou Construction Machinery Group Co., Ltd.- After-sales Service：Overseas Service Center Available
- Warranty：1year
- Maximum Working Height：20.1m
- Maximum Load Capacity：230kg
- Maximum Platform Height：18.4m
- Total Weight：10600kg
Base Info
- Model NO.：GTBZ18A1
- Transport Package：Comply with Export Packaging Requirements
- Specification：9080*2490*2680mm
- Trademark：XCMG
- Origin：Jiangsu, China
- HS Code：84301000
- Production Capacity：1000,Year
Description
Overview
Product Description
2) Accurate and Efficient Operation

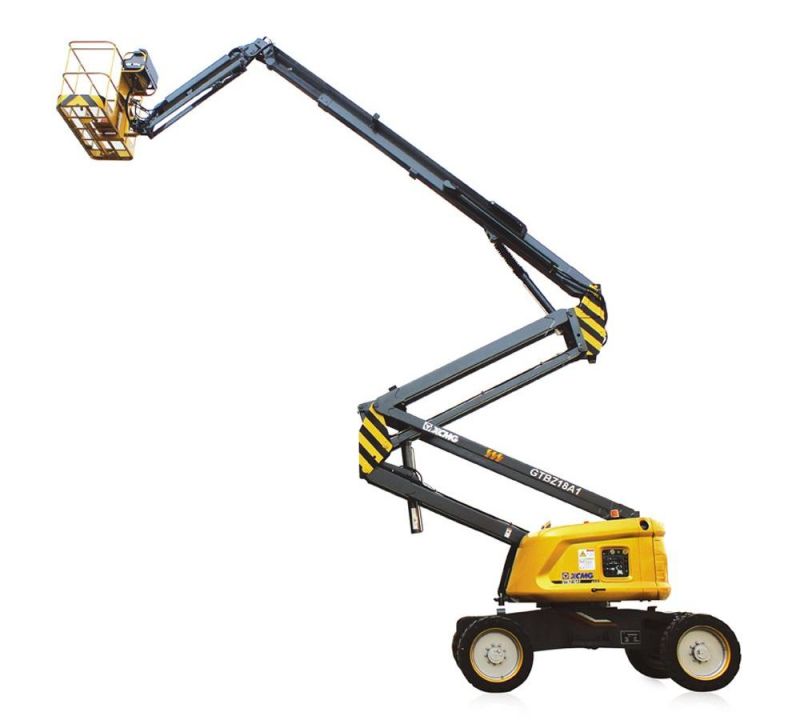

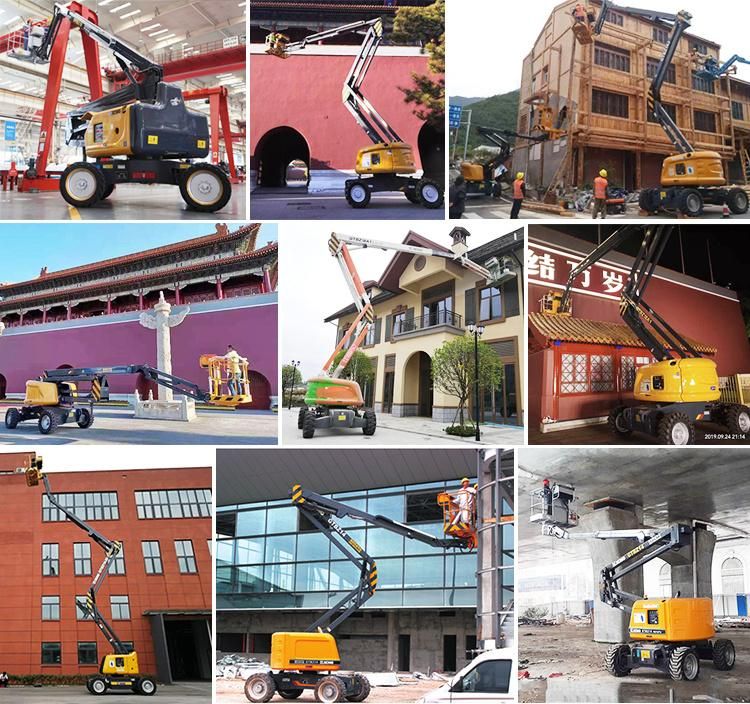

"Σ" type linkage folded hybrid boom design; the overall layout is compact and tail swing is small, which is easy to store and access to the narrow space to work; the extending of the body is flexible, without regional restrictions and with a wide operating range. It has upward, downward and crossed precise multidirectional positioning functions and excellent extending features.
3) Compactness and flexibility

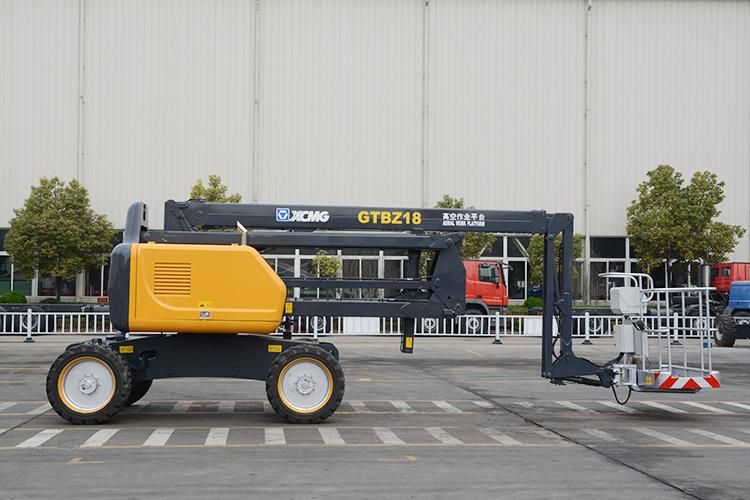

The complete machine is arranged compactly and crank boom recovery gesture is adopted during transportation with transportation length of only 7m; meanwhile, it adopts tailless wagging design, which is convenient for storage and entering into narrow space for operation.Product ParametersItem Unit Parameters Overall Length mm 9080 Overall Width mm 2490 Overall Height mm 2680 Wheel Base mm 2500 Maximum Working Height m 20.1 Maximum Platform Height m 18.4 Maximum Working Range m 11.9 Maximum Load Capacity kg 230 1st Boom Luffing Range ° 0~+70 2nd Boom Luffing Range 0~+75 Crank Arm Luffing Range -65~+70 Rotation Angle of Rotating Platform ° 360 Maximum Tail Wagging mm 0 Platform Size mm 1830×760 Platform turning angle ° 180 Total Weight kg 10600 Maximum Travel Speed km/h 6.0 Minimum Turning Radius m 6.0 Minimum Ground Clearance mm 230 Maximum Grade Ability % 45 Tire Specification - 355/55D625 Engine Model - Perkins 404D-22 Rated Power of Engine kW/(r/min) 38/(3000)
Company Profile
FAQ
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
1) Strong Road Adaptability
With four-wheel drive, off-road wide tires and new axle floating technology,the drive is superior, and the road adaptability is strong, with the maximum grade ability of 45%, reaching to the highest level in the industry.2) Accurate and Efficient Operation
"Σ" type linkage folded hybrid boom design; the overall layout is compact and tail swing is small, which is easy to store and access to the narrow space to work; the extending of the body is flexible, without regional restrictions and with a wide operating range. It has upward, downward and crossed precise multidirectional positioning functions and excellent extending features.
3) Compactness and flexibility

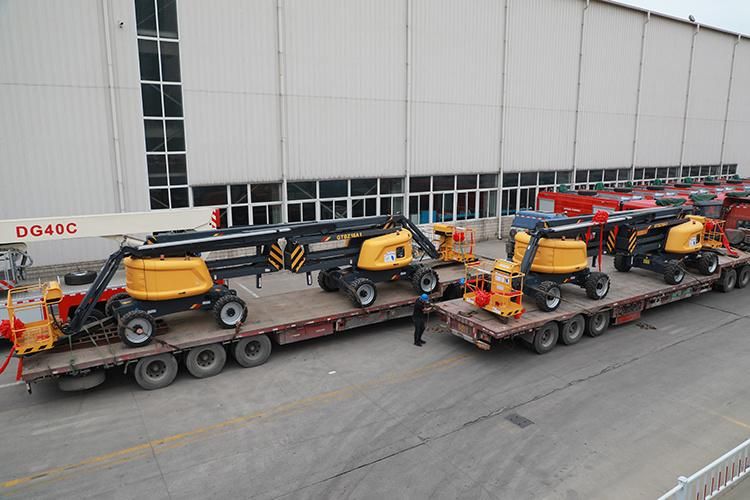

The complete machine is arranged compactly and crank boom recovery gesture is adopted during transportation with transportation length of only 7m; meanwhile, it adopts tailless wagging design, which is convenient for storage and entering into narrow space for operation.Product Parameters
Company Profile
FAQ1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
