• Model NO.：KDSJY0.3-6
• Driven Type：AC
• Running Mode：Scissor Lift
• Feature：Scissor Lift
• Certification：CE
• Structure：Scissor Lift
• Installation：Scissor Lift
• Type of Work：Special Weight Level

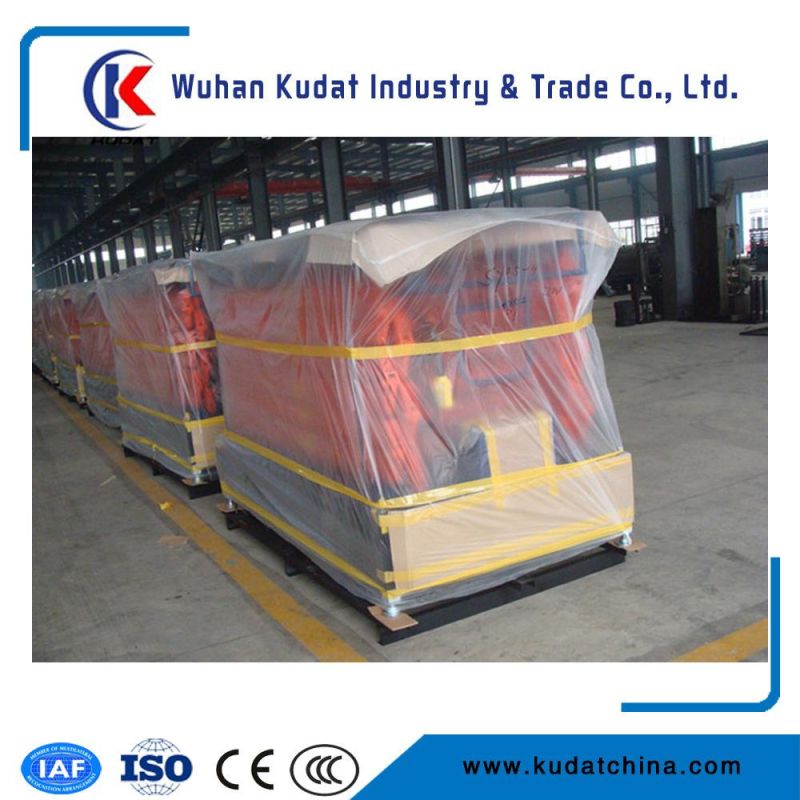

• Transport Package：Nude
• Specification：CE
• Trademark：KUDAT
• Origin：China
• Production Capacity：500PCS,Month

Basic Info.

Model NO. KDSJY0.3-6 Driven Type AC Running Mode Scissor Lift Feature Scissor Lift Certification CE Structure Scissor Lift Installation Scissor Lift Type of Work Special Weight Level Transport Package Nude Specification CE Trademark KUDAT Origin China Production Capacity 500PCS/Month

Product Description

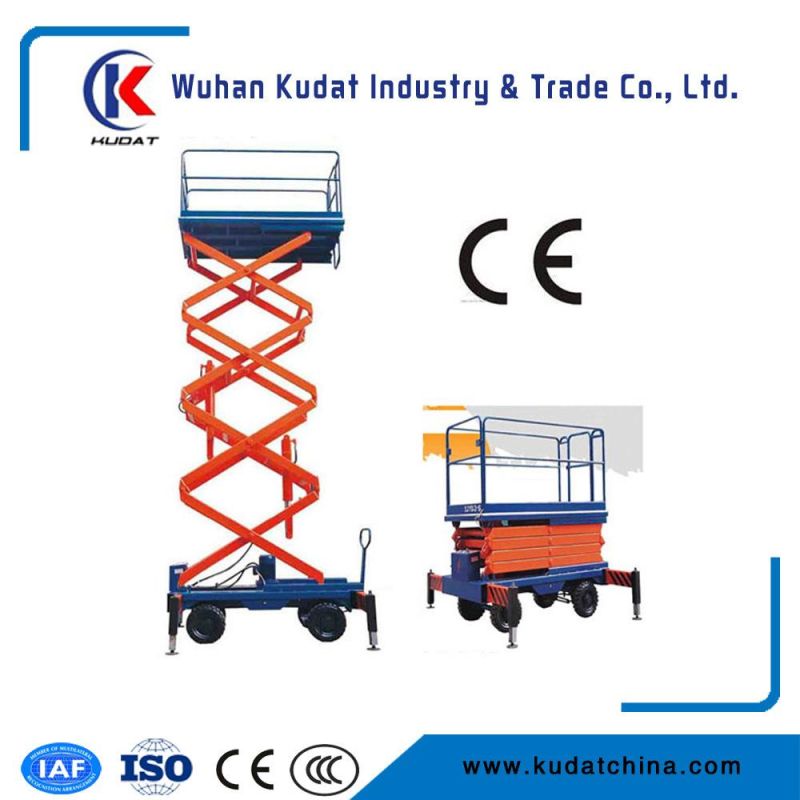

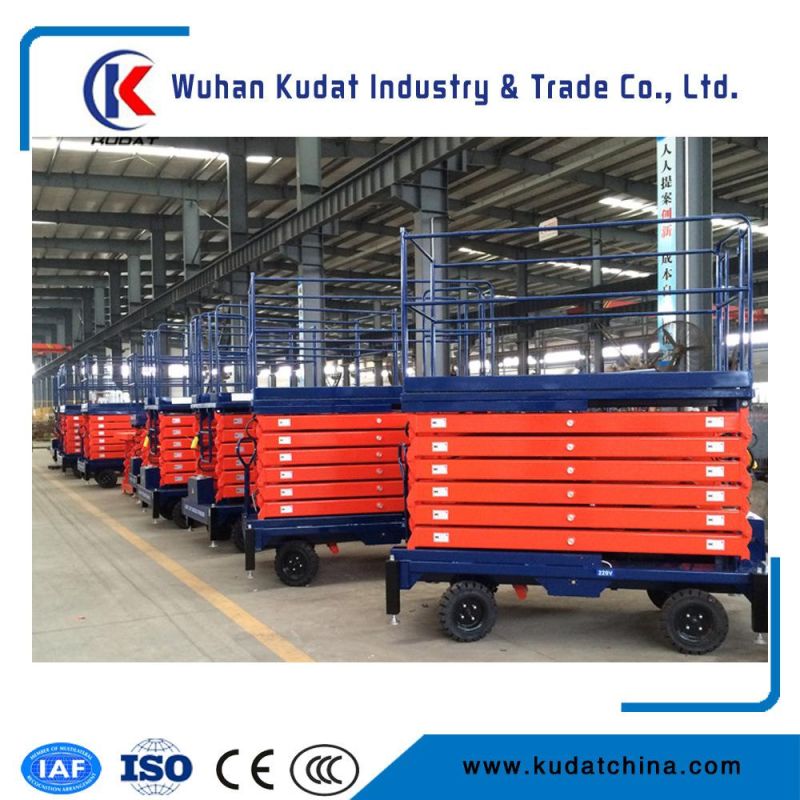

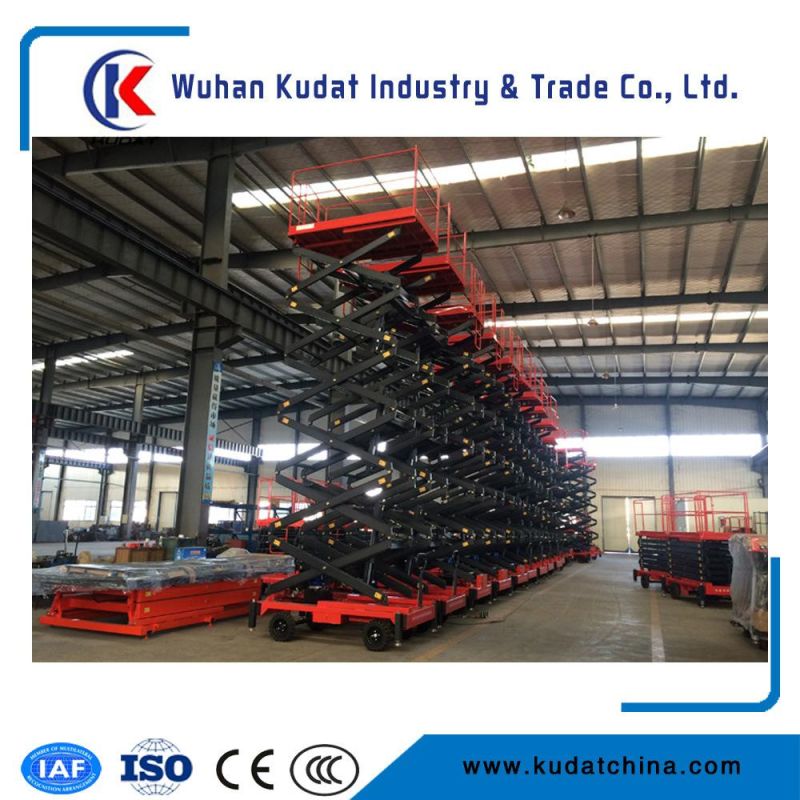

SJY Scissors Lift With CE Approved
The scissor type aerial lift table is a special equipment of wide use for aerial work. The scissor type mechanical structure makes lift more stable, lift table more broader, carrying capacity much higher and is suitable for several operators at the same time. Therefore, the aerial work is of high efficiency and security.

Lifting structure is made up of manganese steel square pipes which have high strength.
Equipped with safety protection equipments to prevent overload of lift tables.
Equipped with safety production valves to prevent rupture of hydraulic pipelines.
Equipped with urgent fall equipments for the condition of power cut.

The SJY0.3-11scissor lifts is idea for building maintenance, Indoor painting and decorating, cleaning, suspended ceiling installation, etc.
It offering a safe and effective working height of 13.8 metres.
Standard features include non-marking tyres, an optional roll-out deck extension For extra platform space where it is really needed. The standard work voltage of The scissor lift is 220V/60Hz or 380V/60Hz, 24V/DC battery power is available For you.

Model	Unit	KDSJY0.3-6
Rated capacity	kg	300
Plate height(max)	mm	6000
Plate height (min)	mm	1127
Plate size(l*m)	mm	1830*1000
Working voltage	v	AC380,AC220,or AC110
Working voltage	v	DC24,or AC_DC24
Motor power	380v	1.5kw
Motor power	220v	2.2kw
Overal length	mm	1900
Overal width	mm	1200
Overal height	mm	2163
Met weight	kg	940
