• Model NO.：ZA20JE
• Driven Type：AC
• Running Mode：Moving
• Certification：GS, CE, RoHS, ISO 9001
• Work Height：21450mm
• Platform Height：19450mm
• Horizontal Outreach：12050mm
• up and Over Height：8250mm
• Wheelbase：2520mm
• Ground Clearance：330mm
• Platform Capacity：250kg
• Transport Package：Nude Packing
• Specification：8720x2490x2560mm
• Trademark：ZOOMLION
• Origin：China
• Production Capacity：50units,Month

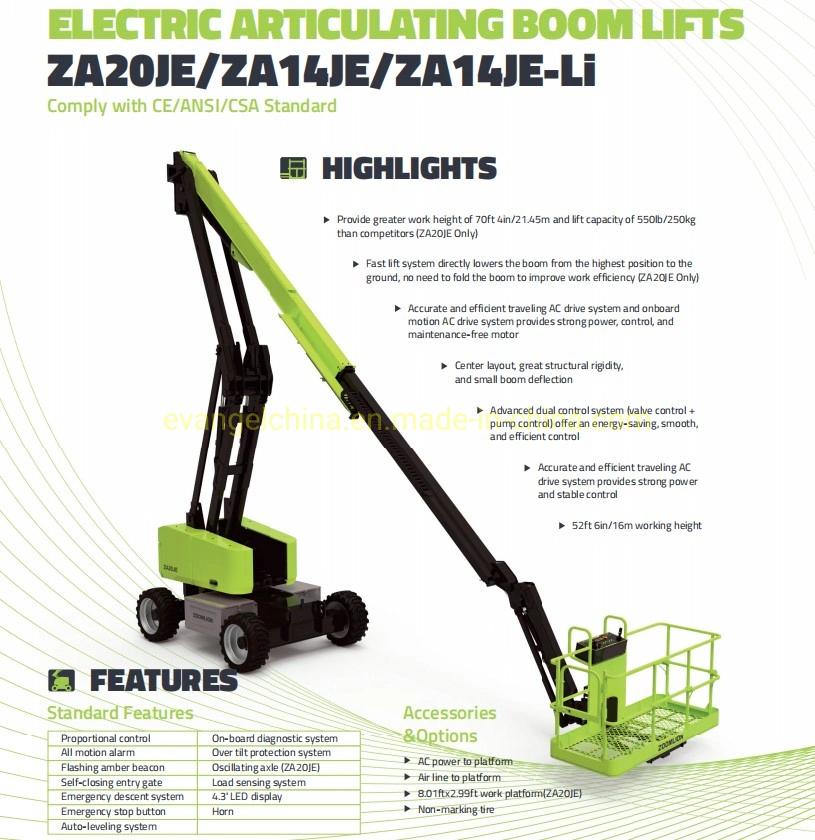

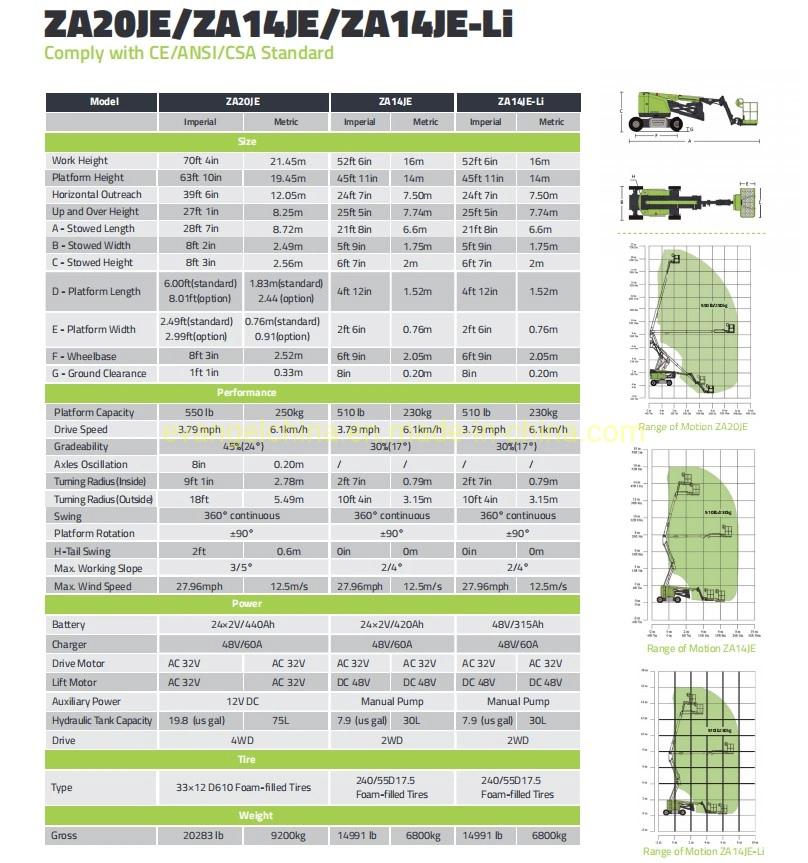

Electric Articulating Boom LiftsComply with CE/ANSI/GB StandardModel ZA20JE  SizeWork Height21.45m Platform Height19.45m Horizontal Outreach12.05m Up and Over Height8.25m A - Stowed Length8.72m B - Stowed Width2.49m C - Stowed Height2.56m D - Platform Length1.83m E - Platform Width0.76m F - Wheelbase2.52m G - Ground Clearance330mm PerformancePlatform Capacity250kg Drive Speed6.1km/h Gradeability45% Axles Oscillation200mm Turning Radius (Inside)2.78m Turning Radius (Outside)5.49m SwingPowerBattery24×2V/440Ah Charger48V/60A Drive MotorAC 32V Lift MotorAC 32V Auxiliary PowerTireType33x12 D610 Foam-filled Tires WeightGross9200kg HighlightsProvide a work height of 21.50 m and lift capacity of 250 kgFast lift system directly lowers the boom from the highest position to the ground without folding the boomAccurate and efficient traveling AC drive system and on-board motion AC drive system provide strong power,   stable control and maintenance-free motor.Independent auxiliary power system for more secure applicationsFeaturesStandard FeaturesAccessories & OptionsProportional controlAC power to platformAll motion alarmAir line to platformFlashing amber beacon2.44×0.91m work platformSelf-closing entry gateNon-marking tireEmergency descent systemPlatform work lightsEmergency stop buttonAuto-leveling systemOn-board diagnostic systemOver tilt protection systemOscillating axleLoad sensing system4.3' LED displayHorn
