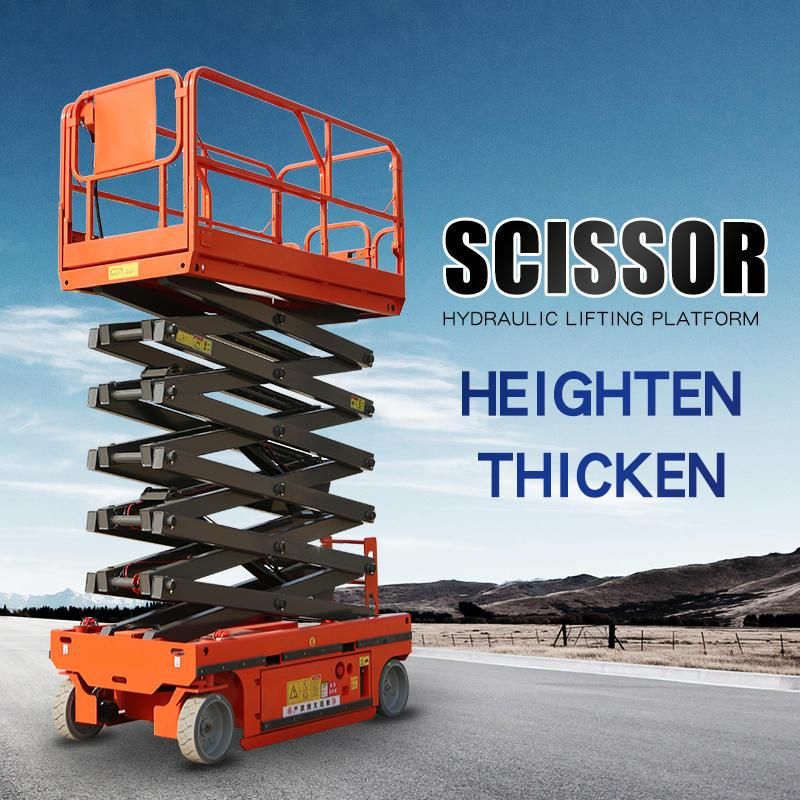

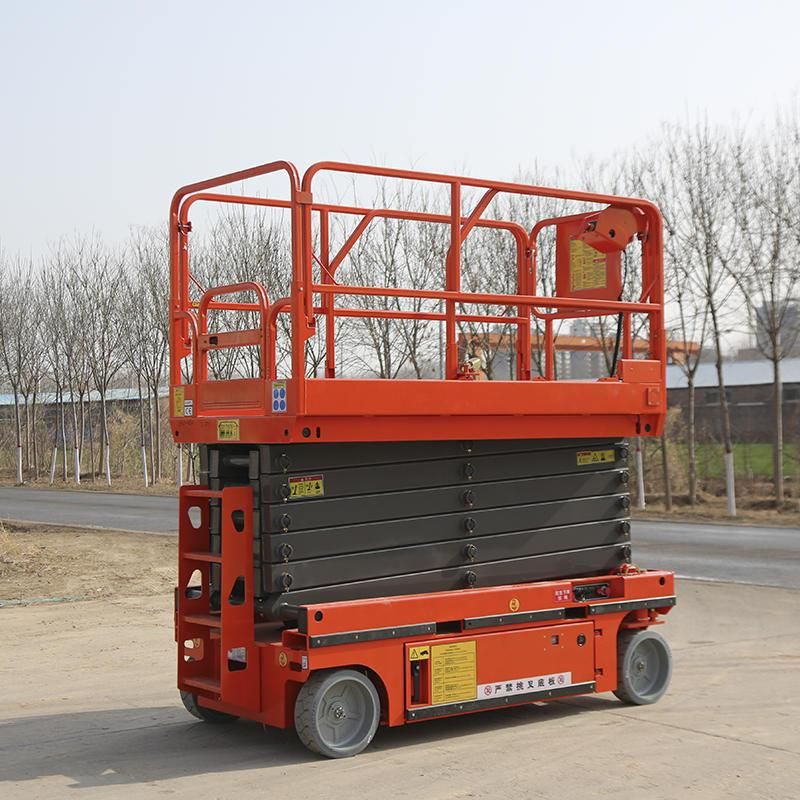

Fully Electric Self Propelled Work Platform Aerial Lift Platform Hydraulic Scissor Lift
Shandong Davoo Machinery Co., Ltd.- After-sales Service：Video Technical Support;Online Support;Free Spare
- Warranty：1 Year
- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Scissor Lift
- Carrying Capacity：Special Weight Level
- Moves：Vehicular
Base Info
- Model NO.：GTJZ12SD
- Driven Type：Hydraulic
- Running Mode：Moving
- Feature：Explosion-Proof, Insulating
- Certification：CE, ISO 9001
- Safe Working Load：320kg
- Table Excavation：0.9m
- Transport Package：Container
- Specification：2495*1187*2050mm
- Trademark：shanding
- Origin：Shandong
- HS Code：8428909090
- Production Capacity：100 Sets,Week
Description
Click here to get more informationWe are looking for agents and partners.
Model (self-hydraulic drive) GTJZ12 The maximum working height 13.80m Maximum platform height 11.80m Safe working load 320kg Extended platform safe working load 113kg Working platform size ( length ×width×height) 2.29×1.13×1.1m Overall dimensions ( length × width × height,
(The guardrail is not folded) 2495*1187*2585mm Overall dimensions ( length × width × height,
Folding guardrail) 2495*1187*2050 Table extension size 0.9m Minimum ground clearance 0.1/0.02m Wheelbase 1.89m Turning radius (inner wheel/outer wheel) 0/2.2m Lifting / driving motor 24V/4.5kw Lifting speed 3-5m/min Machine travel speed (closed state) 3.5km/h Machine speed (lifting state) 0.8km/h Accumulator 4×12V/300ah charger 24V/30A Maximum climbing ability 25% Maximum allowable angle of work 1.5°/3° tire Φ 381×127 mm Total Weight 2960kg
(The guardrail is not folded)
Folding guardrail)
