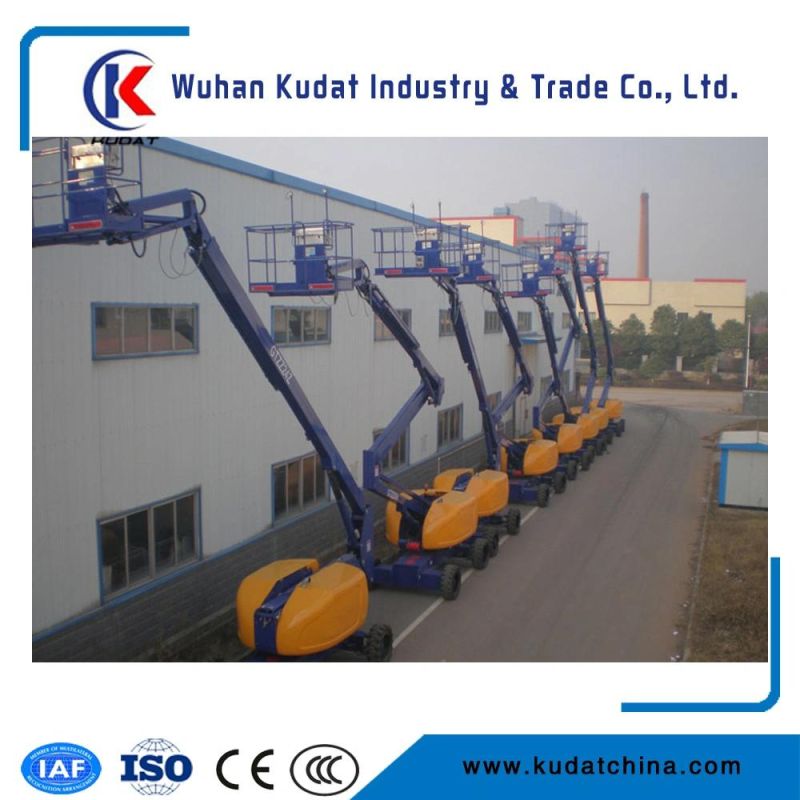

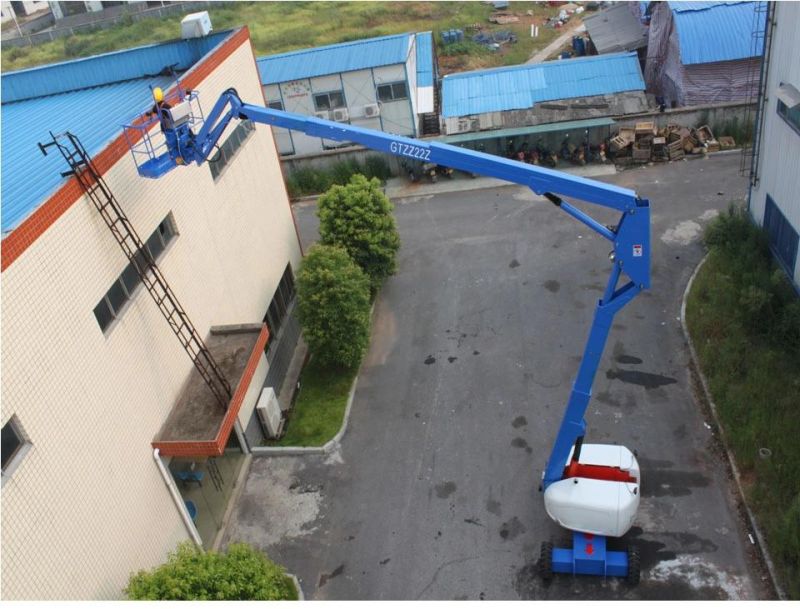

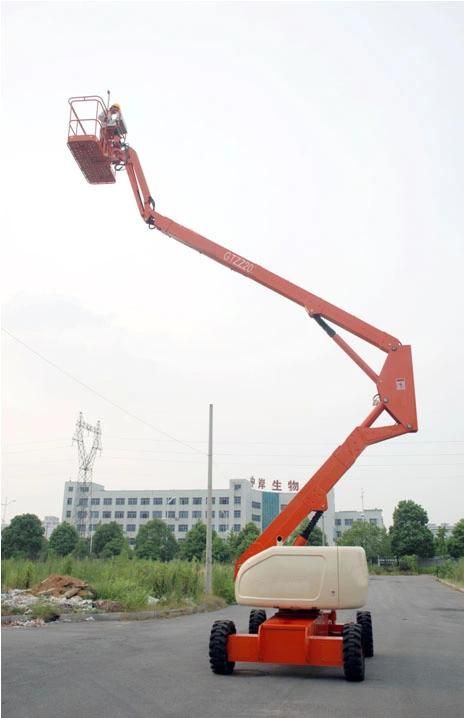

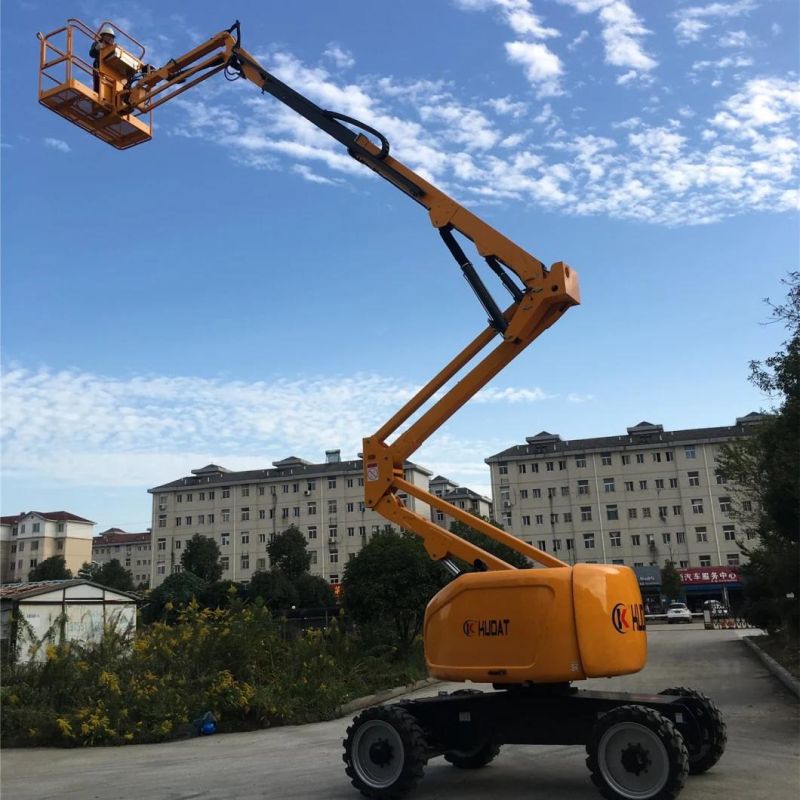

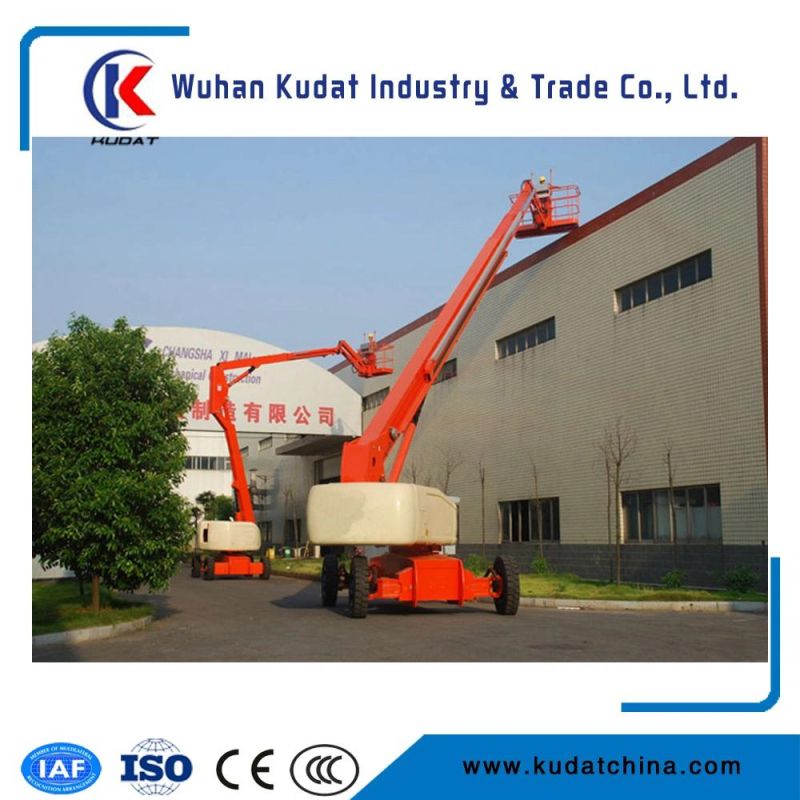

24m Articulated Boom Lift with Ce (GTZZ24Z)

Wuhan Kudat Industry & Trade Co., Ltd.
  • Application：Aerial Work Platform
  • Lift Mechanism：Articulated Lift
  • Carrying Capacity：Light Level
  • Moves：Self-propelled
  • Driven Type：Hydraulic
  • Running Mode：Aerial Work Platform

Base Info

  • Model NO.：GTZZ24Z
  • Feature：Aerial Work Platform
  • Certification：CE
  • Structure：Aerial Work Platform
  • Installation：Aerial Work Platform
  • Type of Work：Aerial Work Platform
  • Transport Package：Bulk
  • Specification：SGS CE
  • Trademark：KUDAT
  • Origin：China
  • Production Capacity：500PCS,Month

Description

MODEL                                                        GTZZ 24Z               MEASUREMENTS                            Metric                 USWorking height maximum*25.7m84ft3inPlatform height maximum24m78ft8inHorizontal reach maximum**13.6m44ft7ftAPlatform length-8ft model0.76m2ft6inBPlatform width-8ft model1.83m6ftCHeight-stowed2.82m9ft3inDLength-stowed10.7m35ftEWidth2.48m8ftFWheelbase2.6m8ft6inGGround clearance-center0.33m1ftPRODUCTIVITY                                   ()Lift capacity (restricted)230kg507lbsPlatform rotation160°Jib rotation135°Turntable Swing360°continuousTurntable tailswing0Drive speed -stowed6.3km/h3.9mphTravel speed -raised or extended1.1km/h0.68mphGradeability -stowed30%
25%Turning radius - inside      3.0m9ft10inTurning radius -outside
Turning radius - axle extendeded      outside5.2m17ftControls12V DC Proportional
12V DC ProportionalSolid tires/Foam filled33×12-20POWER                                                                                                Power sourceCummins B3.3-C60(45kw)Auxiliary power unit12V  DC
12V  DCHydraulic tank capacity250LFuel tank capacity100LWEIGHT ***                                                                                       2 2WD10450kg23037lbsSTANDARDS COMPLIANCE                   EN280JG/T5101Q/ADZV001-2008
