Lifting Equipment

500kg to 2000kg Electric Truss Chain Hoist with Control Table

Shanghai Yiying Crane Machinery Co., Ltd.
  • Application:Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
  • Type:Electric Hoist
  • Sling Type:Chain
  • Lift Speed:2~8m,min
  • Maximum Lifting Height:10m
  • Chain Falls:2

Base Info

  • Model NO.:HCH
  • Certification:CE, ISO9001:2000, TUV,SGS
  • Condition:New
  • Color:as Your Wish
  • Hoist Company:500kg to 2000kg Electric Truss Chain Hoist
  • Factory:More Than 20 Years Manufacture Experience
  • Brand Name:Hugo
  • Hoist Hook:Forged
  • Deliverity Time:About 10 Days
  • Loading Port:Shanghai Port Tianjin Port
  • Place of Original:China( Shanghai)
  • Hoist Lifting Speed:8m,Min
  • After-Sales Service Provided:Overseas Services Provided
  • Control Table:Available
  • Transport Package:Packing by Carton, Woodon Case
  • Specification:CE, ISO, TUV, SGS
  • Trademark:HUGO
  • Origin:China-Shanghai
  • HS Code:8425110000
  • Production Capacity:100000PC,Month

Description

Basic Info.

Model NO. HCH Certification CE, ISO9001:2000, TUV,SGS Condition New Color as Your Wish Hoist Company 500kg to 2000kg Electric Truss Chain Hoist Factory More Than 20 Years Manufacture Experience Brand Name Hugo Hoist Hook Forged Deliverity Time About 10 Days Loading Port Shanghai Port Tianjin Port Place of Original China( Shanghai) Hoist Lifting Speed 8m/Min After-Sales Service Provided Overseas Services Provided Control Table Available Transport Package Packing by Carton, Woodon Case Specification CE, ISO, TUV, SGS Trademark HUGO Origin China-Shanghai HS Code 8425110000 Production Capacity 100000PC/Month

Product Description

500kg to 2000kg Electric Truss Chain Hoist with Control Table500KG to 2000kg Electric Truss Chain Hoist with control table

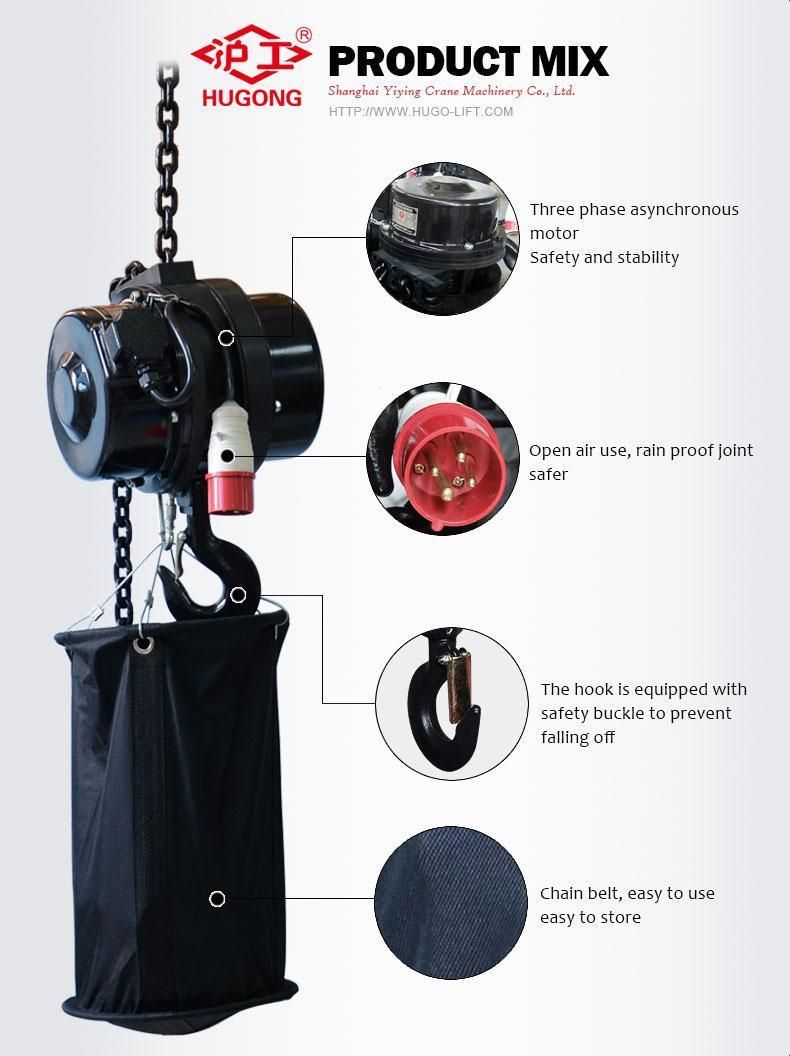

The detail information of 500KG to 2000kg Electric Truss Chain Hoist with control table


1) 2m/min for single chain
2) symmetrical structure
3) rain-proof design
4) steel-made cover
5) Friction overload protection
6)36V indirect control
7) limit switch of screw tpye
8) 100% test before assembling and loading
9) Warranty:1 Year
10) chains :G80
11)  Dual brake system -electromagnetic brake and mechanical brake.Electromagnetic brake system, using non-asbestos brake linings to reduce maintenance times greatly.
12)  Overload Protector  is available, insulation is F grade. Single use or multiple operating with one control cabinet.

Capacity(KG)ModelPower(kw)No.Of load chainLift speed(m/min)Weight of hoist without load chain(kg)Weight of Load chain(Kg/m)
500M6-W0.5A0.4214301.1
500M6-W0.5B0.8618481.1
500M6-W0.5C0.831448.51.1
1000M6-W1A1.518501.1
1000M6-W1B0.8622522.2
2000M6-W2A1.524542.2
2000M6-W2B1.5116501.1
