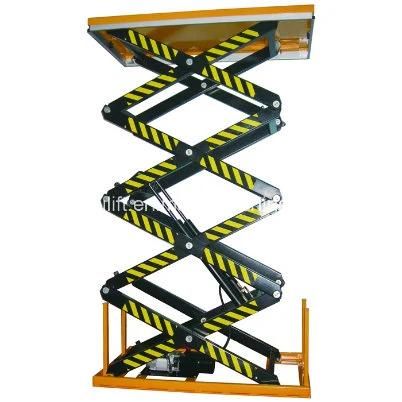

Electric Hydraulic Four Scissors Lifting Platform
Nu-Lift Equipment Co., Ltd.- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Scissor Lift
- Carrying Capacity：Middle-Level
- Moves：Stationary
- Driven Type：AC
- Running Mode：Stationary
Base Info
- Model NO.：HF400, HF800
- Feature：Lifting
- Certification：GS, CE
- Material：Steel
- Transport Package：1PC,Pallet
- Specification：CE
- Trademark：NU-LIFT
- Origin：Jiangsu, China(Mainland)
- HS Code：8427900000
- Production Capacity：1000PCS,Month
Description
Basic Info.
Model NO. HF400, HF800 Feature Lifting Certification GS, CE Material Steel Transport Package 1PC/Pallet Specification CE Trademark NU-LIFT Origin Jiangsu, China(Mainland) HS Code 8427900000 Production Capacity 1000PCS/MonthProduct Description
Heavy duty design.Conforms to En1570 and ANSI/ASME safety standard.
Safety clearance between scissors to prevent from trapping.
Installed aluminum safety bar to prevent from trapping while descending.
Built-in relied valve and compensation flow control valve to fulfill overload protection and control
Lowering speed.
There is safety valve to stop the table or keep slow descending in case of hose burst.
Self-lubricating bushing in all pivot points to prolong the lifespan.
| @ Model | HF400 | HF800 |
| Capacity (kg) | 400 | 800 |
| Min. Height(mm) | 600 | 706 |
| Max. Height(mm) | 4140 | 4210 |
| Platform size(mm) | 1700× 1000 | 1700× 1000 |
| Base size (mm) | 1600× 1000 | 1606× 1010 |
| Raising time(S) | 30-40 | 65-75 |
| Descending time(S) | 30-40 | 75-85 |
| Power Pack | AC380V, 2.2KW | AC380V, 2.2KW |
| Net weight(kg) | 548 | 858 |
