• Model NO.：LTL
• Condition：New
• Transport Package：Export Plywood Case
• Specification：ISO
• Trademark：Haolida
• Origin：Qingdao, Shandong
• HS Code：8425429000
• Production Capacity：2

Basic Info.

Model NO. LTL Condition New Transport Package Export Plywood Case Specification ISO Trademark Haolida Origin Qingdao, Shandong HS Code 8425429000 Production Capacity 2

Product Description

General Introduction

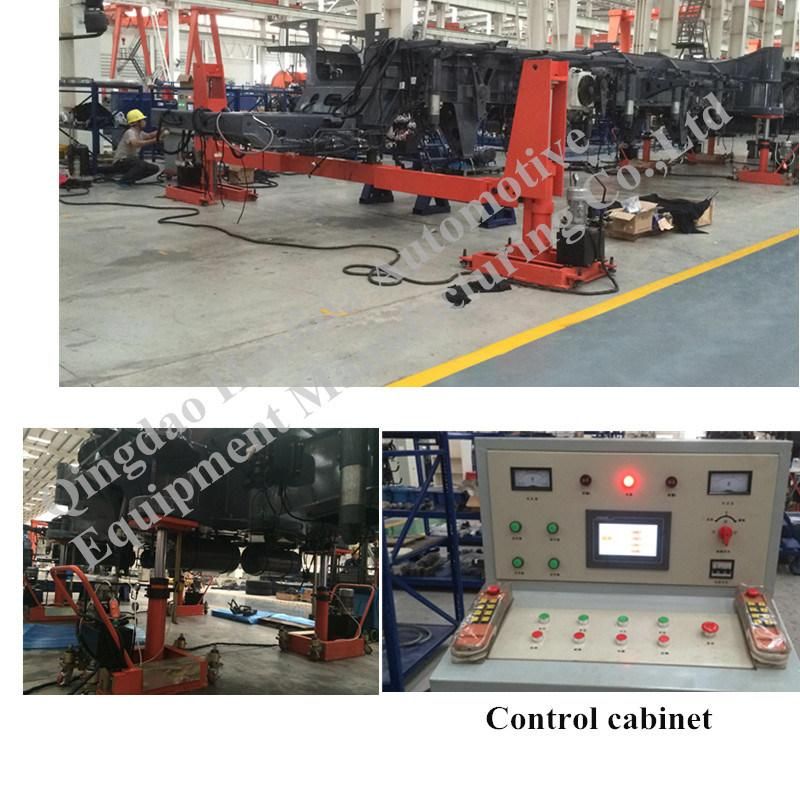

Large-tonnage Chassis Assembling Jacking System is mainly used for assembling and maintenance work of special engineering vehicle chassis. It is composed of six jacks, it can be used with 4 units together, it is controlled by a control cabinet, and can be wireless remote controlled.

Technical parameter

• Lifting force: front jacks- 400KN/group; middle, back jacks-400KN/group
• The minimum working height: front jacks-400mm; middle, back jacks-900mm
• The maximum working height: front jacks-1250mm; middle back jacks- 1550mm
• Rising speed: front, middle, back 0-350mm/min(adjustable)
• Descending speed: front, middle, back 0-750mm/min(adjustable)
• The distance between baseboard and ground when the middle and back jacks are no-load: 6-8mm
• Rated working pressure of hydraulic units: front jacks-16Mpa; middle and back jacks: 16Mpa
• Power source/frequency: 380V 50HZ
• Oil pump motor power: 2.2KW
• Working voltage of solenoid directional valve: 220V
• Limit switch voltage: 24V DC
• Signal generator voltage: 24V DC
• Effective working distance of remote control: 50M
• Remote control battery: 5#x2x1.5V
• Overall sizes( Length x Width x Height)

          Front jacks: 1200×800×1260mm (not including the front beam)
          Back jacks: 1200×630×900mm
          Control cabinet: 800×650×1400mm
