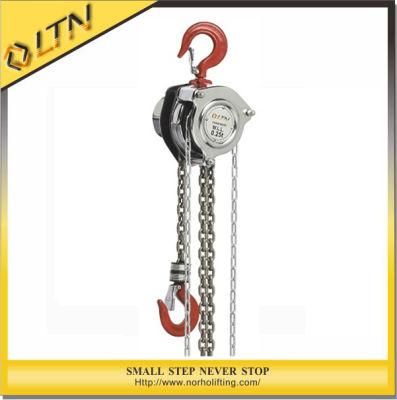

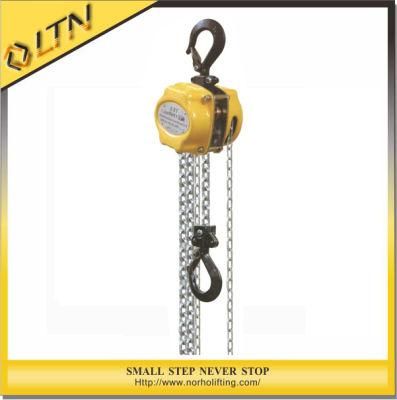

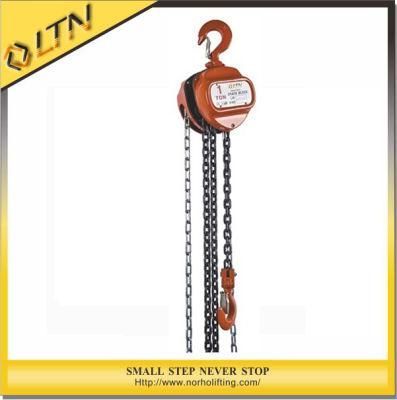

High Quality Construction Mini Hoist Cranes with CE&TUV&GS Certification
Hangzhou Nuohao Industry Co., Ltd.- Application：Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
- Type：Chain Hoist
- Sling Type：Chain
- Lift Speed：by Hand
- Maximum Lifting Height：12m
- Chain Falls：1
Base Info
- Model NO.：CH-JA
- Certification：CE, ISO9001:2000, TUV;GS
- Condition：New
- Color：Optional
- Brand：Ltn or OEM
- Transport Package：Export Standard Package
- Specification：CE; TUV; GS
- Trademark：LTN
- Origin：Zhejiang
- HS Code：84251900
- Production Capacity：10000PCS for Each Month
Description
Basic Info.
Model NO. CH-JA Certification CE, ISO9001:2000, TUV;GS Condition New Color Optional Brand Ltn or OEM Transport Package Export Standard Package Specification CE; TUV; GS Trademark LTN Origin Zhejiang HS Code 84251900 Production Capacity 10000PCS for Each MonthProduct Description
High Quality Construction Mini Hoist Cranes With CE&TUV&GS Certification1. High-quality grade 80 alloy steel and top & bottom hook.
2. Grade 80 galvanised load chain and hand chain.
3. Heavy duty bolt through design.
4. Cast steel safety latches.
5. Durable painted finish.
6. Bottom hook fitted bearing.
7. Tested under 1.25 times the working load limit. Breaking load is 4 times the working load limit.
8. Tested in accordance to EN & AS1418.2.
9. Each unit supplied with test certificate.
10. Standard chain lengths 3mtr & 6mtr with longer drops available on request.
11. Overload protection available upon request.
| Model | CH-JA005 | CH-JA010 | CH-JA015 | CH-JA020 | CH-JA030 | CH-JA050 | CH-JA100 | CH-JA200 | |
| Capacity(Ton) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | |
| Standard lift ( M ) | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 | |
| Running Test Load(Kn) | 7.5 | 15 | 22.5 | 30 | 45 | 75 | 150 | 250 | |
| Effort Required to Lift Max.Load(N) | 221 | 304 | 343 | 314 | 343 | 381 | 392 | 392 | |
| No.of falls of Load Chain | 1 | 1 | 1 | 2 | 2 | 2 | 4 | 8 | |
| Load Chain Diamter(MM) | 6 | 6 | 8 | 6 | 8 | 10 | 10 | 10 | |
| Net Weight(Kg) | 8 | 10 | 16 | 14 | 24 | 36 | 68 | 155 | |
| Extra Weight per Meter Extra Lift(Kg) | 1.7 | 1.7 | 2.3 | 2.5 | 3.7 | 5.3 | 9.7 | 19.4 | |
| Diamensions(MM) | a | 120 | 142 | 178 | 142 | 178 | 210 | 358 | 189 |
| b | 108 | 122 | 139 | 122 | 139 | 162 | 162 | 82 | |
| c | 24 | 28 | 34 | 34 | 38 | 48 | 64 | 210 | |
| e | 120 | 142 | 178 | 142 | 178 | 210 | 210 | 155 | |
| Hmin | 240 | 270 | 347 | 380 | 470 | 600 | 700 | 1000 |
