Sales Jtk Series Single Drum Mining Hoist Winch
Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.- Type：Electric Winch
- Driven Type：AC
- Speed：Slow
- Carrying Capacity：Middle-Level
- Tonnage：5T
- Reel Number：1
Base Info
- Model NO.：JTK series
- Running Mode：Moving
- Feature：Explosion-Proof
- Certification：CE
- Standard：National Standards
- Model：Jtk-1*0.8
- Drum Qty Unit：1
- Drum Diameter mm：1000
- Drum Width mm：800
- Steel Wire Rope Tension Kn：15
- The First Layer M：164
- The Third Layer M：515
- Max Diameter mm：12
- Rotate Speed R/Min：964
- Transport Package：Wooden Case or Carton Case
- Specification：2375*1970*1340 mm
- Trademark：China Coal
- Origin：Jining City, Shandong Province, China
- HS Code：8425399000
- Production Capacity：1000 Sets Per Month
Description
MMM r/min KW mm KG JTK-1*0.8 1 1000 800 15 164 332 515 12 964 37 3478*2680*1700 4268.8 JTK-0.8*0.6 1 800 600 15 / / / 14 955 22 3059*2400*1700 2618.7 JTKB-1*0.8W 1 1000 800 22 125 252 396 16 970 37 2800*2175*1400 3915.8 JTKB-0.8*0.6W 1 800 600 15 / / / 15 970 22 2250*1880*1400 2249 2JTK-1.6*0.9 2 1600 900 42 182 367 576 20 972 90 6268*3645*2000 14605 2JTK-1.2*0.8 2 1200 800 21 171 344 536 14 967 55 5409*3155*1800 8959 JTK-1.6*1.2 1 1600 1200 42 251 505 786 20 975 132 5320*3645*2000 10035 JTK-1.2*1 1 1200 1000 21 218 439 680 14 967 55 4689*3155*1800 5739

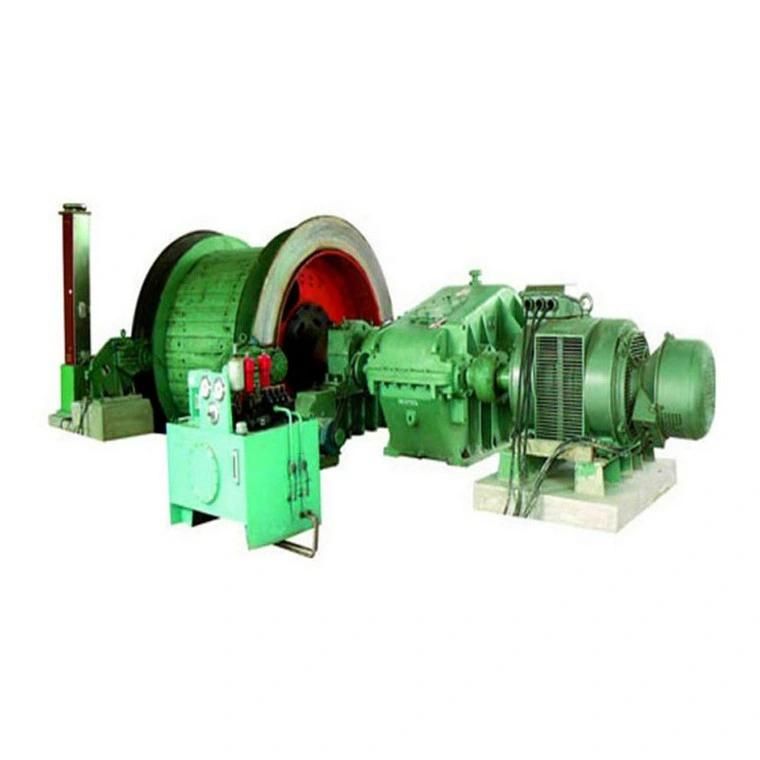

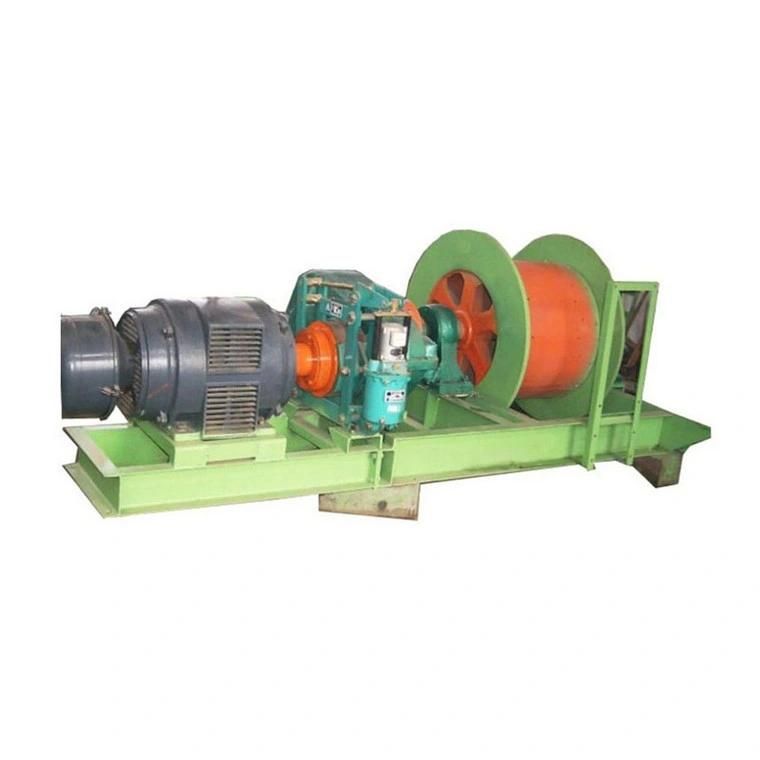

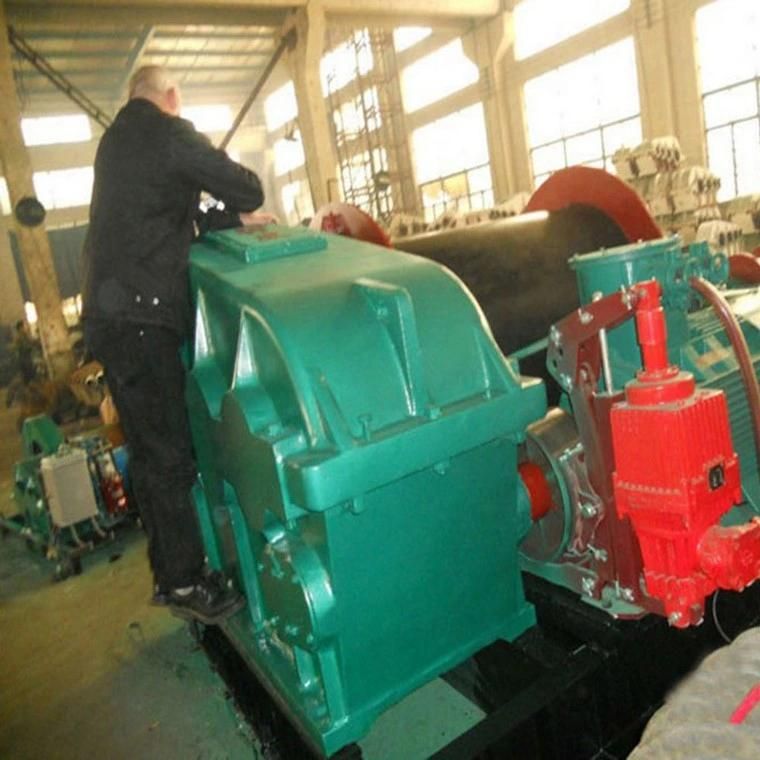

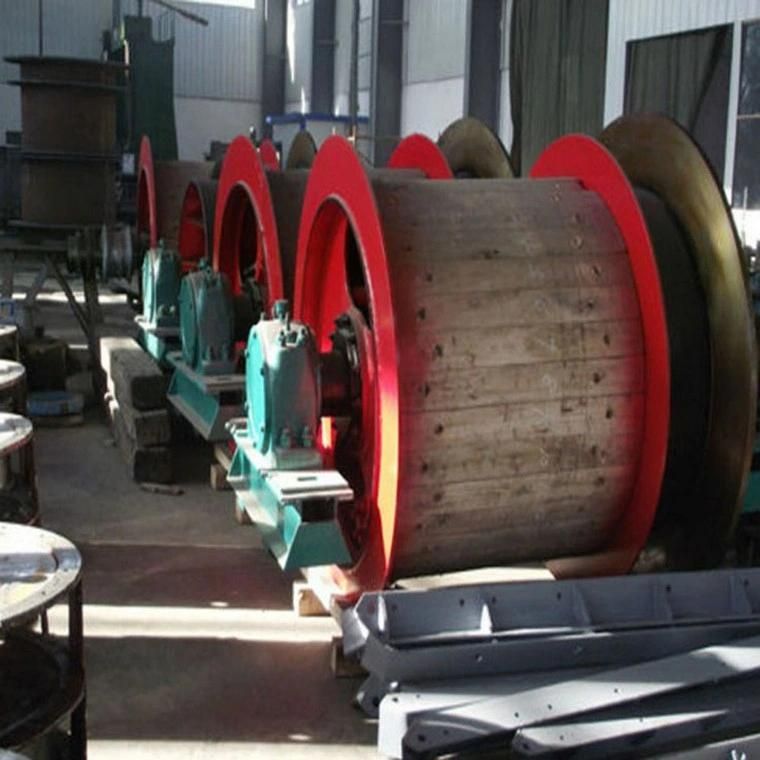

Pictures of JTK Series Single Drum Mining Hoist Winch
