• Model NO.：JK series
• Running Mode：Moving
• Feature：Explosion-Proof
• Certification：CE
• Standard：National Standards
• 0.5t to 10t Electric Hoisting Winches in：Jk0.5
• Capacity (Kn)：5
• Rated Speed (M/Min)：22
• Standard Rope Length (M)：190
• Rope Diameter (mm)：7.7
• Motor Power (Kw)：3
• Transport Package：Wooden Case or Carton Case
• Specification：22*190*77
• Trademark：China Coal
• Origin：Shandong, China
• HS Code：8425391000
• Production Capacity：1000 Sets Per Month

Basic Info.

Model NO. JK series Running Mode Moving Feature Explosion-Proof Certification CE Standard National Standards 0.5t to 10t Electric Hoisting Winches in Jk0.5 Capacity (Kn) 5 Rated Speed (M/Min) 22 Standard Rope Length (M) 190 Rope Diameter (mm) 7.7 Motor Power (Kw) 3 Transport Package Wooden Case or Carton Case Specification 22*190*77 Trademark China Coal Origin Shandong, China HS Code 8425391000 Production Capacity 1000 Sets Per Month

Product Description

 Electric Hoisting Winches, 0.5t Hoisting Winch, Winch


Introduction of 5T to 10T Electric Hoisting Winches

0.5T to 10T Electric Hoisting Winches (electric windlass), most of time, follow-operated by people on the ground, also can operate in the room, or operate with wireless type with far way, except exclusive-use, also can scratch-use with electric trolley and plain trolley, geared trolley, these trolleys with simple structure, light weight, easy to load and unload, can use like this forever, but also can be used temporarily,
Be widely used in port, workshop, warehouse, construction and many kinds producing-line, so is necessary equipment for lifting goods, raising labor efficiency, improving working conditions.

JK type high speed electric wire rope winch mainly used for materials lifting and traction the weight drops during construction. It also used for crane as main hoist; it is the special winch of derrick and gantry frame and lifting trolley. It is suitable for construction and small equipment installation of construction mine area lifting factory.

The standard capacity of electric winch: 0.5ton, 1ton, 1.6ton, 2ton, 3.2ton, 5ton, 6ton, 8ton, 10ton.
The Max rope length reach to 1500m.
The control models: Hand wheel switch or control box with push buttons or remote control.
Feature:
top quality with competitive price
widely used in mining, factory and double beam cranes.
Easy to install and high quality
compact structure and reasonable design.

Parameter of 5T to 10T Electric Hoisting Winches

Type	Capacity (KN)	Rated speed (m/min)	Standard rope length (m)	Rope diameter (mm)	Motor power (kw)
JK0.5	5	22	190	7.7	3
JK1	10	22	100	9.3	4
JK1.6	16	24	150	12.5	5.5
JK2	20	24	150	13	7.5
JK3.2	32	25	290	15.5	15
JK3.2B	32	30	250	15.5	22
JK5	50	30	300	21.5	30
JK5B	50	25	210	21.5	22
JK8	80	25	160	26	45
JK10	100	30	300	30	55

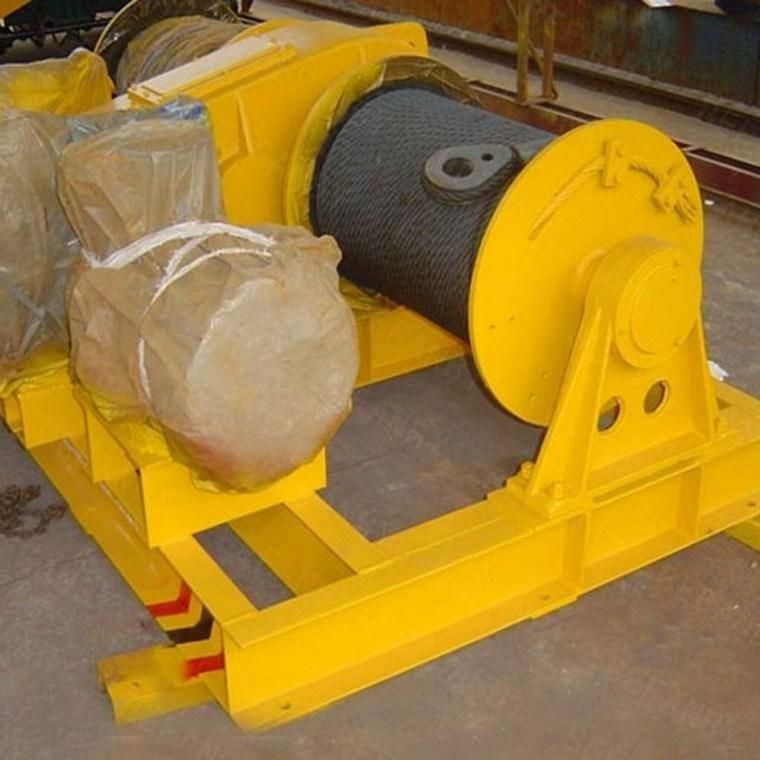

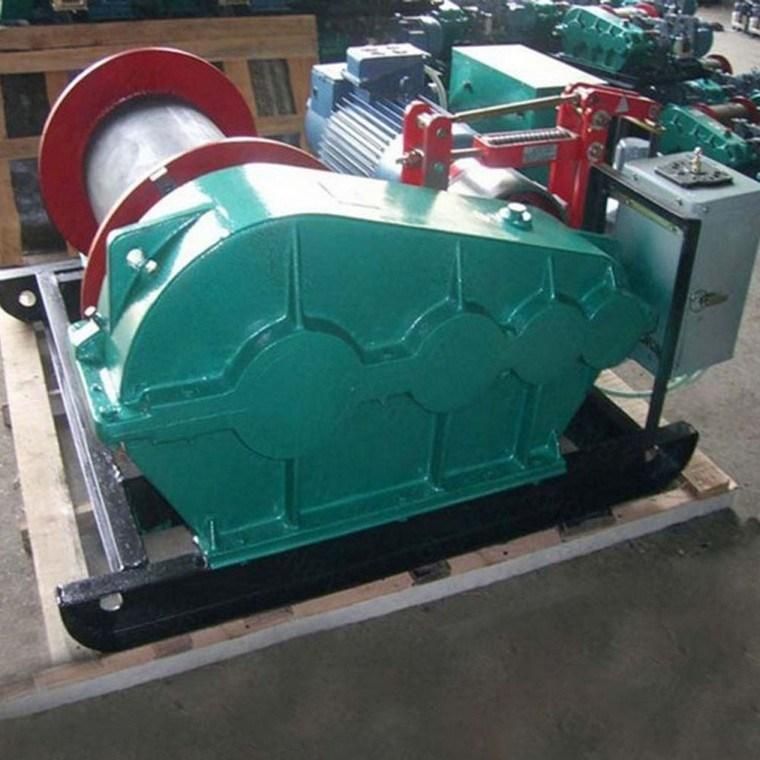

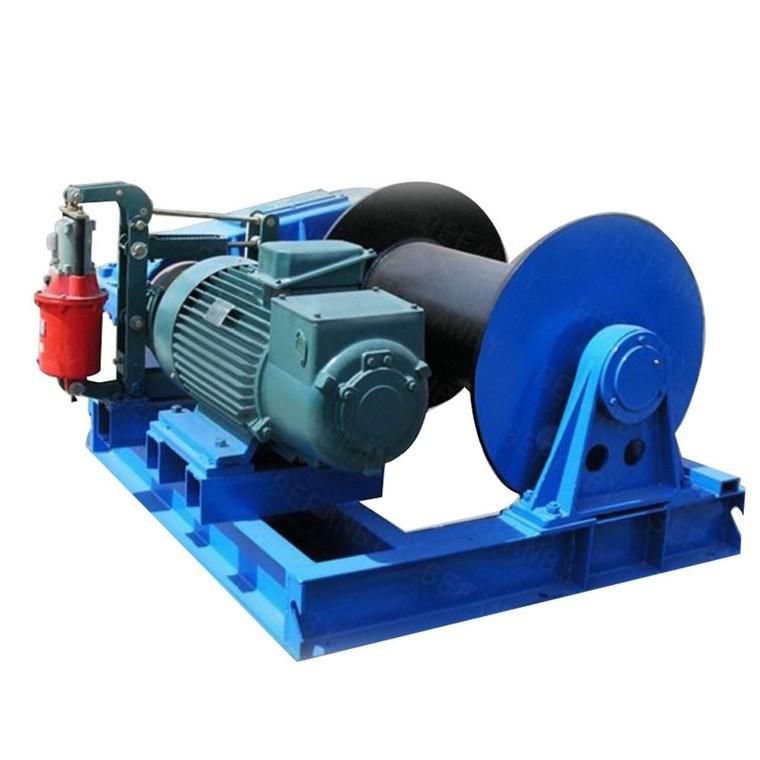

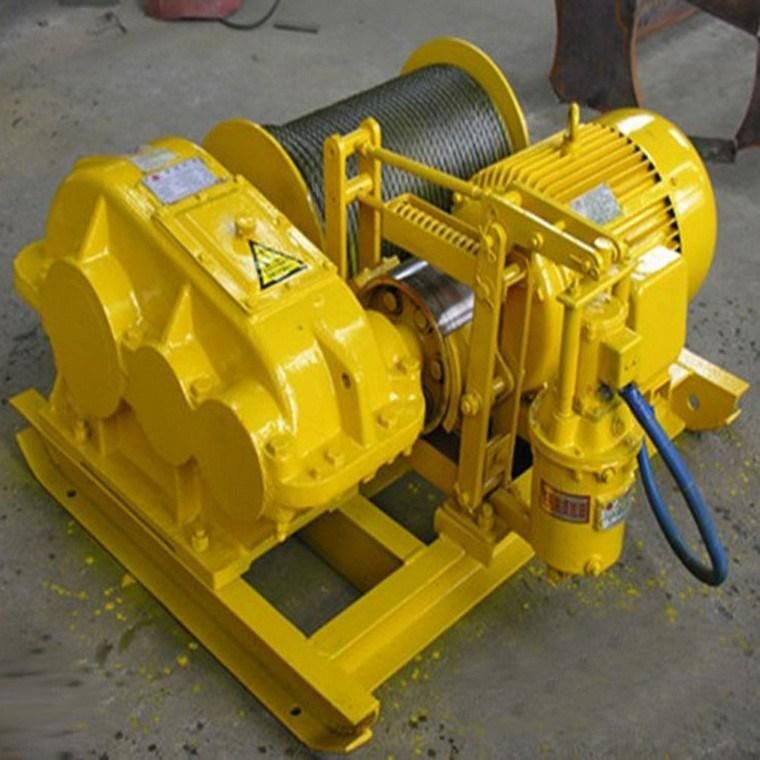

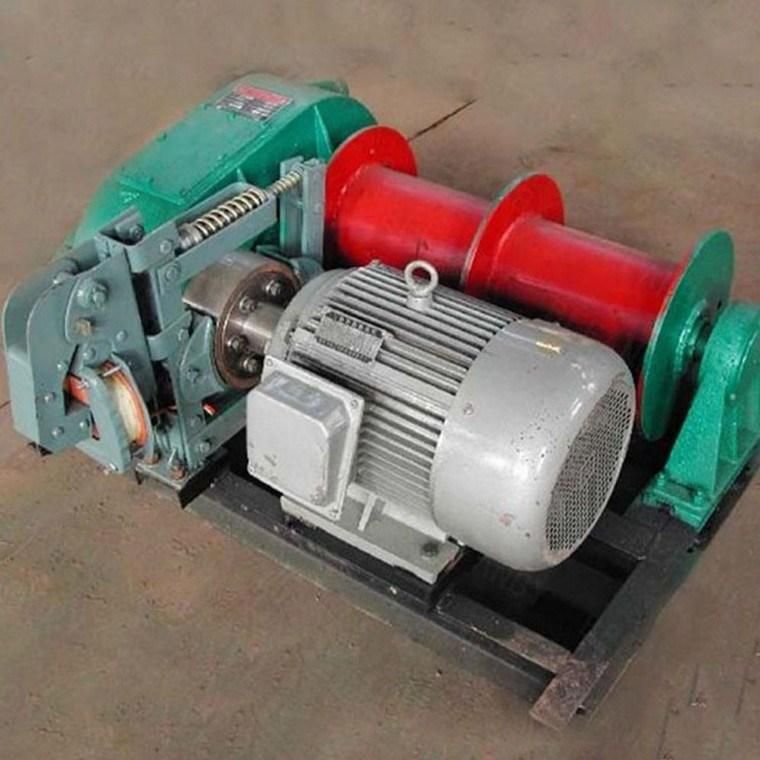

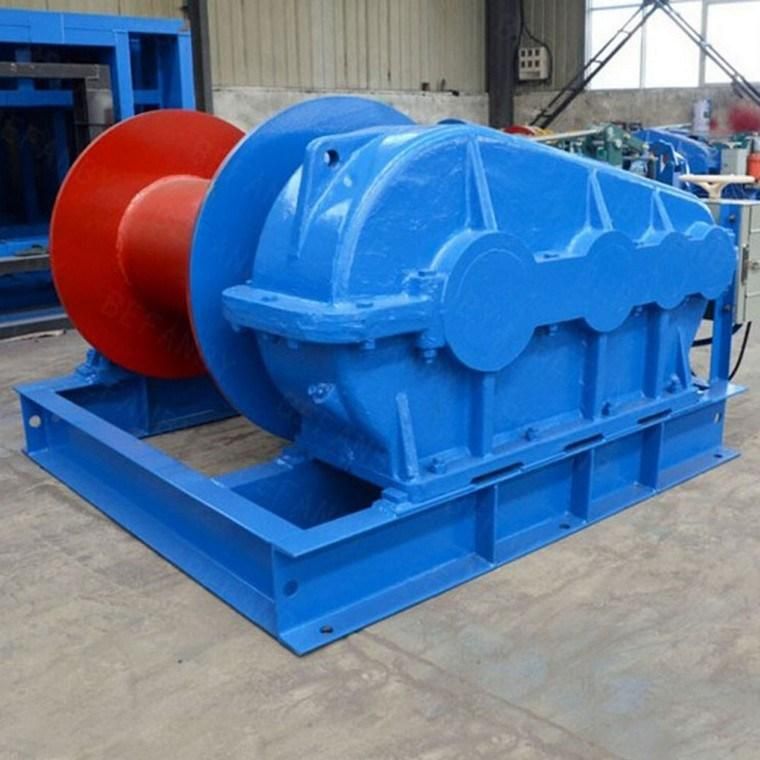

Pictures of 5T to 10T Electric Hoisting Winches
