• Model NO.：WL-T-1000G
• Driven Type：Hydraulic
• Running Mode：Moving
• Feature：Door Interlock Function
• Certification：CE
• Transport Package：Wooden Case
• Specification：1350*1150*640mm
• Trademark：xinder
• Origin：China
• HS Code：87089999
• Production Capacity：10000sets,Year

Introduction

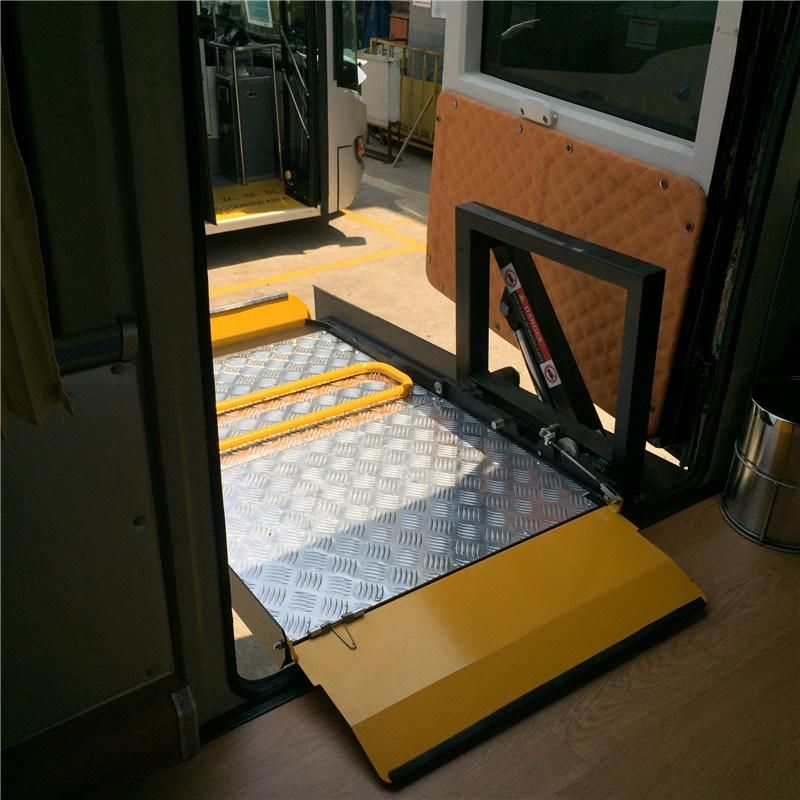

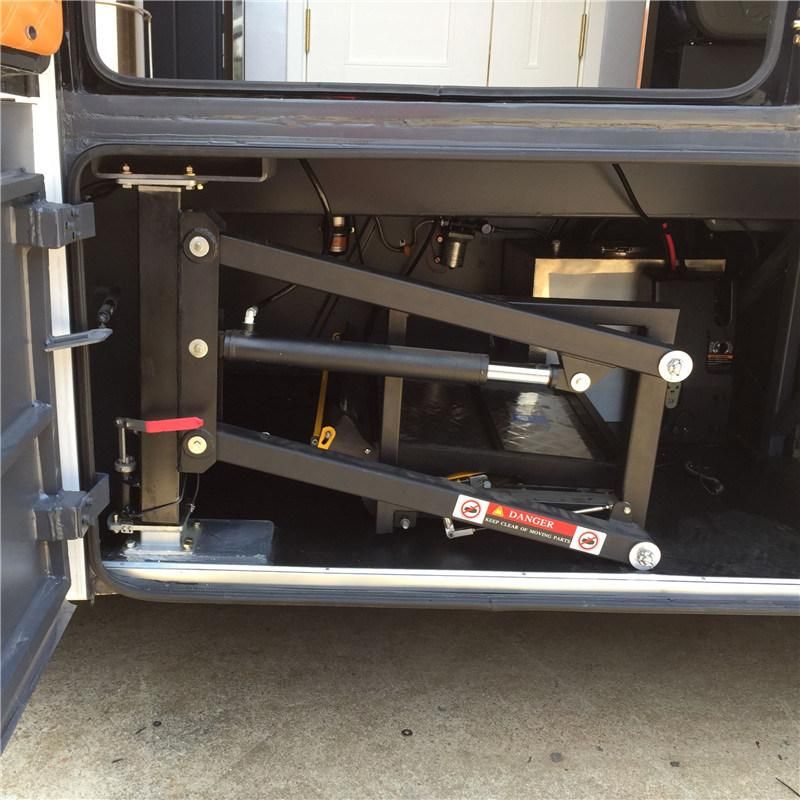

This wheelchair lift is installed in bus luggage.
It is designed to help a person to get on bus easily and comfortably while seated in a wheelchair.
It is a kind of semi-automatic wheelchair lift. Open platform manually, but movements of lifting and lowering is automatic.
Max lifting height can reach 1600mm.
Rotating direction can be clockwise or anti-clockwise.

Advantages

1.Stays out of sight and out of way when not in use;
2.Doesn't obstruct view, access and emergency exit when stowed;
3.Warning sound during working;
4.Manual backup function for emergency;
5.Door interlock function;
6.Mechanical automatic roll stops;
7.Anti-skid platform;
8.Powerful hydraulic pump ensures smooth and stable movement;
9.Side handrails to increase comfort and security;
10.Loading capacity is 350kg.

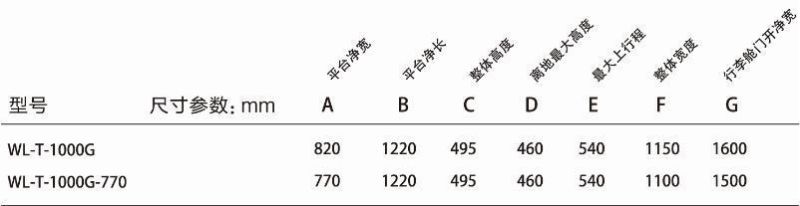

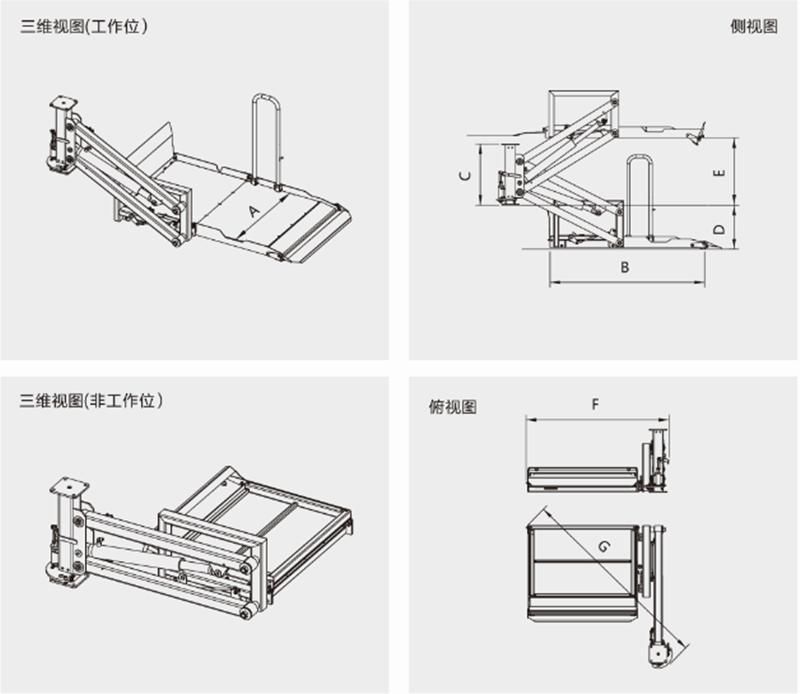

Detailed
