• Model NO.：DJ20
• Tonnage：20T
• Reel Number：1
• Running Mode：Moving
• Certification：ISO 9001
• Standard：National Standards
• Product Name：Hydraulic Winch
• Model：DJ20
• Rated Line Pull：20 Ton
• Pulling Force(1st Layer)：196 Kn
• Drum Output Torque：23130 Nm
• Rope Type：Wire Rope
• Rope Diameter：26 mm
• Rope Capacity：45 M
• Winch Weight：320 Kg (Without Rope)

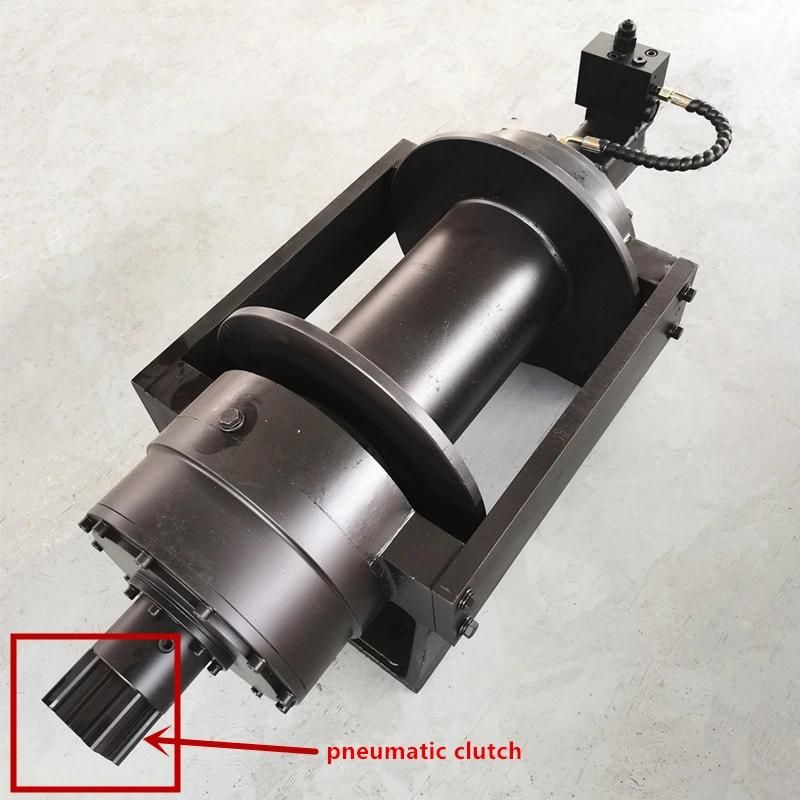

• Clutch：Pneumatic
• Rope Press：Spring or Pneumatic
• Application：Wreker, Recovery Truck, Tow Truck, Truck Crane
• OEM：Acceptable
• Hydraulic Motor：Bmt-400
• Brake Torque：760 Nm
• Transport Package：Polywood Box

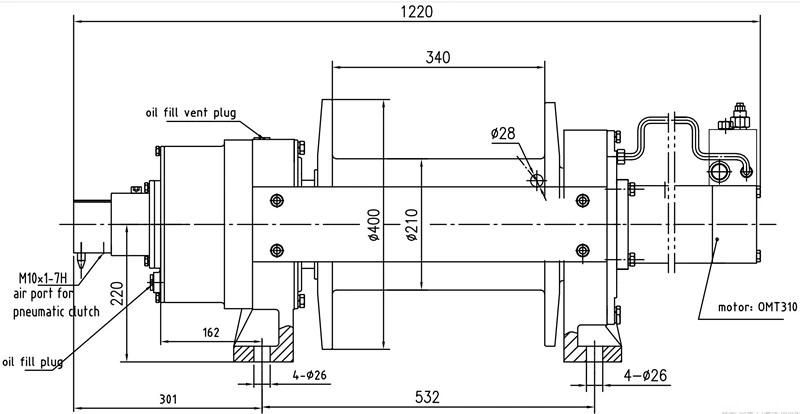

• Specification：1220*482*420 mm
• Trademark：DX
• Origin：China
• Production Capacity：10000 PCS,Year

Basic Info.

Model NO. DJ20 Tonnage 20T Reel Number 1 Running Mode Moving Certification ISO 9001 Standard National Standards Product Name Hydraulic Winch Model DJ20 Rated Line Pull 20 Ton Pulling Force(1st Layer) 196 Kn Drum Output Torque 23130 Nm Rope Type Wire Rope Rope Diameter 26 mm Rope Capacity 45 M Winch Weight 320 Kg (Without Rope) Clutch Pneumatic Rope Press Spring or Pneumatic Application Wreker, Recovery Truck, Tow Truck, Truck Crane OEM Acceptable Hydraulic Motor Bmt-400 Brake Torque 760 Nm Transport Package Polywood Box Specification 1220*482*420 mm Trademark DX Origin China Production Capacity 10000 PCS/Year

Product Description

20 ton heavy duty hydraulic capstan cable hauling winchProduct description:

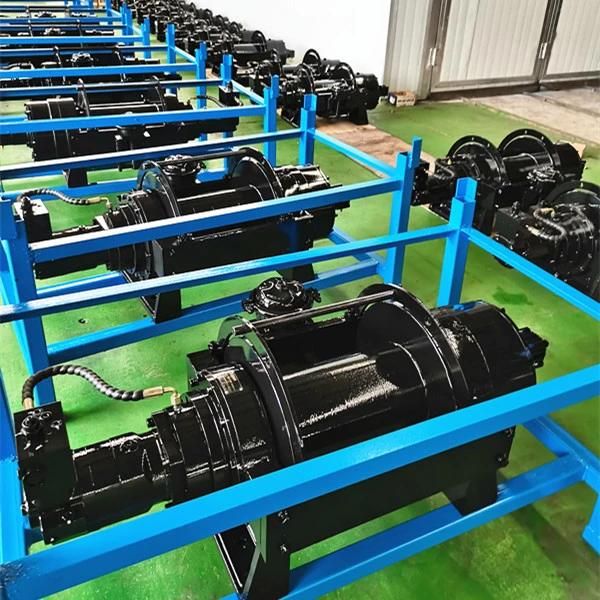

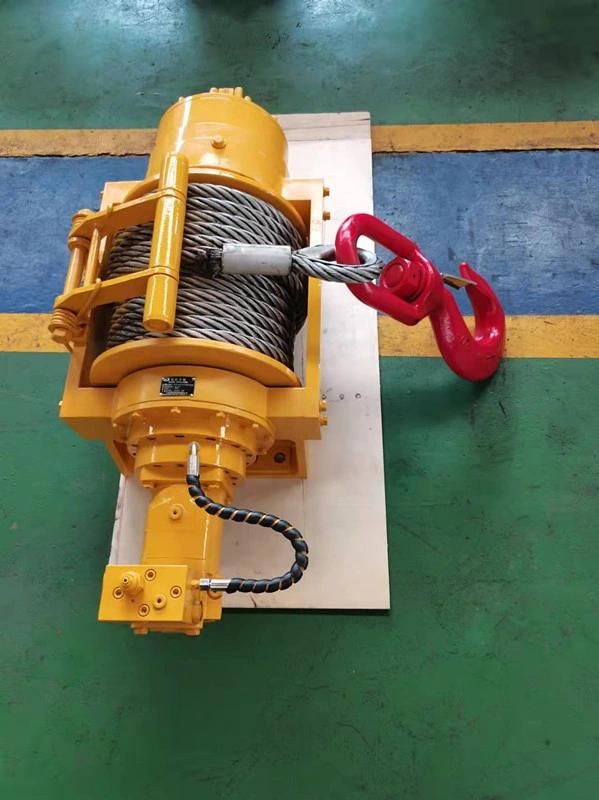

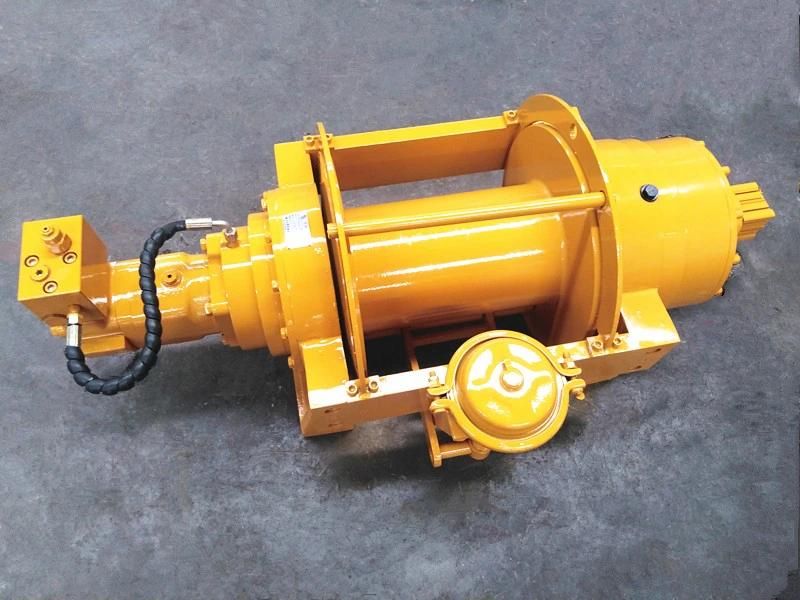

Hydraulic winch is mainly composed of hydraulic motor (low speed or high speed motor), brake, gear box, drum, support shaft, frame, rope device (optional), etc.

Our whiches can be widely used in all kinds of lifting equipment, such as railway locomotive and truck crane, ship, oil field drilling, coal mine, port, small engineering machinery and so on.

 Product features:
 1.Compact size
2.Low noise
3.High start-up and working efficiency
4.Easy installation, operation and maintenance
5.Various models for wide applications
6.One year warranty
7.Free components for replacement within warranty period
8.Professional and tailored solution for different requirements
9.Free technical support at any time
10.Customer training is available.  Packing and delivery details:

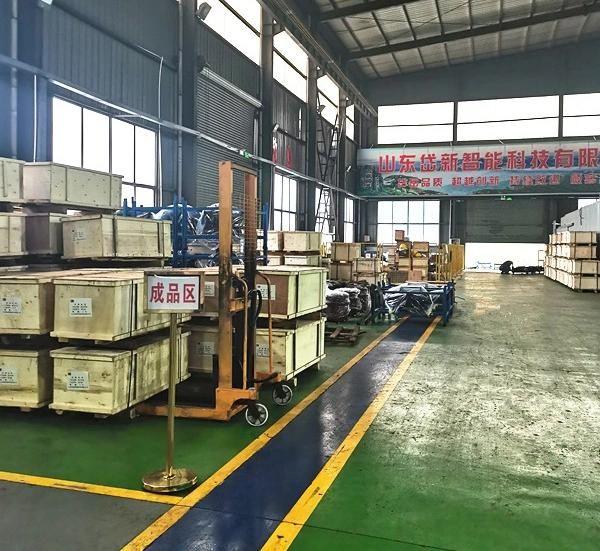

Packing method: plywood box (1 pc / box)

Delivery: 39 pcs / 20GP; 84 pcs / 40GP; 112 pcs / 40HQ
    Company details:

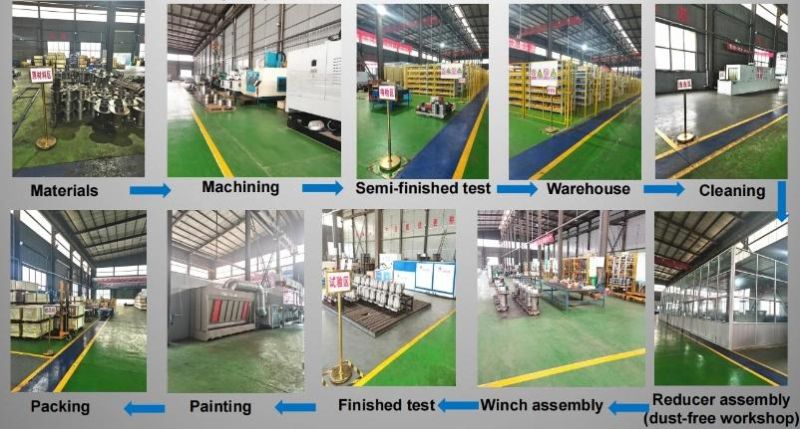

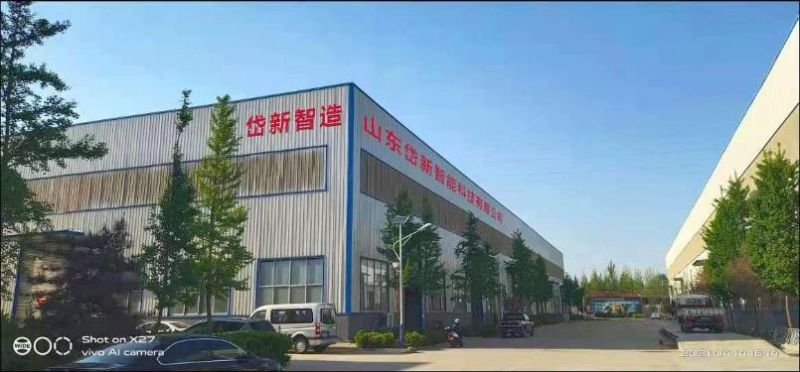

Shandong Daixin Intelligent Technology Co., Ltd is a scientific and technological enterprise engaged in the research, development and production of planetary gear transmission products, like slewing reducers, Travel drive reducers, lifting winch reducers, hydraulic winches, etc.

The company has always put quality management as the top priority of the company's development. The products are manufactured not only meet the international ISO 4301 and ISO9001 standards, but also meet the US SAE J706 and the European Union CE standards.

Daixin Intelligent Technology relies on quality, reputation and service to develop, cultivate and consolidate the national and global markets. Be our partners and be our friends.
    Our clients:

The company relies on quality, reputation and service to develop, cultivate and consolidate the national and global markets.

Currently, the cooperative customers include: the famous construction machinery manufacturers Zoomlion, the largest wrecker manufacturer Guangdong Yuehai Company, and the largest high-altitude vehicle manufacturer Xuzhou Handler Company.

Products are also exported to Russia, Belarus, Spain, UK, Canada, Australia, India, Malaysia and other countries.
     FAQ:

1.How to choose the product which meets our requirement?
A) Look through our shop, find a proper item, send me an inquiry, I quote details for you.
B) In case no suitable item in our shop, send me an inquiry with your requirements, we can customize for you.

2.What is payment term?
A) For regular design: 30% deposit, the balance before loading.
B) For customized design: 50% deposit, the balance before loading.
Payment term is negotiable according to order.

3.What is delivery time?
A) For common models in stock, delivery time are 5-7 days.
B) For customized models and new production, delivery time are 30-40 days.

5.How about after-sale service?
A) Within warranty, all spare parts are delivered for free.
B) Exceed warranty, all spare parts are offered with the lowest production cost.
Warranty period is one year, but our servicing is for the whole lifetime of product, so no worry for reselling and personal resell.

 Thank you for the time. For any question or requirements, please contact me :-)
