• Model NO.：MK600(SJY0.5-6)
• Driven Type：Hydraulic
• Running Mode：Moving
• Certification：CE, ISO 9001
• Platform Height：6 M
• Working Height：8 M
• Load Capacity：500 Kg
• Motor Power：1.5kw
• Platform Size：1.85*0.88m
• Lifting Time：54s
• Transport Package：Wrapped with Film, Packed in a Pallet, Wooden Case
• Specification：1.95*1.08*1.28m
• Trademark：CHEN LIFT
• Origin：China
• HS Code：8428909090
• Production Capacity：3000 Units Per Year

Basic Info.

Model NO. MK600(SJY0.5-6) Driven Type Hydraulic Running Mode Moving Certification CE, ISO 9001 Platform Height 6 M Working Height 8 M Load Capacity 500 Kg Motor Power 1.5kw Platform Size 1.85*0.88m Lifting Time 54s Transport Package Wrapped with Film, Packed in a Pallet/ Wooden Case Specification 1.95*1.08*1.28m Trademark CHEN LIFT Origin China HS Code 8428909090 Production Capacity 3000 Units Per Year

Product Description

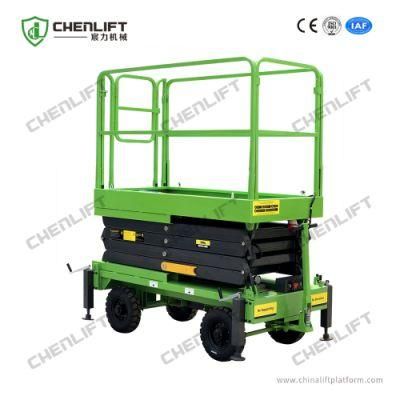

Manual Pushing Scissor Lift
Product Description
Manual Pushing Scissor Lift is a scissor structure man lift for aerial work which can be towed by man power.
It is for one or two persons aerial working purpose.
The maximum platform height is 3m,6m,7.5m,9m,11m,12m,14m,16m.
And the maximum loading capacity is 300Kg, 500Kg, 1000Kg.
The mechanical structure make the platform stability, wide operating and high loading capacity.
Normal scissor lift lifting power is AC power, DC and both AC&DC power are also available for option.

Scissor lift platform is easily operated by the control box both on the platform and ground. The supporting legs can guarantee the stability of the lift. More safety for workers working on the platform with the guardrail. Besides the AC power, you also can add motorized device for assist walking.

Application for Scissor Lift
Scissor lift platform can be used in the factory, warehouse, public places , stations and so on.
It provides you a good choice for aerial working.

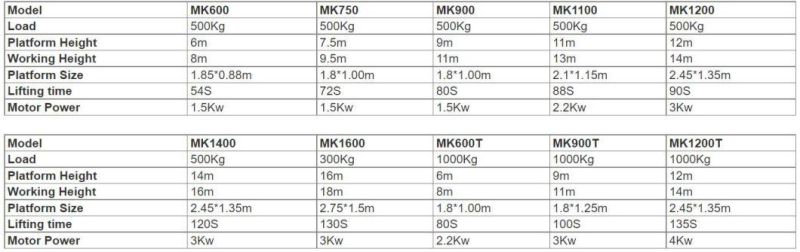

Model List
Standard Configuration for Manual Pushing Around Scissor Lift

1. AC power : 220V 50Hz/60Hz, single phase or 380V 50Hz/60Hz, three phases
2. Rain-proof electric cabinet
3. Beacon light
4. Inflated Tyre
5. Forklift slot
6. Towing hook
7. Chinese domestic brand hydraulic power pack
8. Pressure gauge
9. Auxiliary release valve
10. Level gauge
11. Emergency stop button both on platform and ground
12. Key lock power switch
13. Lockable stabilizer
14. Anti-skid floor on platform with removable handrails
15. Toe protection boards on the platform
16. Operation voltage at 24V
17. Ladders for access to the stowed platform (Ladder for easy accessibility)
18. Limit switch provided for top motor shut off
19. Removable control box on platform
20. Interlock doors on platform
21. Detachable/Foldable Fence
22. Powder coating painting
23. Spring mounted handles
24. Nylon bush assembled in between each scissor
25. Short Circuit and leakage protection system

 Optional Configuration for Manual Pushing Around Scissor Lift

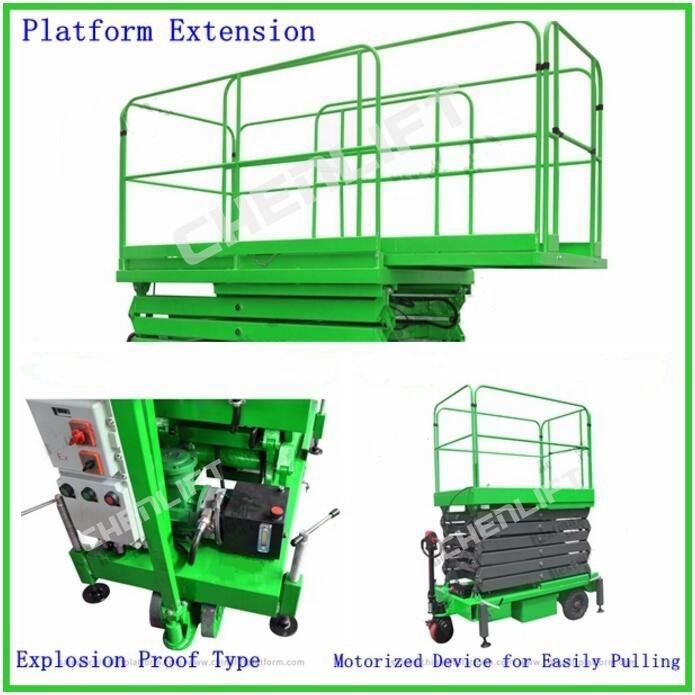

1. Platform extension
2. Overloading protection
3. DC power supply
4. Battery Indicator for DC power
5. Hour meter for DC power
6. AC&DC power supply
7. Motorized device for easily pulling
8. Horn available for motorized device
9. Explosion proof type
10. Maintenance supporting bar
11. Solid Tyre
12. Overseas brand hydraulic power pack
13. Outrigger sensor
14. Horn on the platform
15. AC power to the platform
16. Platform working light
17. Anti-burst valve on cylinder

Clients & Exhibition


Other Related Products


Our Service
1. We can design the customized the machines based on your requirement.
2. After knowing your detailed need, the right models will be recommened to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Opetion video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.
