• Model NO.：MG900-2S
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Weight：1350kg
• Capacity：150kg
• Working Height：11m
• Transport Package：PVC Film
• Specification：1.55*1.0*2.09m
• Trademark：CHEN LIFT
• Origin：China
• HS Code：8428909090
• Production Capacity：3000 Piece,Year

Basic Info.

Model NO. MG900-2S Feature Explosion-Proof Certification CE, ISO 9001 Weight 1350kg Capacity 150kg Working Height 11m Transport Package PVC Film Specification 1.55*1.0*2.09m Trademark CHEN LIFT Origin China HS Code 8428909090 Production Capacity 3000 Piece/Year

Product Description

Company Introduction

CHENLIFT (SUZHOU) MACHINERY CO., LTD.

1. Located at Suzhou City Jiangsu Province(we are the largest manufacturer in this line in Jiangsu)
2. Founded in 2001
3. A standardized modern factory of 11,000 square meters
4. Professional organization in manufacturing, sales, services and refurbishment of hydraulic lifting machinery and aerial working platform
5. Established distributor relationship with customers from over 30 countries and regions in Southeast Asia, Middle East, South America, Europe and Africa

Our belief is to produce the high quality and safety machines to our customers, and provide the high efficiency services.
Many tenacity workers, we, from different places to meet in Bestmax and  group into an active team, through our effort, to maximum at everything.

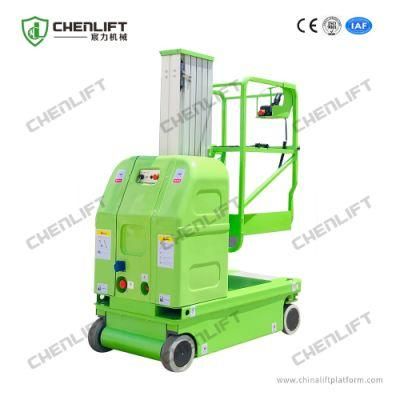

Self-Propelled Economical Vertical Lift

1.Self propelled vertical lift ,with automatic walking function, can be in different work condition, do not need external power supply, do not need artificial traction.

2. Mobile flexible, convenient operation, lift freely, only one people can finish forward, backward, steering, fast and slow walk ,easily moved, spacious working platforms, high working efficiency.

3. Seamless transferring is used between the masts to make the degree of swing become the smallest when the masts have been lifted up..

4. The whole work platform is light as the lifting mast is made of aluminum alloy. The structure of the machine is compact and its volume is small, making the platform can readily pass through narrow passageway.

Specification

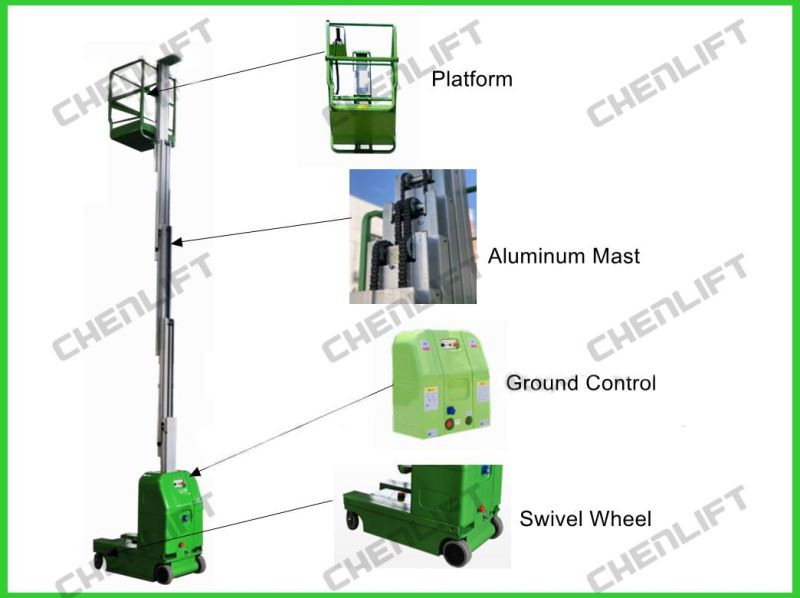

Swivel Turning Type

Model	MG600-1	MG750-1	MG750-2	MG900-2
Load	125 kg	125 kg	200 kg	150 kg
Extension Load(Optional)	100 kg	100 kg	100 kg	100 kg
Platform Height	6 m	7.5 m	7.5 m	9 m
Working Height	8 m	9.5 m	9.5 m	11 m
Platform Size	0.78*0.70m	0.78*0.70m	1.00*0.70m	1.00*0.70m
Platform Extension Length	0.45 m	0.45 m	0.45 m	0.45 m
Lift/Drive Motor	24v/2.0kw	24v/2.0kw	24v/2.0kw	24v/2.0kw

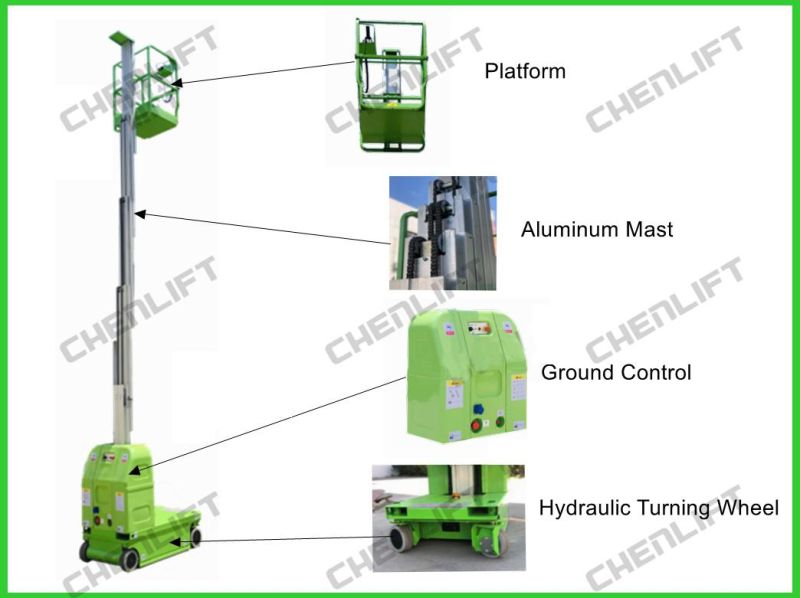

 Hydraulic Turning Type

Model	MG600-1	MG750-1	MG750-2	MG900-2
Load	125 kg	125 kg	200 kg	150 kg
Extension Load(Optional)	100 kg	100 kg	100 kg	100 kg
Platform Height	6 m	7.5 m	7.5 m	9 m
Working Height	8 m	9.5 m	9.5 m	11 m
Platform Size	0.78*0.70m	0.78*0.70m	1.00*0.70m	1.00*0.70m
Platform Extension Length	0.45 m	0.45 m	0.45 m	0.45 m
Lift/Drive Motor	24v/2.0kw	24v/2.0kw	24v/2.0kw	24v/2.0kw

Details





Safety Precaution

1. Emergency stop button
2. Auxiliary Lowering Device
3. Pothole Protection
4. Tilting level sensor with alarm
5. Flashing beacon
6. Automatic braking system-back wheel
7. Charing protecting system
8. Safety distance protection during loweing-anti collision hand
9. Anti-burst valve
10. Cylinder holding valve
11. Toe Protection Board
12. Drive speed interlock limits speed while elevated

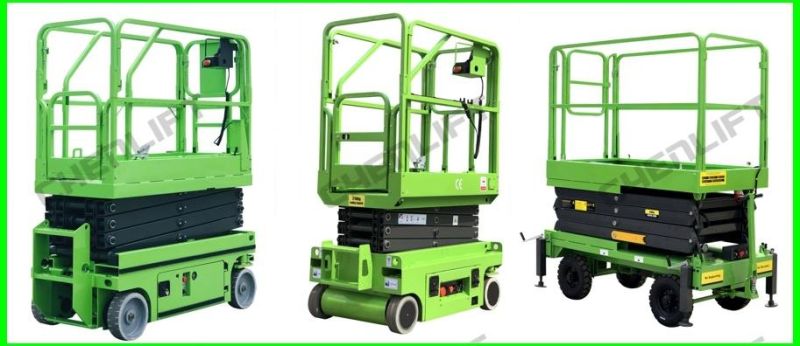

Other products






Factory Equipment



Client &Exhibition


Our Service

1. We can design the customized the machines based on your requirement.
2. After knowing your detailed need, the right models will be recommened to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Opetion video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.
