• Model NO.：HCH
• Certification：CE, ISO9001:2000
• Condition：New
• Color：Blue
• Product：1ton Electric Chain Stage Hoist with Fixed
• Application of Electric Hoist：Stage Hoist Lifting Equipment
• Usage：Event Electric Hoist
• Volt of Electric Hoist：380V
• Capacity：1ton,2ton,3ton
• Advantage：Rain Proof
• Lifting Height of Electric Hoist：6m-12m
• Other Use：Construction Hoist
• Material：Steel
• Key Words：Construction Hoist
• Transport Package：Package of Hoist Lifting Equipment: Wood Box
• Specification：usage: hoist lifting
• Trademark：HUGO
• Origin：China
• HS Code：8456123
• Production Capacity：100pieces,Day

Basic Info.

Model NO. HCH Certification CE, ISO9001:2000 Condition New Color Blue Product 1ton Electric Chain Stage Hoist with Fixed Application of Electric Hoist Stage Hoist Lifting Equipment Usage Event Electric Hoist Volt of Electric Hoist 380V Capacity 1ton,2ton,3ton Advantage Rain Proof Lifting Height of Electric Hoist 6m-12m Other Use Construction Hoist Material Steel Key Words Construction Hoist Transport Package Package of Hoist Lifting Equipment: Wood Box Specification usage: hoist lifting Trademark HUGO Origin China HS Code 8456123 Production Capacity 100pieces/Day

Product Description

1ton electric chain stage hoist with fixed



Specification for the electric stage hoist

Capacity(KG)	Model	Power(kw)	No. of load chain	Lift speed(m/min)	Weight of hoist without load chain(kg)	Weight of Load chain(Kg/m)
500	M6-W0.5A	0.42	1	4	30	1.1
500	M6-W0.5B	0.86	1	8	48	1.1
500	M6-W0.5C	0.83	1	4	48.5	1.1
1000	M6-W1A	1.5	1	8	50	1.1
1000	M6-W1B	0.86	2	2	52	2.2
2000	M6-W2A	1.5	2	4	54	2.2
2000	M6-W2B	1.5	1	16	50	1.1

Parameters of 1ton electric chain stage hoist with fixed

1.Introduction of Best Price 0.5ton Electric Stage Chain Hoist

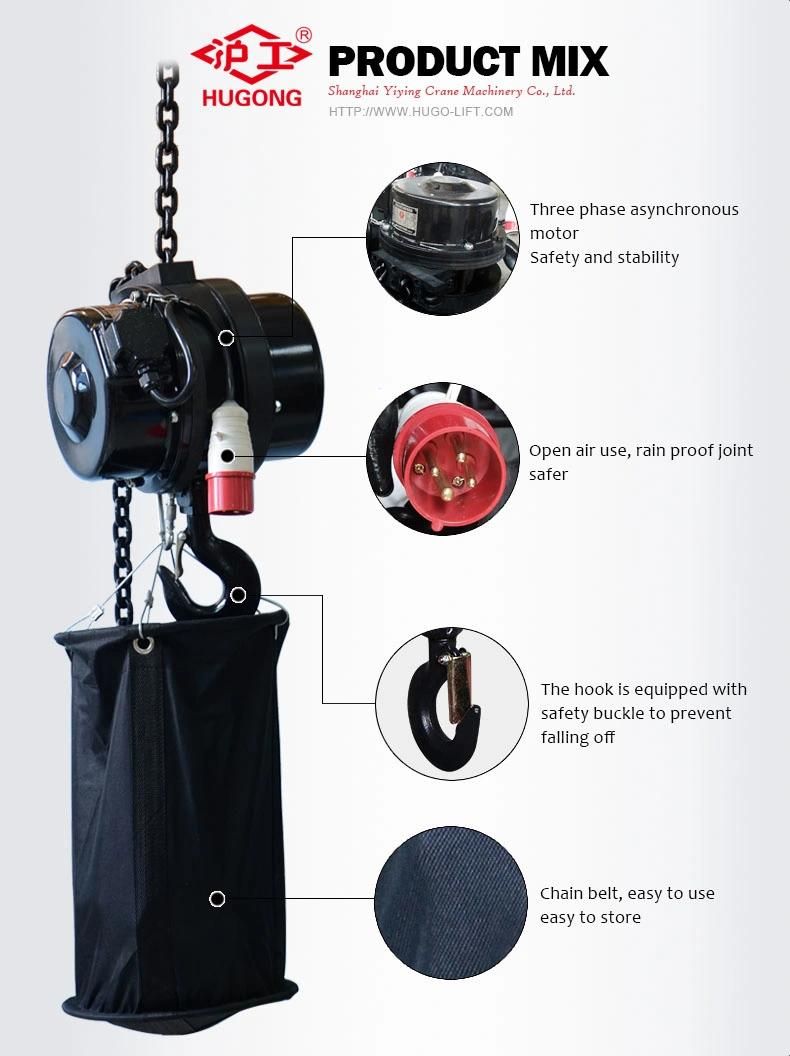

Advantages of electric stage chain hoist:
1.Reducer: adopt third-class dead axel helical gear transmission structure gear and geaaxel are made of heat treated alloy steel
2.Button Switch: easy to operate, safey for operator, both remote control and pendant control are available.
3.Motor: three-phase asynchronous induction motor, durable and powerful. Insulation grade is F.
4.Protection grade: IP54, work grade: M3
5.Over load limit is available. Hook is widen and thicken
6. Power-Off protection, Emergency stop system.



Application of electric stage hoist:

7. Hoist Crane Price can travel rotation through the trolley hanging on the I-steel,and install on the single beam crane,gantry crane,jib crane and overhead crane to rise and fall the cargos. So it can be used in factories, mines, wharf, warehouse,freightyards,and shops and so on which need lifting equipment for lifting heavy objects.

Safety Features of lifting equipment :

8. Fire stopper:Adjustable mechanical memory structure,high sensitivity
Weight limiting stopper:preventing hook clashing the top, sensitive reaction. Safe and durable, easy to install and debug
Overload limiter:Preset related data according working condition,show accurate weight;value clearly .Modular,low power design

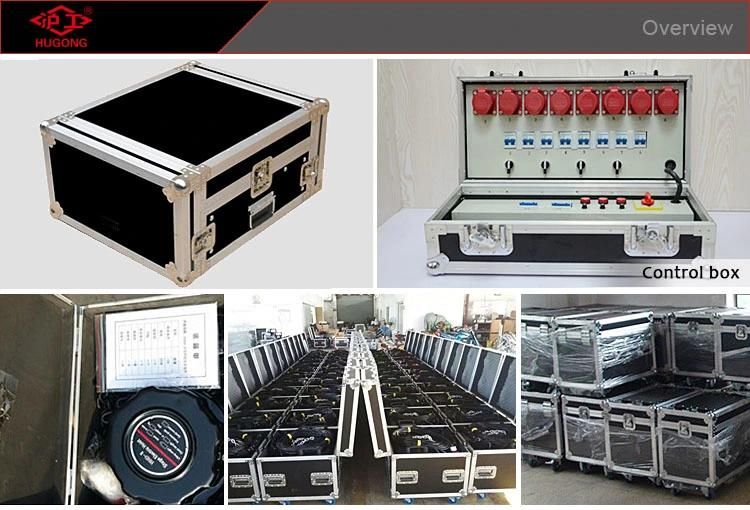

Packing box of Hot sale 1 ton crane hoist electric chain hoist lifting equipment

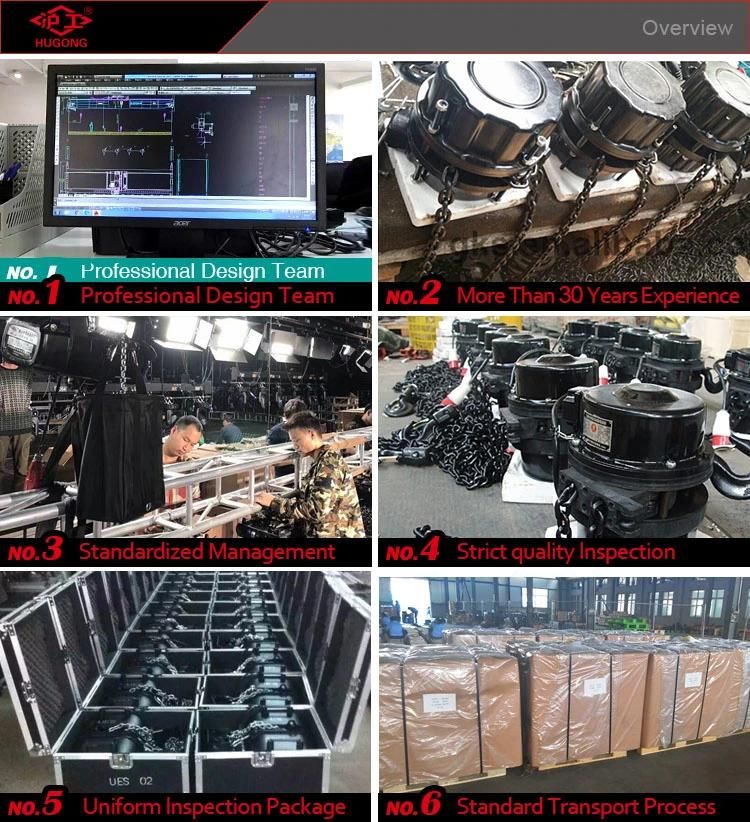

Production and quality control of Hot sale 1 ton crane hoist electric chain hoist lifting equipment

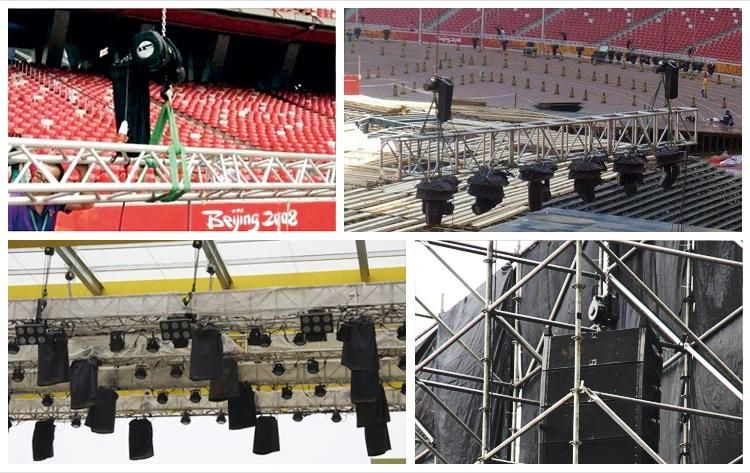

Use case & Service of electric stage hoist
