• Model NO.：HBSQ
• Certification：CE, ISO9001:2000
• Condition：New
• Color：as Your Order
• Product Name：Hbsq Sparkproof Explosion-Proof Hand Chain Hoist
• Capacity of Hoist：1000kg-10000kg
• Lifting Height：3-16m
• Test Load：0.5-50n
• Load Chain Demension：6-10mm
• No. of Falls：1-4
• Additional Weight Per Meter：1.6-9.6
• Force of Full Load：250-380n
• Nw/Gw：14.5,79.1
• Material：Stainless Steel
• Transport Package：Wood Box
• Specification：1000kg
• Trademark：HUGO
• Origin：China
• HS Code：8425190000
• Production Capacity：200piece,Day

Basic Info.

Model NO. HBSQ Certification CE, ISO9001:2000 Condition New Color as Your Order Product Name Hbsq Sparkproof Explosion-Proof Hand Chain Hoist Capacity of Hoist 1000kg-10000kg Lifting Height 3-16m Test Load 0.5-50n Load Chain Demension 6-10mm No. of Falls 1-4 Additional Weight Per Meter 1.6-9.6 Force of Full Load 250-380n Nw/Gw 14.5/79.1 Material Stainless Steel Transport Package Wood Box Specification 1000kg Trademark HUGO Origin China HS Code 8425190000 Production Capacity 200piece/Day

Product Description

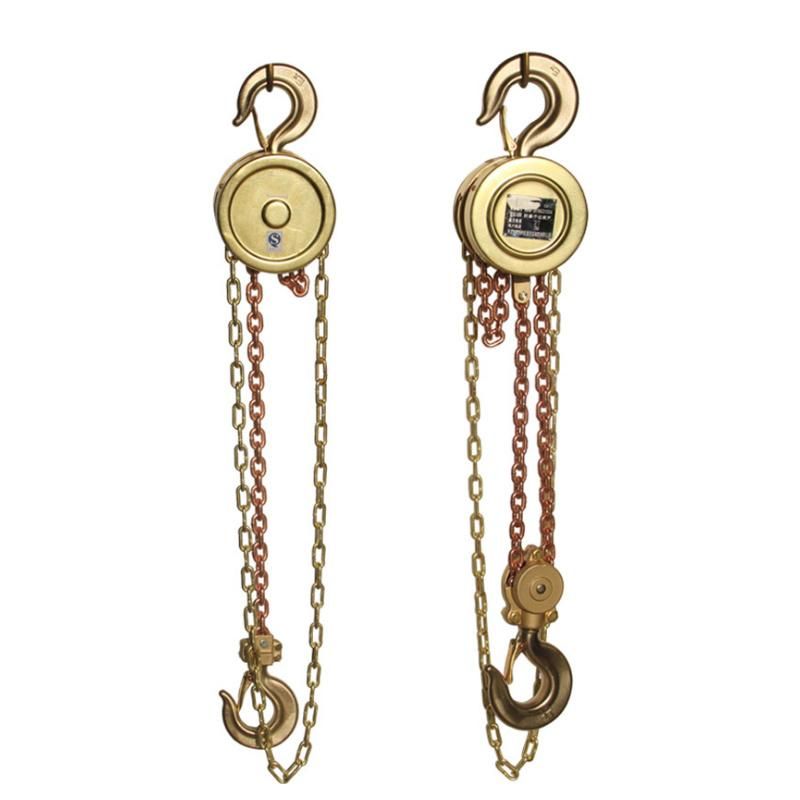

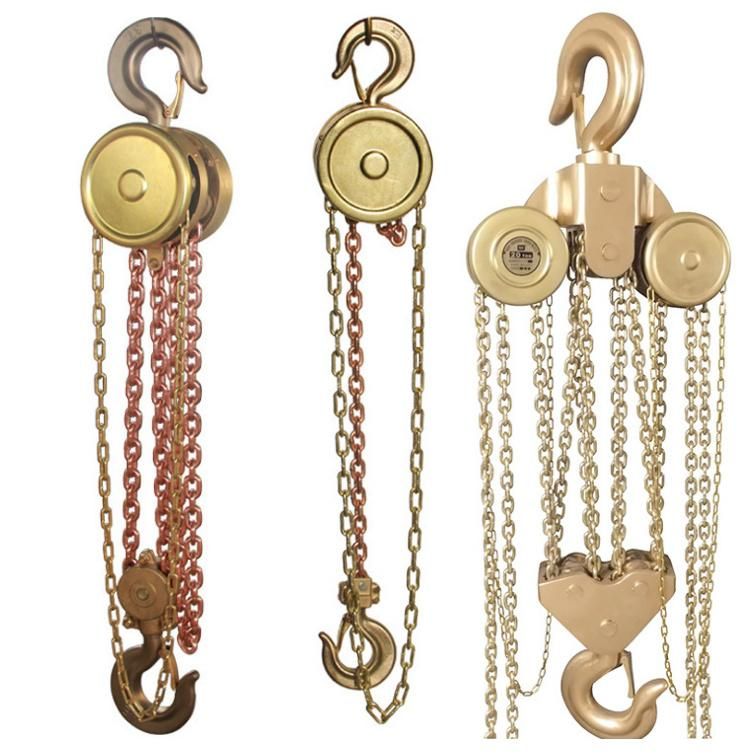

HBSQ No Spark Explosion-Proof Manual Chain Block

The HBSQ type sparkproof manual chain hoist is an ideal solution for clean environment such as the food and chemical industry where an explosive atmosphere consisting of a mixture  with air or flammable substances in the form of gas,vapour or mist is likely to occur in normal operation occasionally.



The friction parts of manual chain hoist,such as loading chain,hand chain,gear,gear shaft,hook, are made of aluminum bronze and beryllium bronze.No spark will occur when working.

Model	HBSQ0.5	HBSQ1	HBSQ2	HBSQ3	HBSQ5	HBSQ7.5	HBSQ10	HBSQ20
Capacity /t	0.5	1	2	3	5	7.5	10	20
Test load /t	0.75	1.5	3	4.5	7.5	11.2	12.5	25
Lifting  height/m	2.5	2.5	2.5	3	3	3	3	3
No. of load chain	2	2	2	2	2	2	4	8
Net weight /kg	12	15	25	35	38	65	83	180

Main Features

1) Stainless steel hand chain as standard.

2) Corrosion proof load chain

3) suitable for gas dust hazardous areas, in Zone 1 and Zone 2.

4) Bronze coated hook and hook with safety latch.




2. Description  of wholesale construction hoist lifting explosion proof hoist chain block
1)Non-sparking chain hoist                      2)Special hand chain hoist
3)non-magnetic chain hoist                      4)Terrace measuring hoist
nonsparking safetytools material:  H62 BeCu, AlCu,
H62 Al-Cu alloy safety tools is precious rare metal synthesis, smelting, forging and made tools, the surface is yellow.
Be-Cu safety tools are military materials and precious rare metal surface, made tools and yellow.
All other technical indicators have reached international advanced level.
Be-Cu safety tools has special functions of magnetic field, in the work environment of normal use.
