Good Selling Factory Price Lever Block Manual Lever Hoist
Dele Electrical (Hangzhou) Co., Ltd.- After-sales Service：1year
- Warranty：1year
- Application：Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
- Type：Lever Hoist
- Sling Type：Chain
- Lift Speed：<2m,min
Base Info
- Model NO.：DC
- Maximum Lifting Height：12m
- Chain Falls：1
- Certification：CE, ISO9001:2000
- Condition：New
- Color：Yellow
- Brand：Gold Lux
- Deliverly Date：15-30days
- Clolour：Yellow,Black
- Size：Multi-Sized
- Transport Package：Carton Box,Wooden Case
- Specification：CE
- Trademark：gold lux
- Origin：Made in China
- Production Capacity：100000 One Year
Description

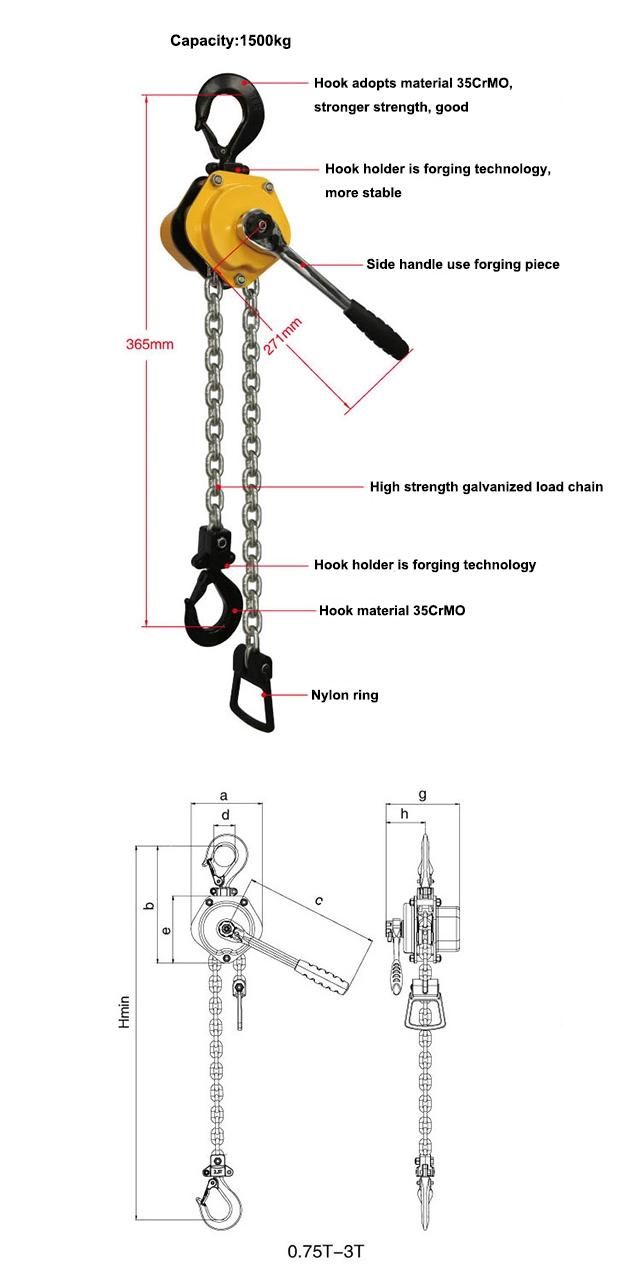

ModelDC 0.25t DC 0.5t DC 0.75t DC 1.5t DC 2.5t DC 5t Capacity (t) 0.25 0.5 0.75 1.5 2.5 5 Standard lift (m) 1.5 1.5 1.5 1.5 1.5 1.5 Hand pull to lift (N) 260 260 220 240 330 330 Test load (kg) 375 750 1125 2250 3750 7500 Loading chain diameter and ingrowth (mm) 4x12 4x12 5x15 7x21 9x27 9x27 Extra weight for one meter chain added (kg/m) 0.346 0.346 0.541 1.1 1.8 1.8 Dimension(mm) a 86 95 121 139 173 173 b 155 178 204 235 286 340 c 170 170 240 240 335 335 d 30 35 30 42 52 60 E 79 87 112 133 162 162 Hmin 245 285 335 365 448 600 g 97 177 124 159 178 178 H 77 80 84 90 97 97 N.W/G.W (kg) 2.2/2.4 3.2/3.4 4.7/5 7.6/8 14/14.5 22/22.5
