Top Saling Steel Cable Electric Winch Wire Rope Electric Hoist Factory
Shanghai Yiying Crane Machinery Co., Ltd.- Type：Electric Winch
- Driven Type：Electric
- Speed：Fast
- Carrying Capacity：Special Weight Level
- Tonnage：3T
- Reel Number：1
Base Info
- Model NO.：CD1
- Running Mode：Moving
- Feature：Antiseptic, Insulating
- Certification：CE, ISO 9001
- Standard：National Standards
- Name：CD1,Md1 Wire Rope Electric Hoist
- Factory：More Than 20 Years Manufactory Experience
- Brand Name：Hugo
- Loading Port：Shanghai Port,Shanghai Port
- Warranty：1 Years
- Painting Color：as Your Order
- Quality Control：According to EU Standard
- Standard Lifting：8 M,Min
- Payment Term：T,T L,C
- After-Sales Service：Overseas Srevice Provided
- Transport Package：Packing by Carton, Woodon Case
- Specification：CE ISO, TUV, SGS
- Trademark：HUGO
- Origin：China-Shanghai
- HS Code：8425110000
- Production Capacity：100000PCS ,Month
Description
1.Reducer: adopt third-class dead axel helical gear transmission structure gear
and geaaxel are made of heat treated alloy steel
Model
CD1-0.25
CD1-0.5
CD1-1
CD1-2
CD1-3
CD1-5
CD1-10
Capacity(t)
0.25
0.5
1
2
3
5
10
Standard lift(m)
3-9
6-12
6-30
6-30
6-30
6-30
9-30
Lifting speed(m/min)
88/0.8
88/0.8
88/0.8
88/0.8
88/0.8
77/0.7
Running speed(m/min)
20(30)
20(30)
20(30)
20(30)
20(30)
20(30)
20(30)
Wire rope type
6x37-4.8-180
6x37-7.4-180
6x37-11-155
6x37-13-170
6x37-15-200
6x37-17.5-200
I Beam track type
16-22b
16-28b
16-28b
20a-32c
20a-32c
25a-63c
28a-63c
Motor
Power(KW)
04
0.8
1.5
3.0
4.5
7.5
13
R.P.M(r/min)
1400
1380
1380
1380
1380
1380
1380
Voltage(V)
380
380
380
380
380
380
380
Frequency(Hz)
50
50
50
50
50
50
50
Phase
3
3
3
3
3
3
3

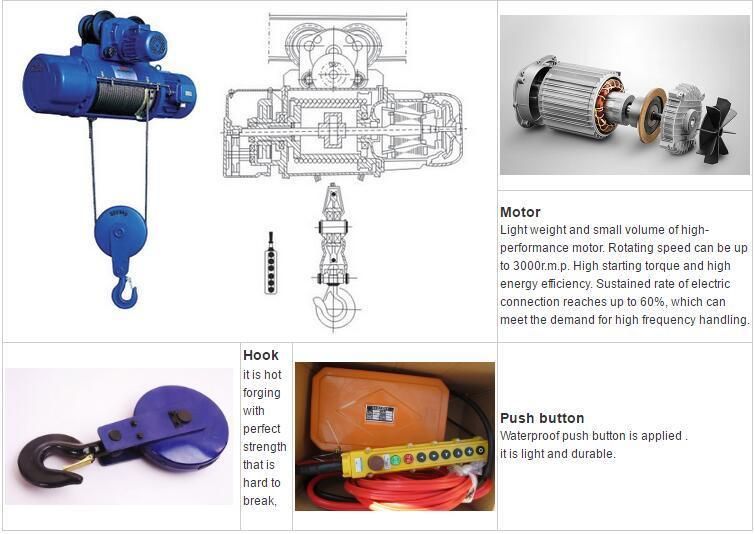

CD1 Model wire rope electric hoist lifting block CD1 Hoist Gearbox

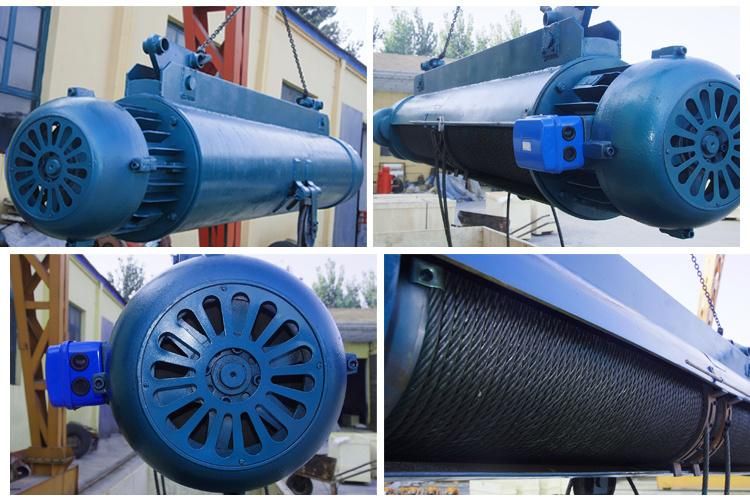

CD1 Model wire rope electric hoist Material object
CD1 Model wire rope electric hoist lifting block production process
Certificate
