• Model NO.：DF-S-2T
• Maximum Lifting Height：3m
• Chain Falls：1
• Certification：CE
• Condition：New
• Color：Silver
• Transport Package：Woodencase Carton
• Specification：1ton to 20ton
• Trademark：OEM
• Origin：China
• HS Code：84251900
• Production Capacity：10000,Month

Basic Info.

Model NO. DF-S-2T Maximum Lifting Height 3m Chain Falls 1 Certification CE Condition New Color Silver Transport Package Woodencase Carton Specification 1ton to 20ton Trademark OEM Origin China HS Code 84251900 Production Capacity 10000/Month

Product Description

Products Description
Subsea Chain Hoist , Model DF
Make by Standard:EN13157
1: Chain hoist Capacity range from 0.5ton to 50 ton
2: Compact sized design product suitable for all application.
3: Suspension and load hooks are made of alloy steel, 35CrMo treated heat and fitted with heavy duty safety  latches, fitting groove and inspection points.
4: Machined chain sprocket and gears provide smoother,more efficient operation.
5: Hook with safety latch securely can rotate freely 360 degrees.
6: Ergonomic handle design so that the hoist is easy to operate.
7: Hoist has overload protection system.
8: Gears are made up of 20CrMnTi material ,which ensures toughness and better strength.
9:Fitted with High strength grade 80 load chain (comply with EN 818, safety factor 4)
10:600hrs + Protection against salt spray tests according to ASTM B117
11: it can be used within an operating temperature range of -40°C to +60°C.
ADVANTAGE
A. We are professional manufacturer
B. CE certificate tested by TUV
C.  Forges and hear treated load hooks with batch traceability and stretch indicators
D.  360° degree hand rotation with stroke to ratchet indicators
E. Double pawl brake linings
F.  Forged safety latch
G.  Sealed roller bearings

We dele lifting are a professional manufacturer of electric chain hoist, chain block, lever block&other lifting equipments! Through more than 8 years' dedication, we've been the leading manufacturer of lifting industry in China!
Our company has achieved ISO9001 & CE certifications. Our products have been successfully exported to Europe, America, the Middle East, Africa & Southeast Asia.
We warmly welcome clients from all over the world to cooperate with us&develop worldwide market together! We also hope we can have the chance to establish long-term

MODEL HSH DF-S50 DF-S100 DF-S150 DF-S200 DF-S300 DF-S500 DF-S1000 DF-S1500 Capacity load kg 500kg 1000kg 1500kg 2000kg 3000kg 5000kg 10000kg 15000kg standard lift m 3 3 3 3 3 3 3 3 load chain number of fall   1 1 1 1 1 2 3 6 force N 240 305 340 360 370 370 380 360 running testload kg 750 1500 2250 3000 4500 7500 15000 22500 load chain diameter x number of falls mm 5x15 6x18 8x24 8x24 10x30 10x30 10x30 10x30 hang chain diameter x number of falls mm 5x25 5x25 5x25 5x25 5x25 5x25 5x25 5x25 net weight kg 5.7 11 17 17 26 40 73 160  Paking weight kg 6 11.5 17.6 17.6 26.5 40.6 73.6 180 packing size cm 27.5x14.5x15.5 28x17x18.5 31x17.5x22 31x17.5x22 39x19x26 44x24x26 58x46.5x24.5 47×42×70 add 1m load chain N.W (kg/m) 0.541 0.77 1.36 1.36 2.2 4.4 6.6 13.2 add 1m hand chain N.W (kg/m) 0.9 0.9 0.9 0.9 0.9 0.9 0.9 1.8 Dimensions(mm) a 122 152 176 176 216 216 244 441   b 34 40 52 52 62 65 70 120   c 118 145 170 170 204 204 204 66   d 31 31 41 41 45 51 54 400   e 119 145 157 157 167 167 167 222   f 65 79 81 81 83 83 83 110   Hmin 311 361 443 443 431 660 705 1094 MODEL HSH DF-S2000 DF-S3000 DF-S5000 Capacity load kg 20000kg 30000kg 50000kg standard lift m 3 3 3 load chain number of fall   8 12 12 force N 380 400 390 running testload kg 30000 45000 75000 load chain diameter x number of falls mm 10×30 10×30 11.2×31 hang chain diameter x number of falls mm 5×25 5x25 5×25 net weight kg 125 258 425  Paking weight kg 200 285 4654 packing size cm       add 1m load chain N.W (kg/m) 17.6 26.4 30 add 1m hand chain N.W (kg/m) 1.8 1.8 1.8 Dimensions(mm) a 429 533 570   b 125 150 190   c 105 105 125   d 376 373 445   e 222 220 279   f 113 109 140   Hmin 1100 1139 1500

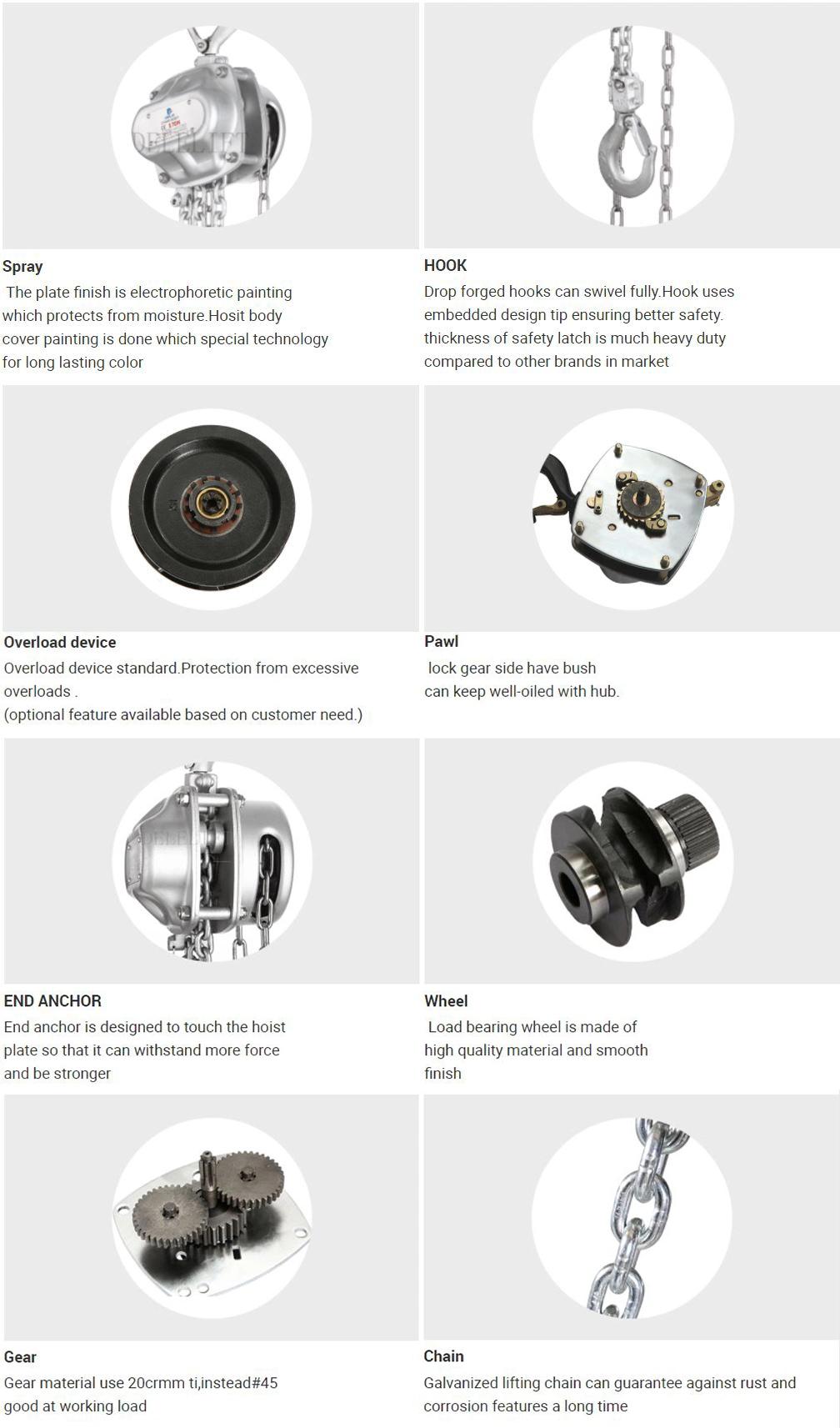

Details Images

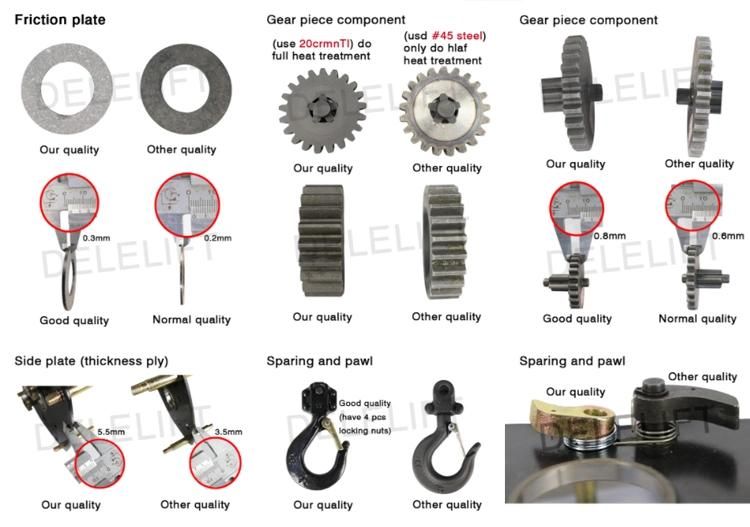

The Quality comparison of spare parts

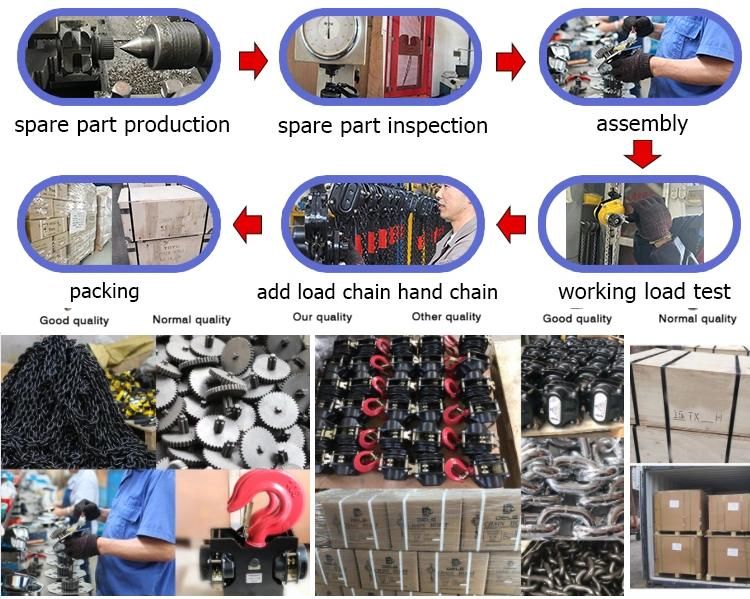

Production process

Certifications

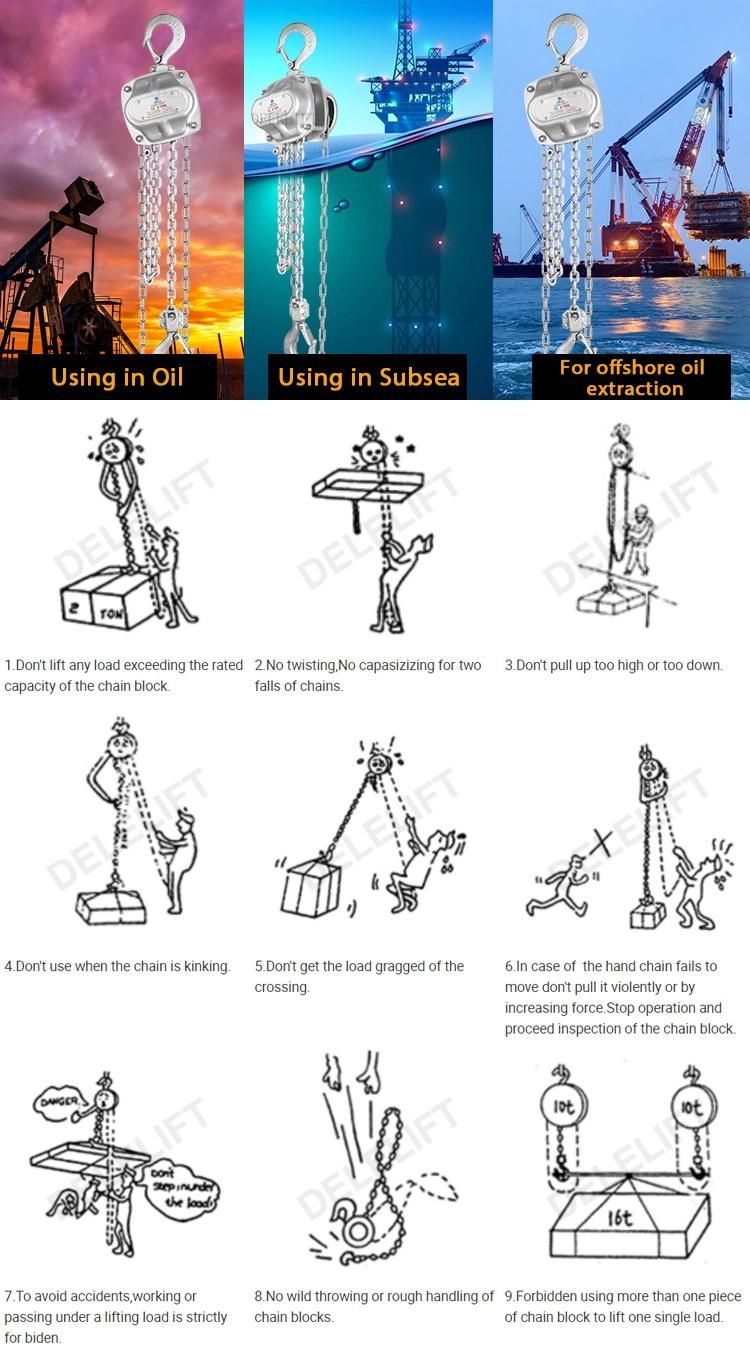

Usage

Payment

Our Service

FAQ
Q1. What's information should I provide to get the price?
A:1. Chain quality? 2.the chain size? 3. the working voltage? 4. the machine frequency?

Q2. What's the lead time for regular order?
A: The normal delivery time is 60-120 days. If you have special needs or if the quantity is greater than 1 set, please explain
when making an inquiry. When we quote, we will provide you with accurate delivery time according to the actual situation.

Q3. The space of my workshop is limited, can the machine is ok for me?
A: We have been specializing in European machines for 20 years. Machines are one of the biggest features of our products.According to your needs, our designers will tailor-made products suitable for your use.

Q4.Can you provide lifting tools?
A: Yes, we can provide any type of lifting tools such as Manual chain hoists, manual lever chain hoist, electric chains
hoists,chains, slings, hooks, electromagnetics, grabs, beams, etc.non-standard fixtures, etc... Welcome to consult

Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q6. Are there any professional technicians to assist our installation?
A: Yes. We have a professional installation team, who has already been to many countries to assist the installation. If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.

Q7. How do you ship the goods and how long does it take to arrive?
A: Small products can be transported by air, and large products can be transported by sea. According to different countries and regions, the specific time will be confirmed according to the actual situation.

Q8. What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment. We'll show you the photos or videos of the products and packages before you pay the balance.

Q9. What is your terms of packing?
A: Generally, we pack our goods in neutral wooden boxes. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters. There is no package of big machines,there are just protective covers.

Q10. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q11. How to proceed an order for hoist?
A: Firstly let us know your requirements or application:Hoists capacity, chains length and others? Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.

Q12. Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty to our products.
