• Model NO.：ME1400-2
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Working Height：16m
• Capacity：150kg
• Weight：904kg
• Lifting Motor：1.1kw
• Ground Clearance：0.05m
• Outrigger Footprint：2.36**2.33m
• Platform Size：1.52*0.62m
• Platform Height：14m
• Stowed Length：1.9m
• Stowed Width：1.16m
• Stowed Height：2.31m
• Transport Package：PVC Film Wrapped in Pallets
• Specification：1.9*1.16*2.31m
• Trademark：Bestmax
• Origin：China
• HS Code：8428909090
• Production Capacity：3000 Units,Year

Basic Info.

Model NO. ME1400-2 Feature Explosion-Proof Certification CE, ISO 9001 Working Height 16m Capacity 150kg Weight 904kg Lifting Motor 1.1kw Ground Clearance 0.05m Outrigger Footprint 2.36**2.33m Platform Size 1.52*0.62m Platform Height 14m Stowed Length 1.9m Stowed Width 1.16m Stowed Height 2.31m Transport Package PVC Film Wrapped in Pallets Specification 1.9*1.16*2.31m Trademark Bestmax Origin China HS Code 8428909090 Production Capacity 3000 Units/Year

Product Description

Aluminum Aerial Work Platform(Single/Double Mast)
Aluminum Aerial Work Platform is  a new generation of aerial work products made of new high-strength aluminum alloy materials. Its appearance is light and exquisite, convenient and flexible. It can pass through the general foeyr, can enter and exit the elevator at will, save energy and electricity, and work without hurting the ground. It can be used for wall-mounted work and exploration work, and is widely used in hotels, hospitals, stations, airports, warehouses and other occasions.

Specification
Single Mast

Model	ME600-1	ME800-1	ME900-1	ME1000-1
Lift Capacity	130Kg	130Kg	130Kg	130Kg
Platform Occupancy	1	1	1	1
Working Height max	8.00m	10.00m	11.00m	12m
Platform Height max	6.00m	8.00m	9.00m	10.00m
Stowed Length	1.34m	1.34m	1.45m	1.45m
Stowed Width	0.85m	0.85m	0.85m	0.85m
Stowed Height	2.00m	2.00m	2.00m	2.00m
Platform Size	0.60*0.55m	0.60*0.55m	0.60*0.55m	0.60*0.55m
Outrigger Footprint	1.7*1.67m	1.7*1.67m	1.93*1.77m	1.93*1.77m
Ground Clearance	0.05m	0.05m	0.05m	0.05m
Lifting Motor	0.75Kw	0.75Kw	0.75Kw	0.75Kw
Weight	370Kg	390Kg	400Kg	420Kg

Double Mast

Model	ME600-2	ME800-2	ME900-2	ME1000-2	ME1200-2	ME1400-2
Lift Capacity	200Kg	200Kg	200Kg	200Kg	200Kg	150Kg
Platform Occupancy	1	1	1	1	1	1
Working Height max	8.00m	10.00m	11.00m	12.00m	14.00m	16.00m
Platform Height max	6.00m	8.00m	9.00m	10.00m	12.00m	14.00m
Stowed Length	1.54m	1.54m	1.54m	1.76m	1.76m	1.9m
Stowed Width	1.00m	1.00m	1.00m	1.00m	1.00m	1.00m
Stowed Height	2.00m	2.00m	2.00m	2.00m	2.00m	2.31m
Platform Size	1.30*0.62m	1.30*0.62m	1.30*0.62m	1.52*0.62m	1.52*0.62m	1.52*0.62m
Outrigger Footprint	1.77*1.82m	1.77*1.82m	1.77*1.82m	2.1*2.00m	2.1*2.00m	2.36*2.33m
Ground Clearance	0.05m	0.05m	0.05m	0.05m	0.05m	0.05m
Lifting Motor	1.1Kw	1.1Kw	1.1Kw	1.1Kw	1.1Kw	1.1Kw
Weight	600Kg	660Kg	730Kg	780Kg	830Kg	900Kg

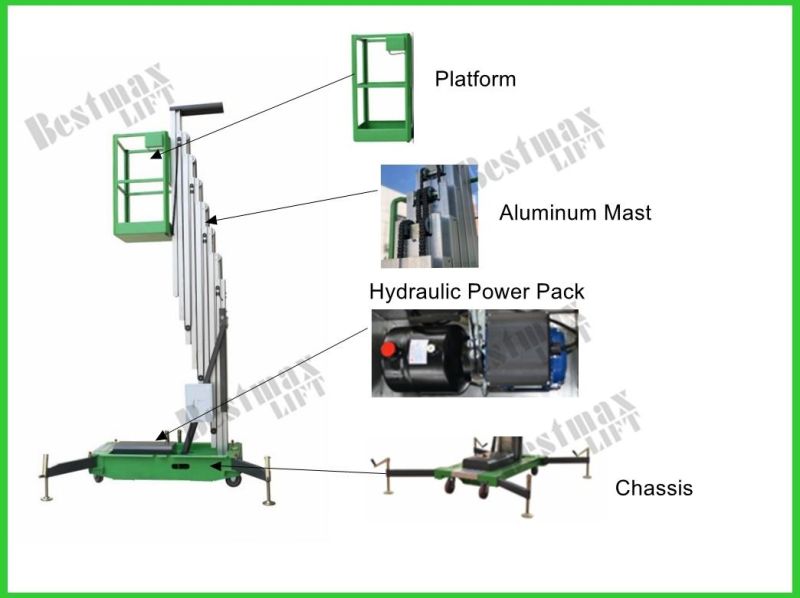

Details
Single Mast


Double Mast


Standard Configuration for Aluminum Aerial Work Platform

1. AC Power: 220V single phase 50Hz/60Hz
2. Beacon light
3. Dual operation both on platform and ground
4. Auxiliary Lowering
5. Rain proof cover for ground control box
6. Dual limit switch for safety
7. Anti-dust cover on the mast
8. Emergency stop button both on platform and ground
9. Short Circuit and leakage protection system
10. Forklift slot
11. Operation voltage at 24V
12. Lockable stabilizer
13. Swing type outrigger with lock pin
14. Spring mounted handles-not for single mast
15. Powder coating painting

Optional Configuration for Aluminum Aerial Work Platform.

1. DC Power Supply:24V
2. AC&DC Power Supply
3. Battery Indicator for DC version
4. Hour meter for DC version
5. Extension platform for dual mast
6. Motorized Device
7. Outrigger Sensor
8. Explosion proof type
9. Towing type can be made to be connected to the truck
10. Manual power by foot
11. Stainless Steel fence
12. Overseas brand hydraulic power pack
13. Wireless tracking
14. Anti-burst valve on the cylinder
15. Overloading sensor
16. Tilting alarm
17. Horn on the platform
18. AC power to the platform
19. Platform working light
20. Hinge type top open door on the fence for single maste
21. Machine Body cover
22. Truck-mounted type

Company Introduction

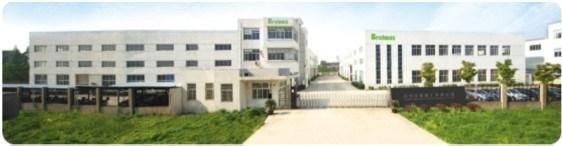

Bestmax Heavy Industry Company Limited

1. Located at Suzhou City Jiangsu Province(we are the largest manufacturer in this line in Jiangsu)
2. Founded in 2001
3. A standardized modern factory of 11,000 square meters
4. Professional organization in manufacturing, sales, services and refurbishment of hydraulic lifting machinery and aerial working platform
5. Established distributor relationship with customers from over 30 countries and regions in Southeast Asia, Middle East, South America, Europe and Africa
   Our belief is to produce the high quality and safety machines to our customers, and provide the high efficiency services.
   Many tenacity workers, we, from different places to meet in Bestmax and  group into an active team, through our effort, to maximum at everything.

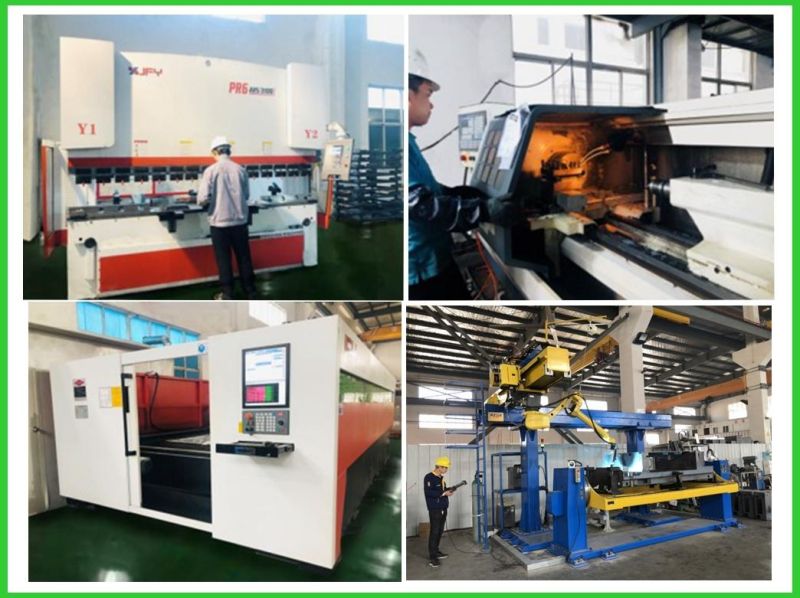

   Factory Equipment

   Client & FactoryClient &Exhibition

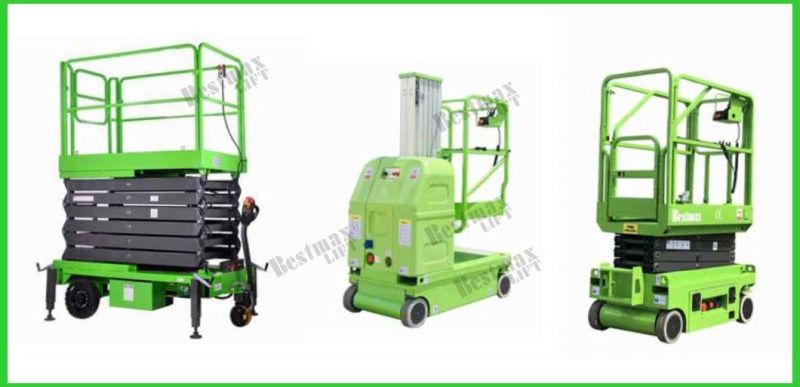

   Other products

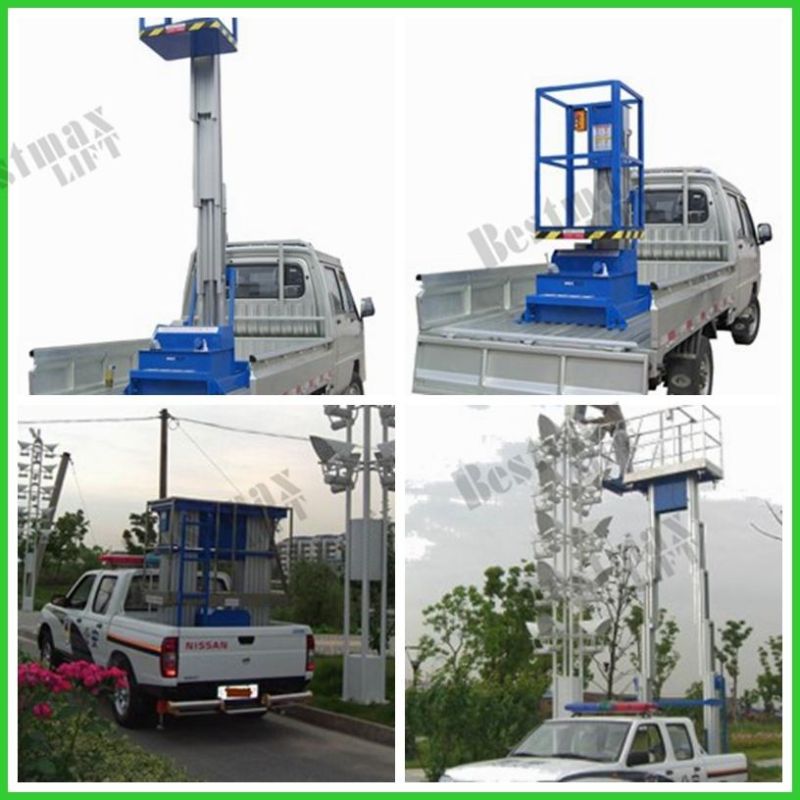

   Truck-Mounted Aluminum Aerial Work Platform
