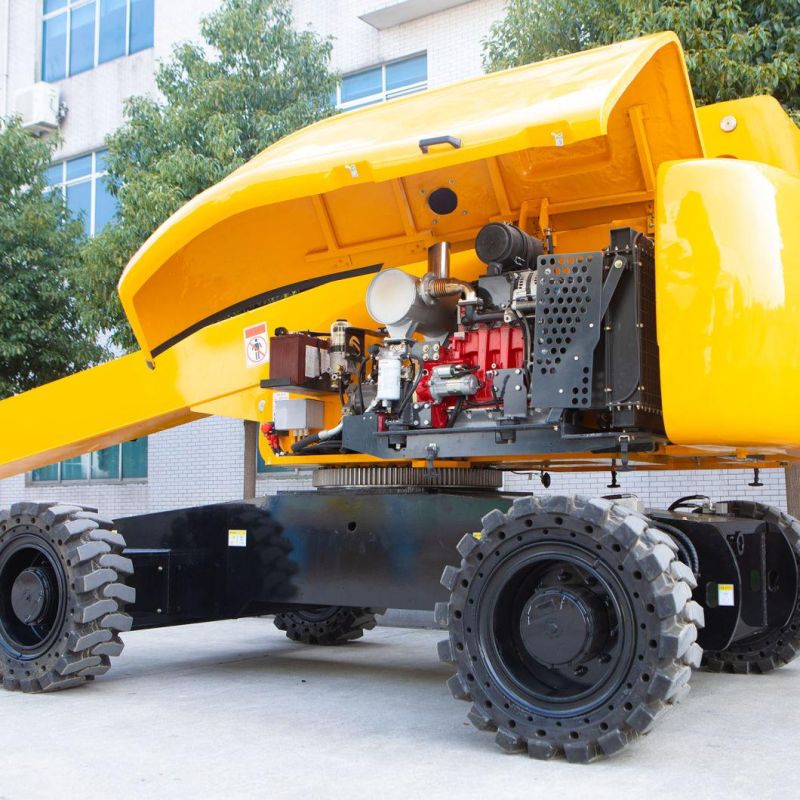

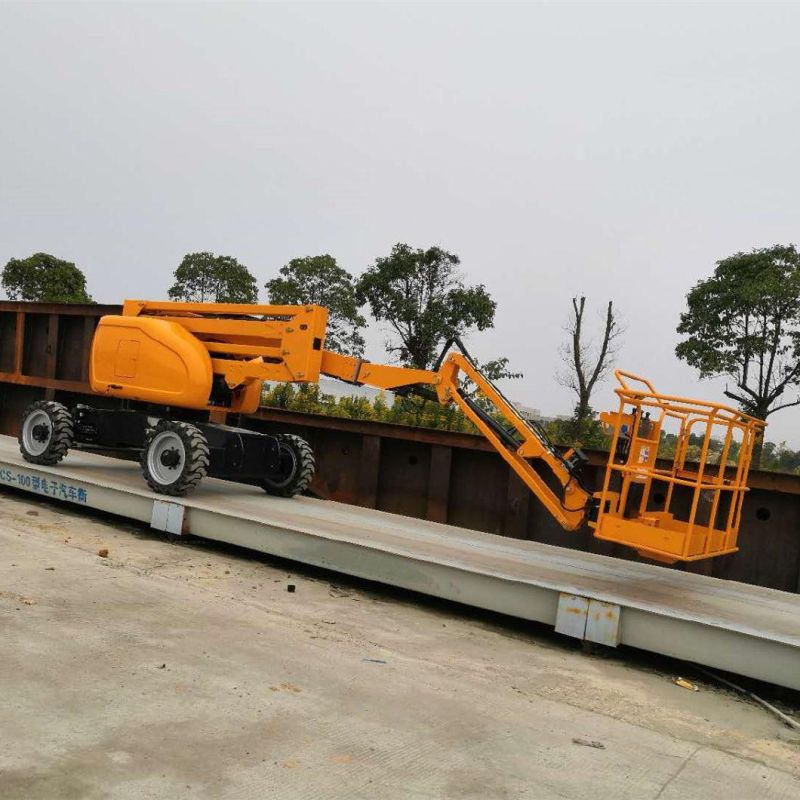

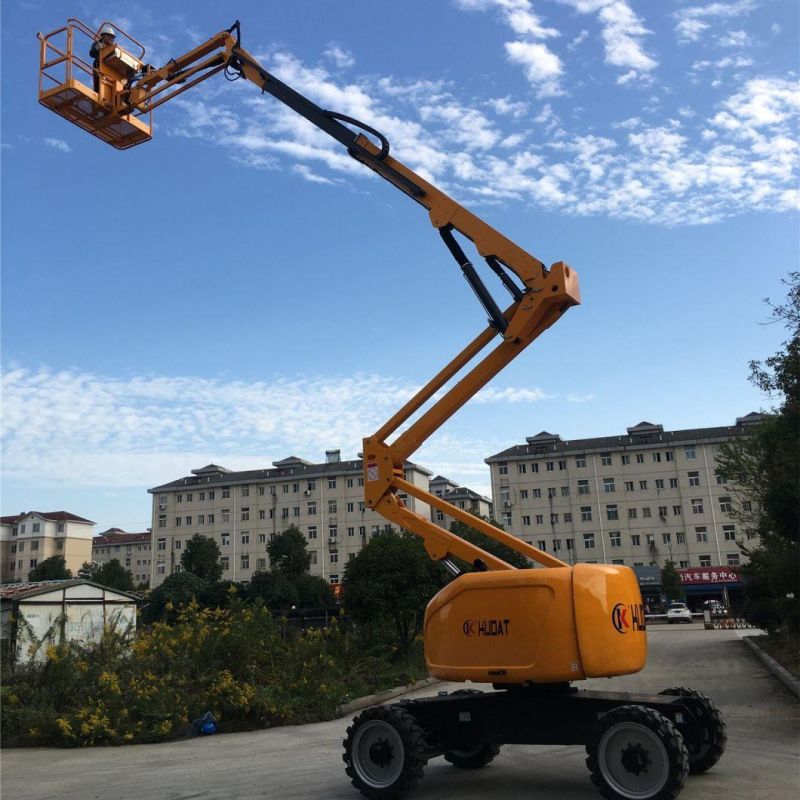

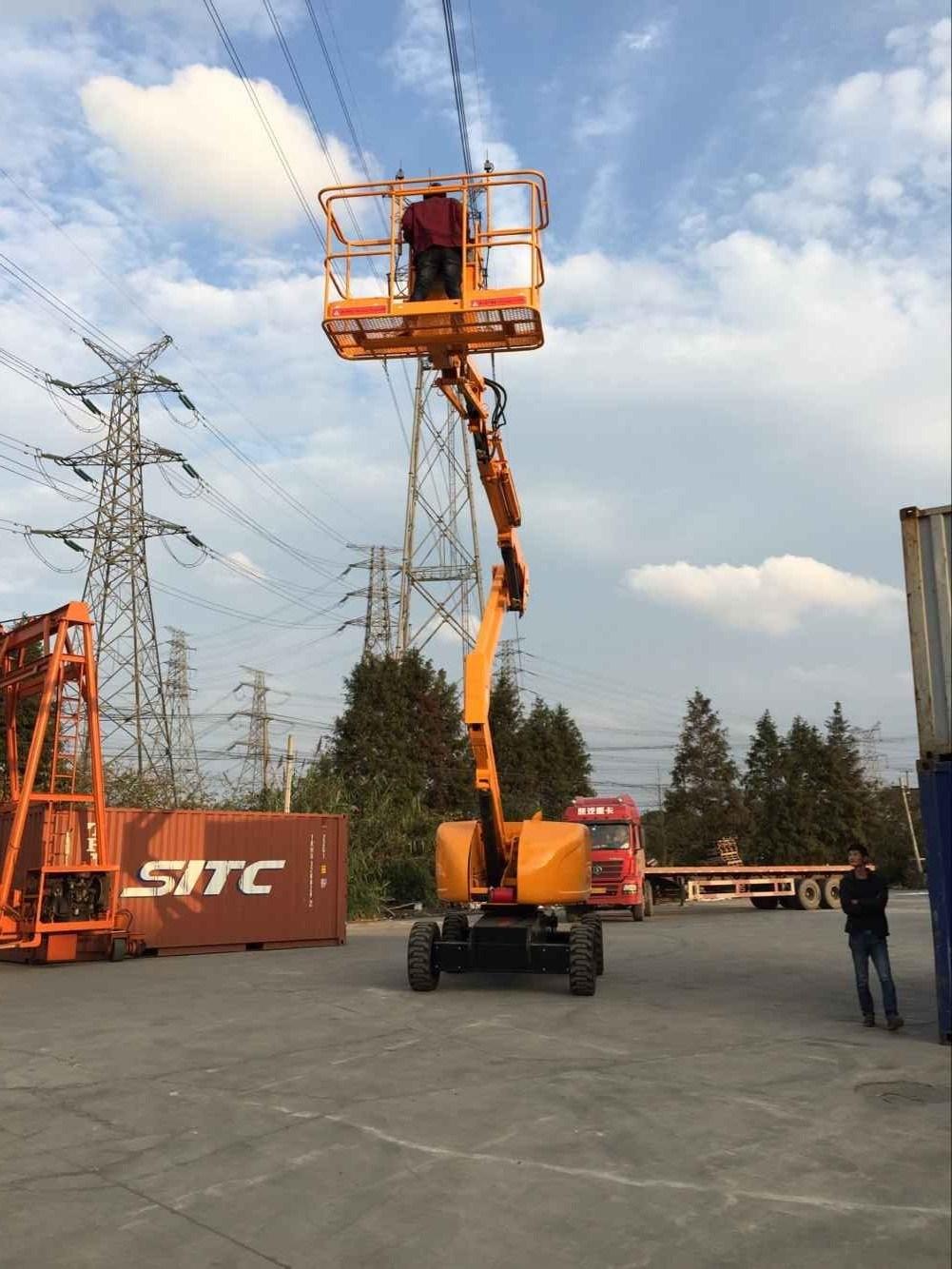

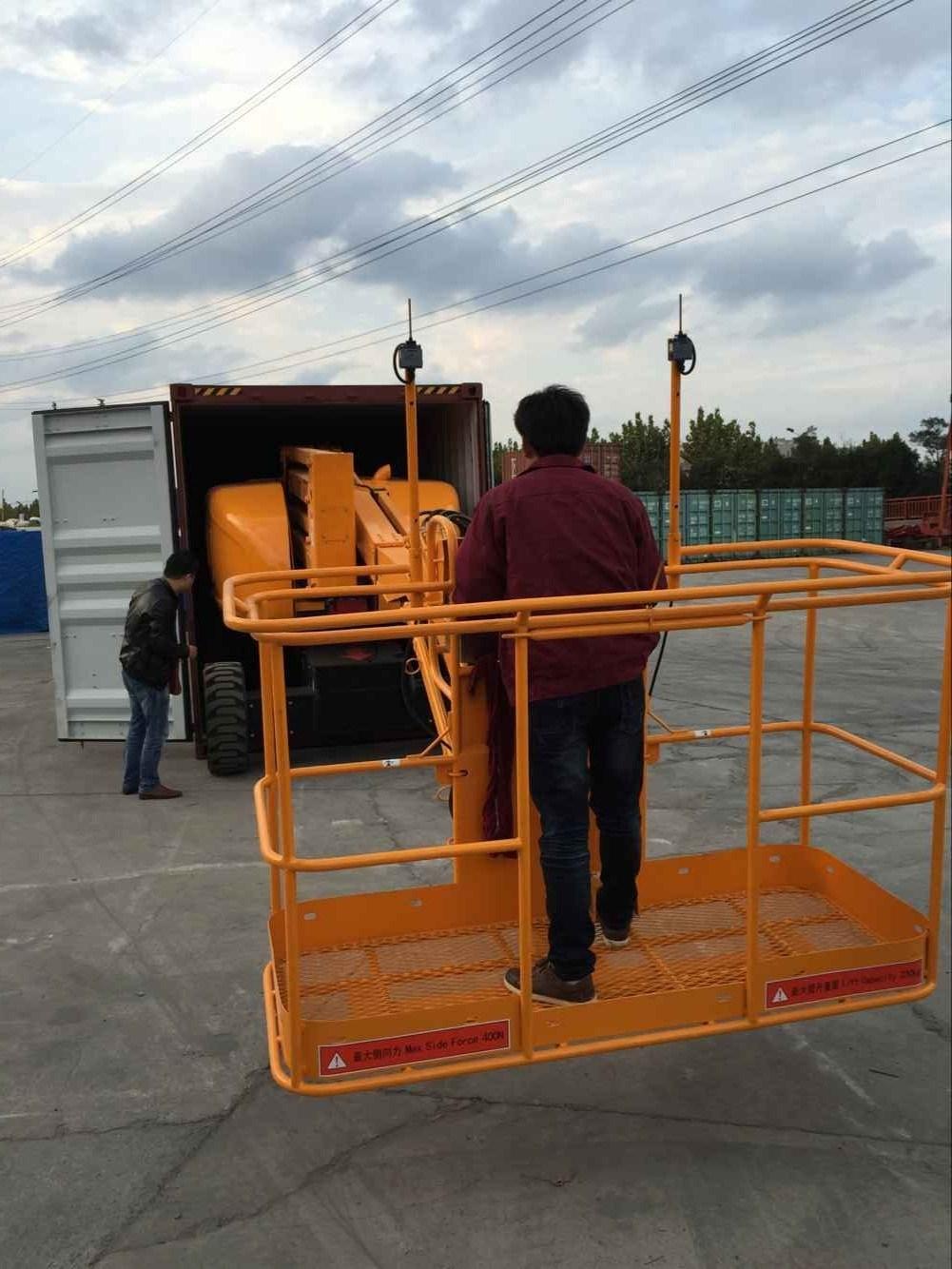

Articulated Boom Lift Aerial Work Platform 18m Cherry Picker (GTZZ18)

Wuhan Kudat Industry & Trade Co., Ltd.
  • Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
  • Lift Mechanism：Articulated Lift
  • Carrying Capacity：Middle-Level
  • Moves：Self-propelled
  • Driven Type：Hydraulic
  • Running Mode：Diesel 4WD

Base Info

  • Model NO.：GTZZ18
  • Feature：Aerial Work Platform
  • Certification：CE, ISO 9001
  • Structure：Aerial Work Platform
  • Working Height Maximum：19.7m
  • Horizontal Reach Maximum：10.8m
  • Wheelbase：2.6m
  • Ground Clearance-Center：430mm
  • Transport Package：Container
  • Specification：SGS
  • Trademark：KUDAT
  • Origin：China
  • HS Code：8428909090
  • Production Capacity：300units,Month

Description

MODEL                                                         GTZZ 18MEASUREMENTS                      Metric  US  Metric USWorking height maximum *19.7m64ft8inPlatform height maximum18 m59ftHorizontal reach maximum **10.8m35ft5inAPlatform length-8ft model0.76m2ft6inBPlatform width-8ft model1.83m6ftCHeight-stowed2.38m7ft10inDLength-stowed8.15m26ft9inEWidth2.48m8ft2inFWheelbase2.60m8ft6inGGround clearance-center0.43m1ftPRODUCTIVITY                                  ()Lift capacity (restricted)230kg507lbPlatform rotation180°
 Turntable Swing    360°continuous
355°non-continuouTurntable tailswing0Drive speed -stowed   6.3km/h
    Gradeability -stowed (2WD)30%
45%Gradeability -stowed (4WD)45%Turning radius - inside      3 m9ft10inTurning radius -outside
Turning radius - axle extendeded      outside5.2m17ft1inControls12V DC Proportional
12V DC ProportionalPOWER                                                                                               Power sourceCummins B3.3-C60(45kw)
Perkins 400 61hp (45.5kw)
 Auxiliary power unit12V  DC
12V  DCHydraulic tank capacity175LFuel tank capacity100L         WEIGHT ***                                                                                       22WD8202kg18082lbsSTANDARDS COMPLIANCE                   EN280JG/T5101Q/ADZV001-2008
