• Model NO.：Za20je
• Running Mode：Moving
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Gradeability：45%
• Battery：8×6V,420ah
• Platform Capacity：250kg
• Horizontal Outreach：11.45m
• Work Height：21.45m
• Platform Height：19.45m
• Drive Motor：AC 32V,3.3kw
• Hydraulic Tank Capacity：75L
• Gross：9200kg

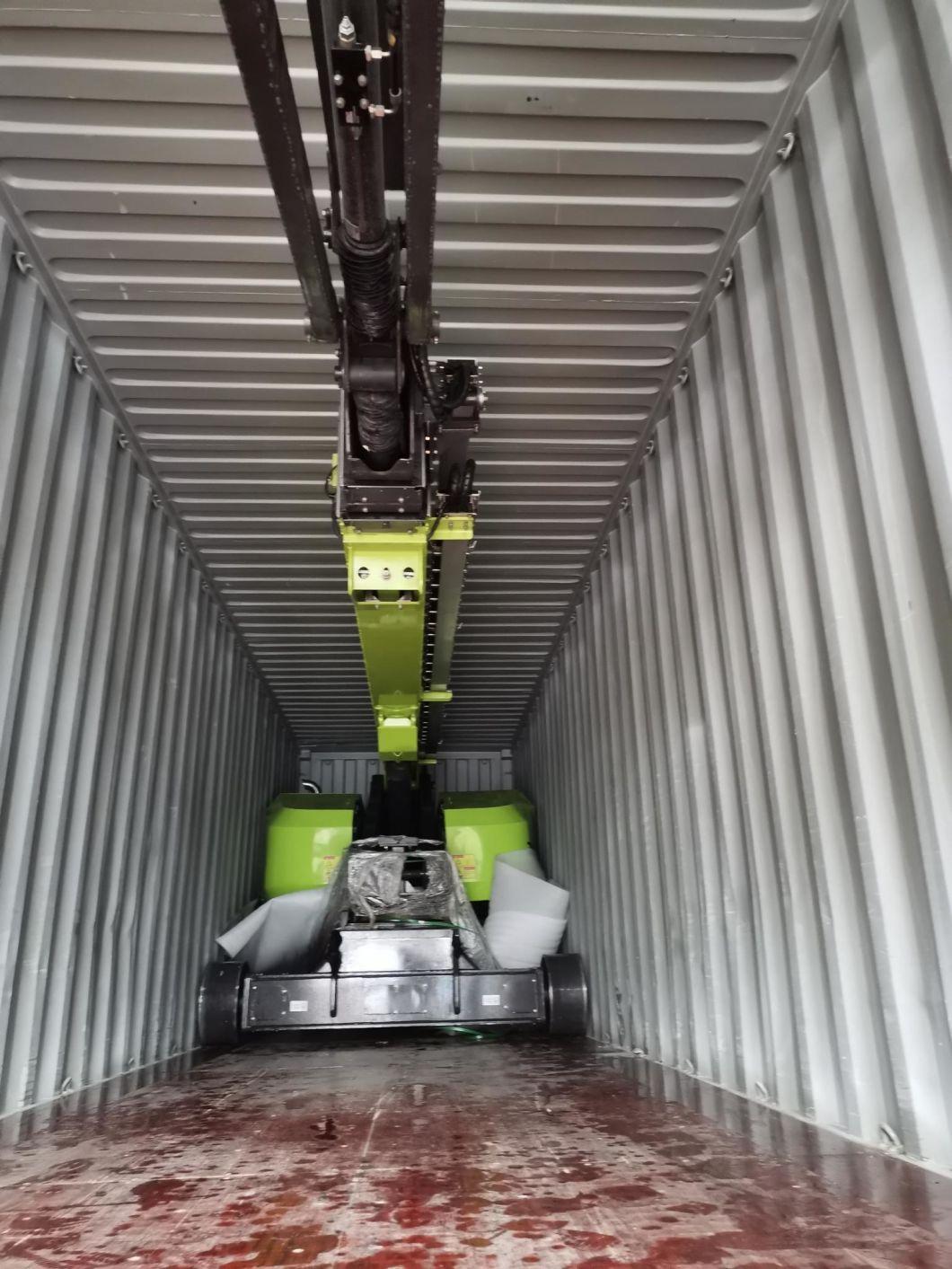

• Transport Package：Roro,Nude,Bulk,Container
• Specification：6.57*2.3*2.27 m
• Trademark：Zoomlion
• Origin：China
• HS Code：842890909
• Production Capacity：1000 Set Per Month

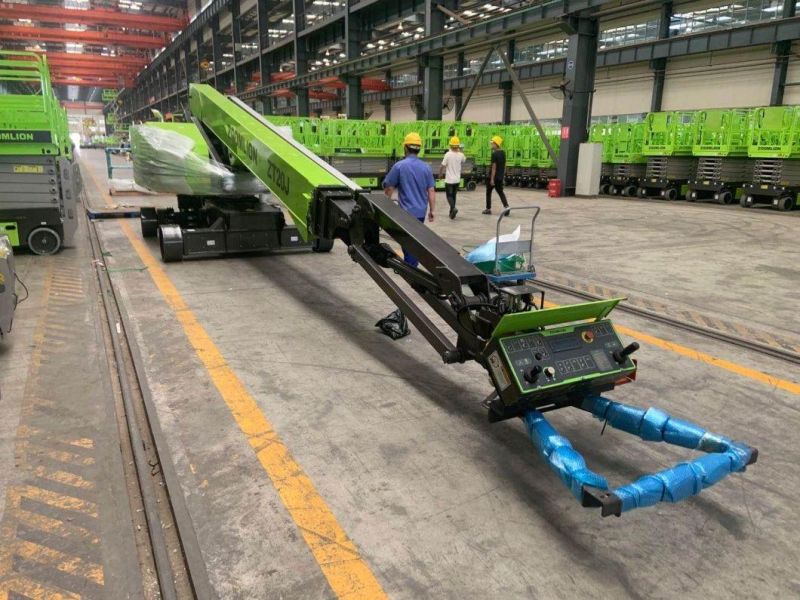

Electric Articulating Boom LiftsComply with CE/ANSI/GB StandardModel ZA20JE GBZA20JE CESizeWork Height21.45m21.50mPlatform Height19.45m19.50mHorizontal Outreach11.45m11.45mUp and Over Height8.25m8.30mA - Stowed Length8.72m8.72mB - Stowed Width2.49m2.49mC - Stowed Height2.52m2.56mD - Platform Length1.83m1.83mE - Platform Width0.76m0.76mF - Wheelbase2.52m2.52mG - Ground Clearance330mm375mmPerformancePlatform Capacity250kg250kgDrive Speed6.1km/h6.1km/hGradeability45%45%Axles Oscillation200mm200mmTurning Radius (Inside)2.78m2.78mTurning Radius (Outside)5.49m5.49mSwing400° non-continuous360° continuousPlatform Rotation±90°±90°H-Tail Swing0.6m0.6mMax. Working Slope3/5°3/5°Max. Wind Speed12.5m/s12.5m/sPowerBattery8×6V/420Ah8×6V/420AhCharger48V/35A48V/60ADrive MotorAC 32V/3.3kwAC 32V/3.3kwLift MotorAC 32V/10kwAC 32V/10kwAuxiliary PowerManual Pump12V DCHydraulic Tank Capacity75L75LTireType33x12 D610 Foam-filled Tires355/55 D625 Foam-filled TiresWeightGross9200kg9200kg

Our company will offer you the high quality products with a low price, quick delivery, and professional after-sale services.
