9m Double Aluminum Mast Aerial Work Platform Lift Capacity to 250kg

Jinan Morn Technology Co., Ltd.
  • Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
  • Lift Mechanism：Lift Chain
  • Carrying Capacity：Light Level
  • Moves：Moving
  • Driven Type：Hydraulic
  • Running Mode：Moving

Base Info

  • Model NO.：TAM0.25-9
  • Feature：Explosion-Proof
  • Certification：CE
  • Max Platform Height：9.3m
  • Max Working Height：11.3m
  • Platform Size：1.45*0.7m
  • Load Capacity：250kg
  • Weight：580kg
  • Dimension：1.45*0.81*1.99m
  • Voltage：220V, Single Phase, 50Hz
  • Wheels：4PCS Solid Rubber Wheel
  • Transport Package：Plywood Packing
  • Specification：CE
  • Trademark：MORN
  • Origin：Shandong China
  • HS Code：8428909090
  • Production Capacity：200 Units Per Month

Description

9m Double Aluminum Mast Aerial Work Platform Lift Capacity to 250kg

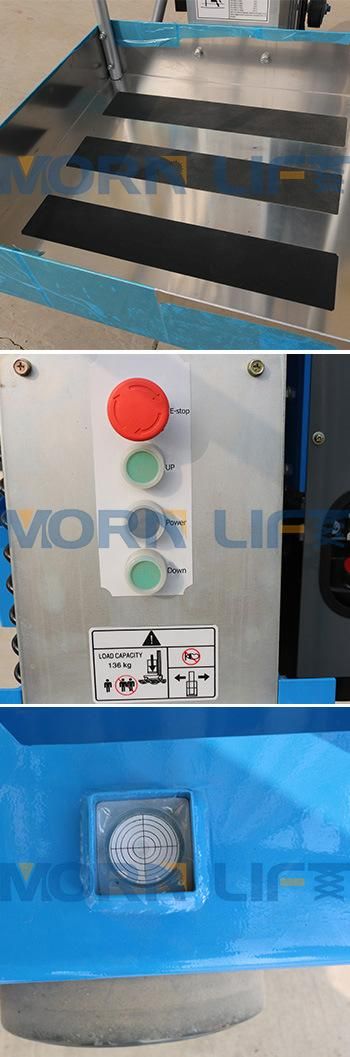

 Dull polish platform is more safe. It is anti-skid, will protect the user on the platform.

 There is a "power" button on the control panel. Press "power" and "up" meanwhile, the lift will go up. This is a safety design to protect user from suddenly lifting of user's press the "up" or "down" button negligently.
The vertical mast lift needs to work on the smooth ground. The gradienter on the lift help you to confirm whether the it is horizontal.



Working Height

6.7m

8.2m

9.7m

11.2m

12.2m

12.7m

Platform Height

4.7m

6.2m

7.7m

9.2m

10.4m

10.7m

Load Capacity

150kg

150kg

150kg

136kg

136kg

120kg

Platform Size

0.67m x 0.66m

0.67m x 0.66m

0.67m x 0.66m

0.67m x 0.66m

0.67mx0.66m

0.67m x 0.66m

Overall Size



Height

1.97m

1.97m

1.97m

1.97m

1.97m

2.3m

Width

0.81m

0.81m

0.81m

0.81m

0.81m

0.81m

Length

1.35m

1.24m

1.24m

1.28m

1.28m

1.5m

Outrigger Coverage

1.69m x 1.69m

1.69m x 1.69m

1.69m x 1.69m

1.69m x 1.69m

1.8m x

18m

2.2m x

2.2m

Weight



AC

275kg

305kg

335kg

365kg

385kg

455kg

DC

297kg

327kg

357kg

387kg

407kg

477kg

Power

AC

  220V/110V

 220V/110V

 220V/110V

220V/110V

220V/110V

    220V/110V

DC

12V

12V

12V

12V

12V

          12V

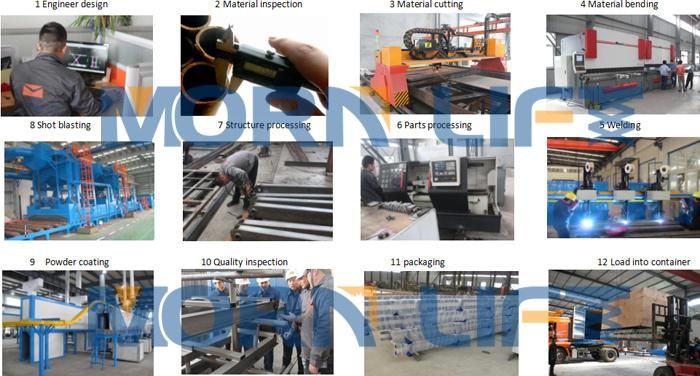

Manufacturing Technology & Process

1. MORN production process is controlled by strict Inner Quality Control System.
2. Apply to CE standard.
3. Full set of CNC manufacturing equipment, standard production lines and fast delivery.

9m Double Aluminum Mast Aerial Work Platform Lift Capacity to 250kg


MORN service:

1) All the machines will be full tested before shipment.
2) The total machine guarantee is 12 moths.
3) 24 Hours technical support, email, telephone or video online.
4) User-friendly English manual for machine using and maintaining.
5) Several sets wearing parts will be free for you.

9m Double Aluminum Mast Aerial Work Platform Lift Capacity to 250kg
