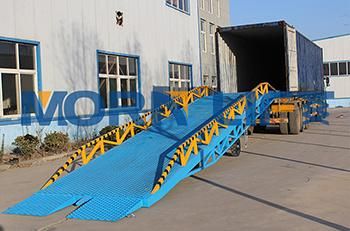

10t Hydraulic Electric/Manual Truck/Mobile Container Forklift Load/Loading Dock Leveler Platform Yard Ramp
Jinan Morn Technology Co., Ltd.- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Telescoping Lift
- Carrying Capacity：Weight Level
- Moves：Moving
- Driven Type：Hydraulic
- Running Mode：Moving
Base Info
- Model NO.：MDR-10
- Feature：Explosion-Proof
- Certification：CE, ISO 9001
- Capacity：10t
- Working Height Range：900-1800mm
- Junction：400*1950mm
- Forklift Suspensive Board：2500*2000mm
- Floor：7500*2000mm
- Leading Board：600*500mm
- Overall Width：2010mm
- Usable Width：2000mm
- Max Working Grade：≤13°
- Color：Blue, Green, Yellow or as Your Requirements
- Transport Package：Nude Packing or According Your Requirement
- Specification：CE, ISO
- Trademark：MORN
- Origin：China
- HS Code：8428909090
- Production Capacity：500sets,Year
Description

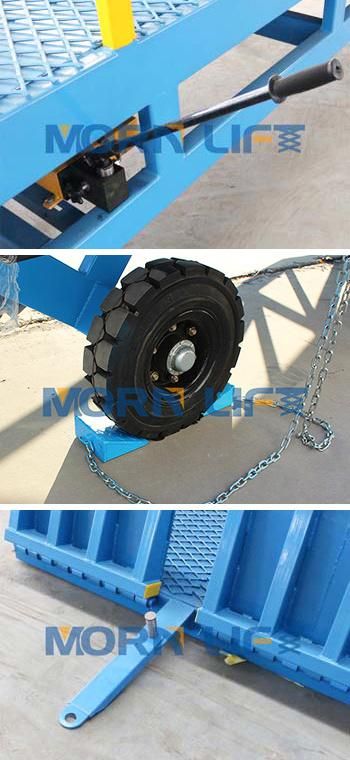

It's one hydraulic pump handle, to adjust height of loading ramp. One worker can easily lift up the ramp up to the bottom surface of container or truck. DC power for option.
Solid iron blocks
To stabilize the wheels in case the ramp begins to move while working. Guaranteen forklift and worker move safely on ramp.
Trailing device
It joints truck or trailer to move ramp to different work places, convenient and flexible.

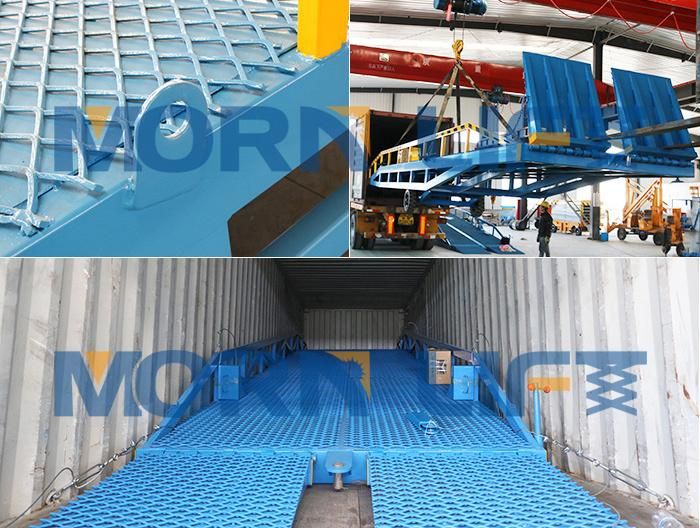

Delivery:
Hook is free to loading ramp to container or truck. Ramp is deliveried by one 40ft container.
Our ramp can be loaded 5 units in one 40ft container. Save double delivery cost.
