• Model NO.：JCPT
• Running Mode：Moving
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, ISO 9001
• Color：Customized
• Power：1.5-4kw
• Load Capacity：230-450kg
• Guardrail：Folded
• Transport Package：Standard Sea Freight Packing
• Specification：steel+rubber
• Trademark：OMFT
• Origin：China
• HS Code：842890
• Production Capacity：7000 PCS,Year

Basic Info.

Model NO. JCPT Running Mode Moving Feature Explosion-Proof, Insulating Certification GS, CE, ISO 9001 Color Customized Power 1.5-4kw Load Capacity 230-450kg Guardrail Folded Transport Package Standard Sea Freight Packing Specification steel+rubber Trademark OMFT Origin China HS Code 842890 Production Capacity 7000 PCS/Year

Product Description

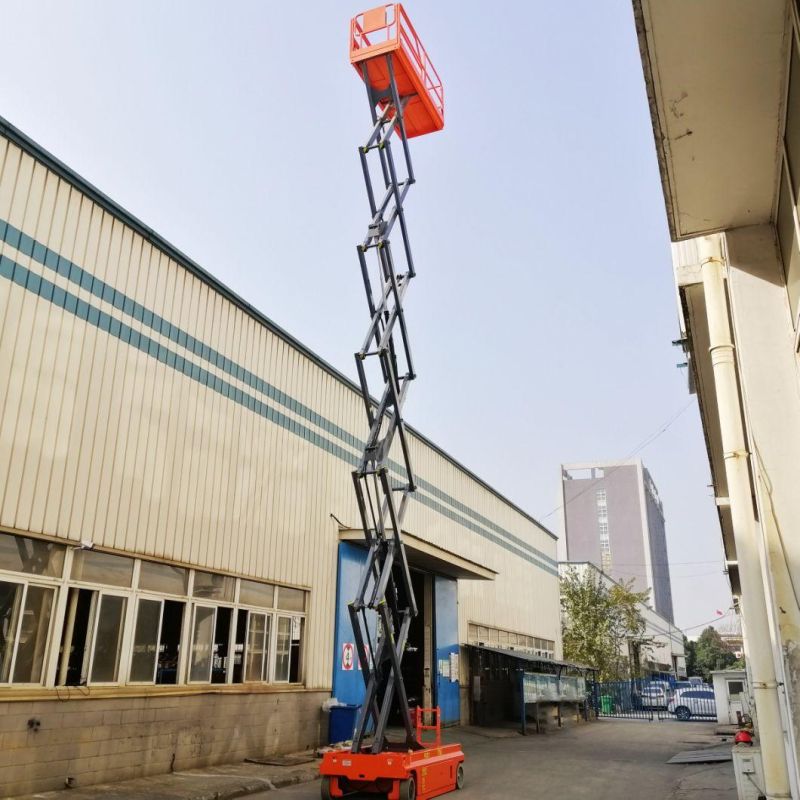

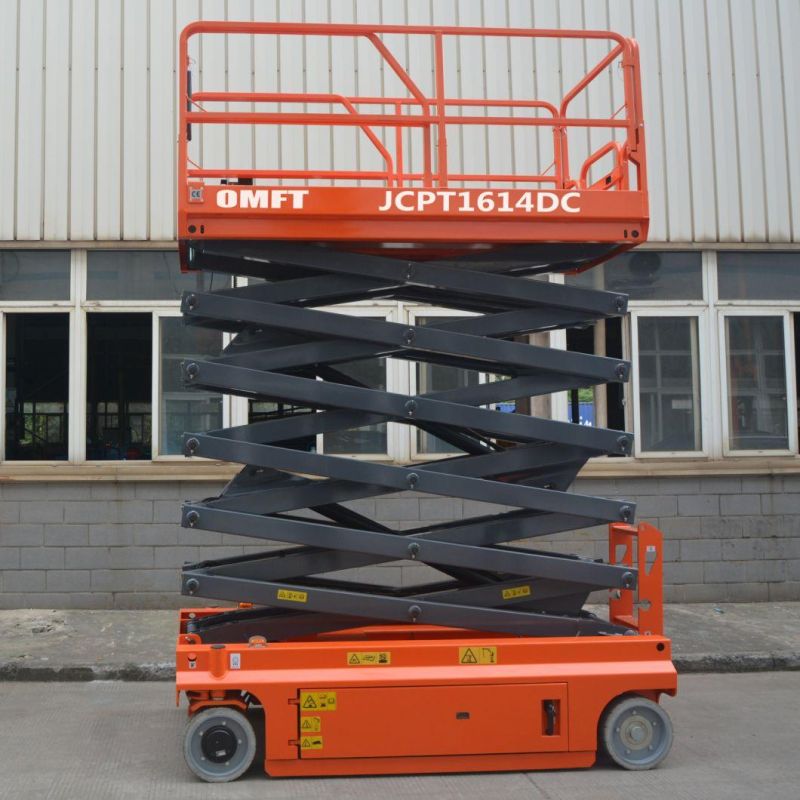

4m 6m 8m 10m 12m 14m Electric Power Self Propelled Hydraulic Automatic Scissor Lifting Platform on  Tracks




Product Description:

1.Products advantages

• SELF PROPELLED SCISSOR LIFT
  Electric drive system
  Scissor electric drive series features:
  1. Automatic pit protection;
  2. Limit switch;
  3. Automatic fault diagnosis;
  4. Automatic tilt protection (Angle sensor + pressure sensor);
  5. Safety maintenance support rod;
  6. Emergency Lowering system;
  7. Automatic braking system;
  8. Pedal-operated extended platform;
  9. Folded Guardrails;
  10. Horn, Cellular alarm, working Hour Meter;
  11. Anti-clamping hand;
  12. With toolbox and aerial electrical take;
  13. Strobe light;
  14. Multiple signs;
  15. Visual control panel power, battery power, etc.;
  16. Two control panels, emergency button;
  17. Bilateral side pull door opening, convenient maintenance, etc.;


2.Moving method

• The chargeable battery provides the power to move and steer around.

3. Lifting Power

• The chargeable battery provides the power to raise up the lift platforms.
• Working heights rangs from 4m,6m,8m,9m,10m,12m,14m.

4. Applications

•  It is widely used for aerial installation and maintenance of the working sites without power supply and  with smooth working grounds, such as hotels, grand hall, sport stadium, large factory, workshops,  warehouse, granary,bus/railway stations, hotels,airports, gas station and aerial pipeline
