• Model NO.：2.5mm
• Power Source：Lever
• Shape：One Leg
• Certification：ISO 9001, AISI, ASTM, BS, DIN, GB, JIS
• Sling Color：Customized
• End Parts：Wire Ropes Clips ,Shackels ,Thimble
• Application：Construction, Industrial etc
• Transport Package：Carton Wooden Box, as Requirement
• Specification：1-6mm
• Trademark：WELLDONE or Customized
• Origin：China
• HS Code：7312900000
• Production Capacity：300000PCS Per Month

1.Diameter

1.5mm,2.0mm,2.5mm ,etc

Custom-made available

2.construction

7*7,7X19,etc

3.material

galvanized or stainless

4.MOQ

100pcs

5.length

300mm-2000mm or as requirement

6.type

hanger wire/lighting cable/industrial cable /gym cable /wire ropes slings

end parts of fittings

shackesl ,Snap hooks ,locking gripper ,thimble,loops or other as required

Lead  time

7days if there were enough material in stock

sample

Free sample available if  all of dimensions same as our existing one ,if not ,contact me ,to get a cost efficient solution.

application

1.Wire rope Slings have been used extensively for years and were once the industrial lifting sling of choice.

2.They are sometimes referred to as wire cable slings and are more robust and durable

3.Wire rope slings are a basic material handling tool and are the most frequently used type of sling in industry today

specification

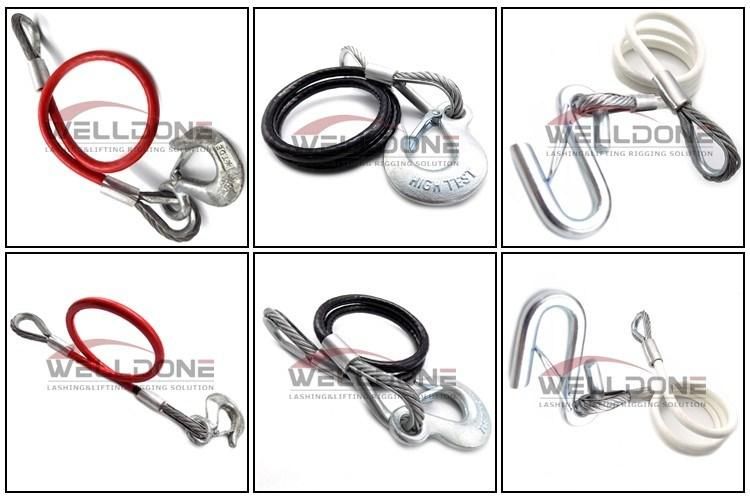

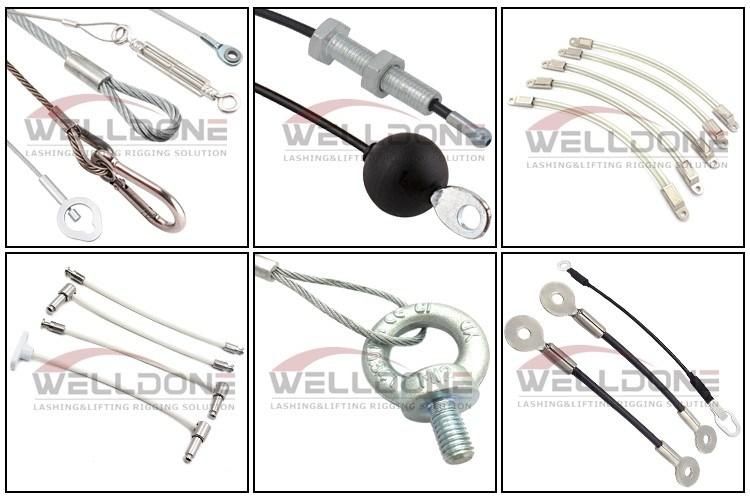

steel cable with loop and thimble

how to choose material:

1.stainless steel :

providing good corrosion resistance and strength comparable to galvanized carbon steel grades.

 2.galvanized steel:

Zinc coated carbon steel offers some corrosion resistance. It remains ductile over long periods of working. Usually higher break strengths than stainless steels.

Diameter

construction

weight(100m)

  Minimum Breaking load(N)

1.0mm

  1*19

 0.495

     950(95kg)



    7*7

 0.393

     650 (65kg)

 1.2mm

    1*19

0.713

   1440(144kg)



    7*7

 0.566

    950(95kg)

 1.5mm

    1*19

 1.114

   2200(220kg)



    7*7

 0.884

   1500(150kg)

 1.8mm

    1*19

 1.604

   3200(320kg)



    7*7

 1.273

   2100(210kg)

 2.0mm

    1*19

 1.98

   3900(390kg)



    7*7

 1.527

   2650(265kg)

 2.4mm

    1*19

 2.851

   5650(565kg)



    7*7

 2.264

   3800(380)kg

2.5mm

    1*19

 3.094

   6100(610kg)



    7*7

 2.381

   4100(410kg)

 3.2mm

    7*7

 4.024

   6850(685kg)



   7*19

 3.901

   6800(680kg)

3.8mm

   7*19

 5.675

   9650(965kg)



    7*7

 5.502

   9600(960kg)

4.0mm

   7*19

6.609

  12500(1250kg)

4.2mm

   7*7

6.933

  13000(1300kg)

4.5mm

   7*7

7.958

  13500(1350kg)

4.8mm

   7*19

8.778

  15300(1530kg)

6.0mm

   7*19

8.716

  23900(2390kg)

Certifications

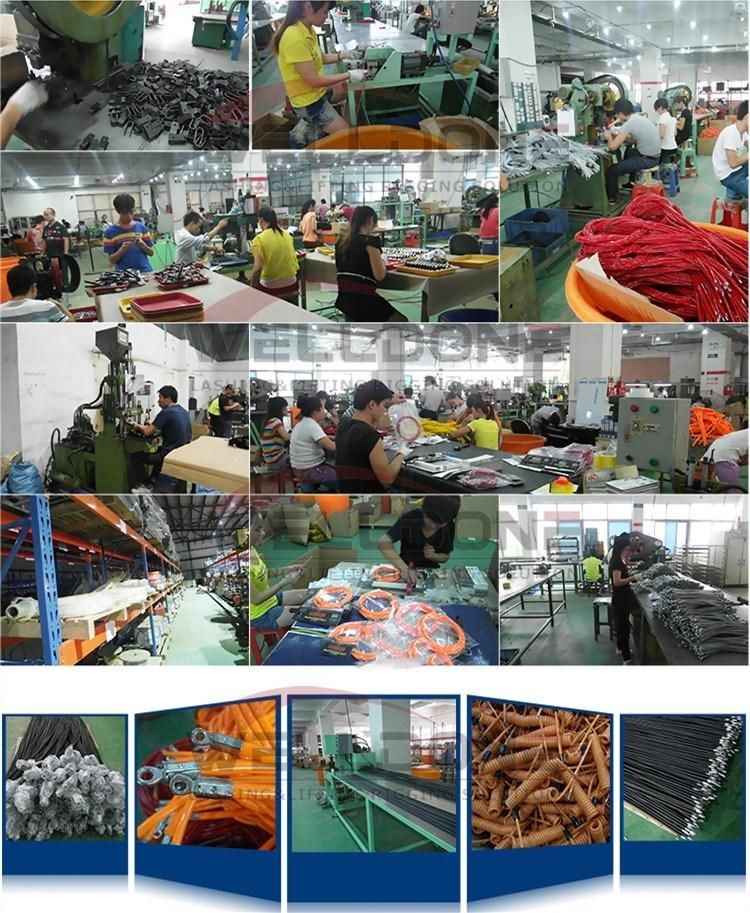

Factory/Pakage/Products picture


FAQ:
1.Can I be your agent?
Yes, welcome to deep cooperation. We have big promotion of WELLDONE brand in the market now. For the details please contact with our overseas manager.

 2.Is OEM available?
Yes, OEM is available. We have professional designer to help your brand promotion.

3.Is the sample available?
Yes, samples are available for you to test the quality.

4.Are the products tested before shipping?
Yes, all of our products was qualified before shipping.

5.What's your quality guarantee?
We have different kinds of products which can meet different quality standard.
WELLDONE QC department will test products before shipping. We have 100% quality guarantee to customers.
We will be responsible for any quality problem.

6.What's benefit will you bring?
Your client satisfied on the quality.
Your client continued orders.
You can get good reputation from your market and obtain more orders.
