Hydraulic Electric Controller Lifting Lift Table
Jinan PLK Machinery Co., Ltd.- After-sales Service：Online Service, Free Express Accessories.
- Warranty：12 Months
- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Scissor Lift
- Carrying Capacity：Middle-Level
- Moves：Stationary
Base Info
- Model NO.：HW HD HT HF
- Driven Type：Hydraulic
- Running Mode：Stationary
- Feature：Explosion-Proof
- Certification：GS, CE, RoHS, ISO 9001
- Voltage：220V 380V
- Color：Customized
- Surface：Power Coated
- Load Capacity：Customized
- Lifting Height：Customized
- Size：Customized
- Operation：Control Panel
- Control：Button
- Remote：Option
- Lifting Eye：Option
- Structure：Scissor
- Motor：Customized
- Material：Steel
- Transport Package：High Quality Box
- Specification：1300*820*2000mm 320kg
- Trademark：PLK LIFT
- Origin：China(Mainland)
- HS Code：8428909090
- Production Capacity：1000 Set,Month
Description
Single scissor
1ph or 3ph160 HW1002 1000 205 1000 1600×1000 20~25 186 HW1003 1000 240 1300 1700×850 30~35 200 HW1004 1000 240 1300 1700×1000 30~35 210 HW1005 1000 240 1300 2000×850 30~35 212 HW1006 1000 240 1300 2000×1000 30~35 223 HW1007 1000 240 1300 1700×1500 30~35 365 HW1008 1000 240 1300 2000×1700 30~35 430 HW2001 2000 230 1000 1300×850 20~25 235 HW2002 2000 230 1050 1600×1000 20~25 268 HW2003 2000 250 1300 1700×850 25~35 289 HW2004 2000 250 1300 1700×1000 25~35 300 HW2005 2000 250 1300 2000×850 25~35 300 HW2006 2000 250 1300 2000×1000 25~35 315 HW2007 2000 250 1400 1700×1500 25~35 415 HW2008 2000 250 1400 2000×1800 25~35 500 HW4001 4000 240 1050 1700×1200 30~40 375 HW4002 4000 240 1050 2000×1200 30~40 405 HW4003 4000 300 1400 2000×1000 35~40 470 HW4004 4000 300 1400 2000×1200 35~40 490 HW4005 4000 300 1400 2200×1000 35~40 480 HW4006 4000 300 1400 2200×1200 35~40 505 HW4007 4000 350 1300 1700×1500 35~40 570 HW4008 4000 350 1300 2200×1800 35~40 655 HD1000 1000 305 1780 1300X820 35-45 Multi scissor
1ph or 3ph 210 HD2000 2000 350 1780 1300X850 35-45 295 HD4000 4000 400 2050 1700X1200 55-65 520 HT1000 1000 470 3000 1700x1000 35-45 450 HT2000 2000 560 3000 1700x1000 50-60 750 HF400 400 600 4140 1700x1000 30-40 800 HF800 800 706 4210 1700x1000 70-80 858
Features & Advantages:
1ph or 3ph
1ph or 3ph
Features & Advantages:

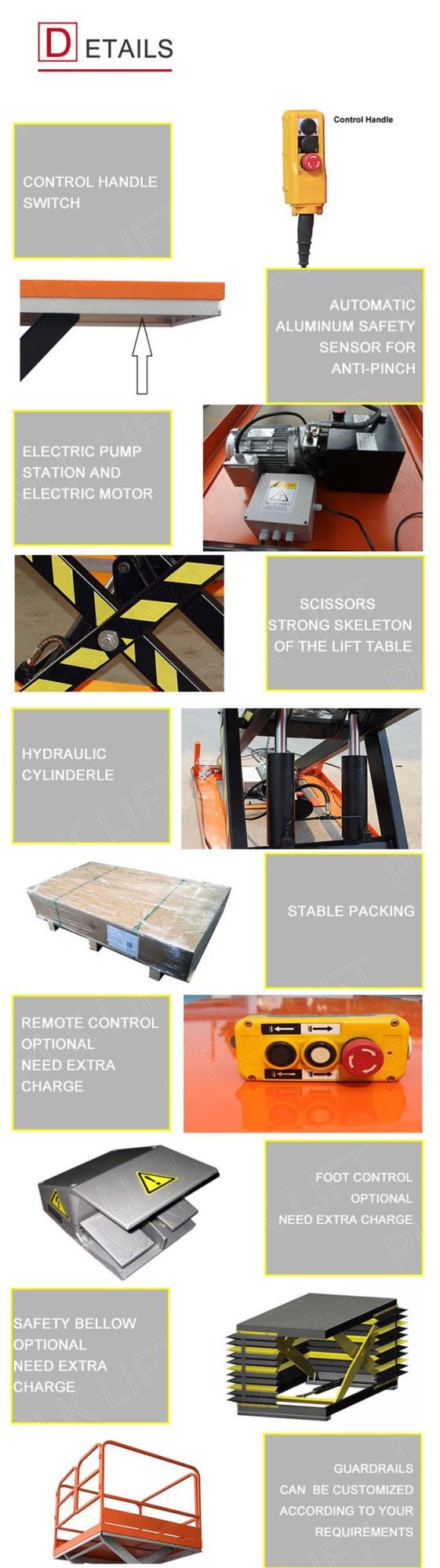

- Surface treatment: shot blasting and stoving varnish with anti-corrosion function.
- High quality pump station makes scissor lift table lifts and fall very stable.
- Anti-pinch scissor design; main pin-roll place adopts self-lubricating design which prolong life span.
- Removable lifting eye to help lift the table and install.
- Heavy duty cylinders with drainage system and check valve to stop the lift table dropping in case of hose burst.
- Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
- Equipped with aluminum safety sensor under the platform for anti-pinch while dropping.
- Up to American standard ANSI/ASME and Europe standard EN1570
- Safe clearance between scissor to prevent damages during operation.
- Brief structure make it much easier to operate and maintain.
- Stop at the per-concerted and accurate location point.
- Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
- Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
- Emergency decline valve: it can go down when you meet an emergency or the power off.
- Overload protection locking device: in case of dangerous overload.
- Anti-dropping device: Prevent falling of platform.
- Automatic aluminum safety sensor: lift platform will stop automatically when come across barriers.
