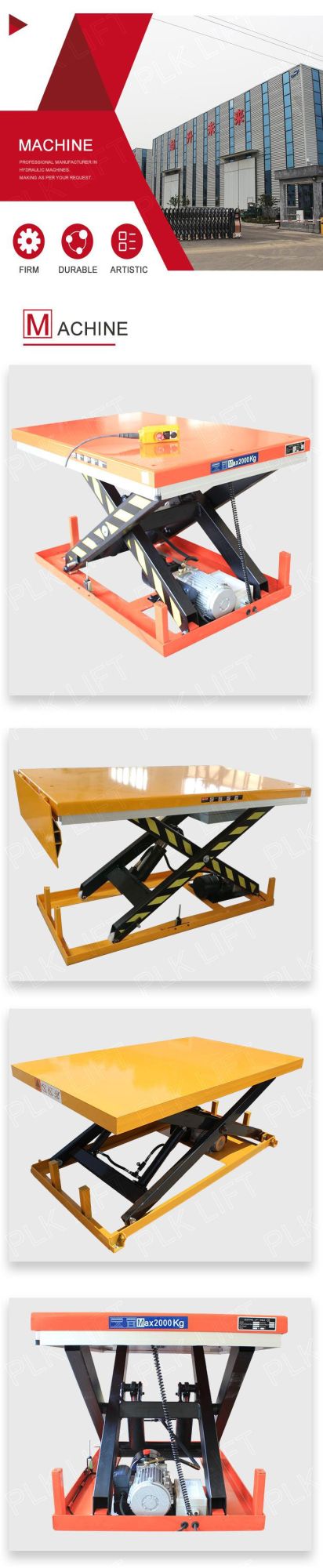

Standard Scissor Lift Table Working Platform Lift
Jinan PLK Machinery Co., Ltd.- After-sales Service：Online Service, Free Express Accessories.
- Warranty：12 Months
- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Scissor Lift
- Carrying Capacity：Middle-Level
- Moves：Stationary
Base Info
- Model NO.：HW
- Driven Type：Hydraulic
- Running Mode：Stationary
- Feature：Explosion-Proof
- Certification：GS, CE, RoHS, ISO 9001
- Voltage：220V 380V
- Color：Customized
- Package：Standard
- Motor Power：1.1kw-7.5kw
- Product Name：Lift Table
- Type：Hydraulic Cylinder Drive
- Usage：Lifting
- Control Methods：Wire,Wireless Control
- Lifting Speed：3-6m,Min
- Main Material：Q235
- Power Supply：AC 110,220,230,380,415V
- Transport Package：High Quality Box
- Specification：1300*820*2000mm 320kg
- Trademark：PLK LIFT
- Origin：China(Mainland)
- HS Code：8428909090
- Production Capacity：1000 Set,Month
Description
1000Kg Load Capacity Standard Scissor LiftHW1001 1000 1300×820 205 1.1 160 HW1002 1000 1600×1000 205 1.1 186 HW1003 1300 1700×850 240 1.1 200 HW1004 1300 1700×1000 240 1.1 210 HW1005 1300 2000×850 240 1.1 212 HW1006 1300 2000×1000 240 1.1 223 HW1007 1300 1700×1500 240 1.1 365 HW1008 1300 2000×1700 240 1.1 430
Features & Advantages:
Contact Information:
Grace Wang- Sales Manager
Jinan PLK Machinery Co., Ltd
URL: plklift.en.made-in-china.com

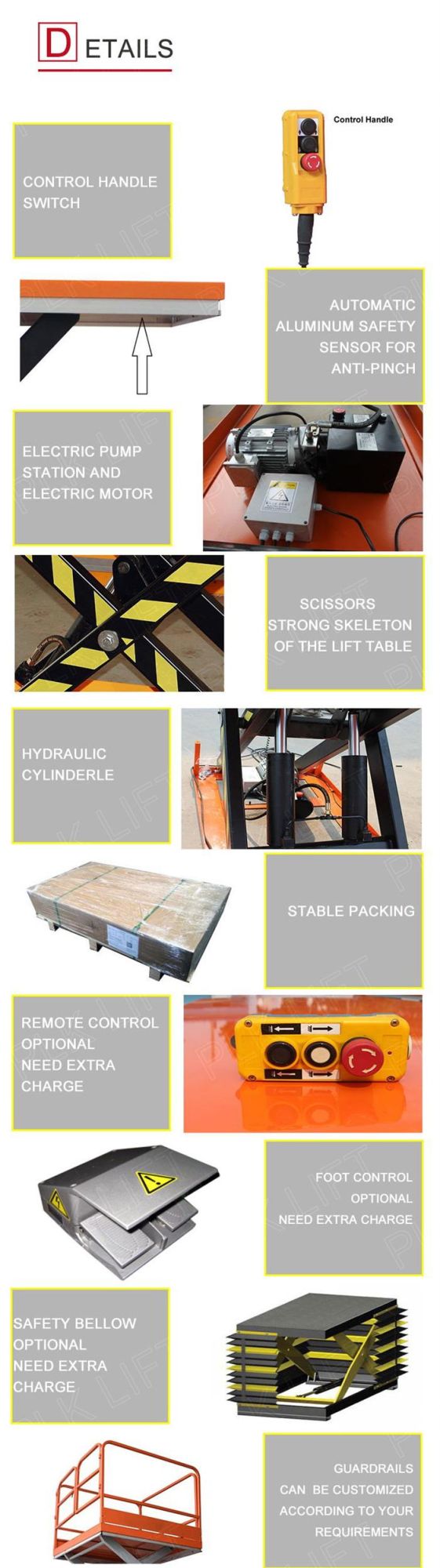

Features & Advantages:
- Surface treatment: shot blasting and stoving varnish with anti-corrosion function.
- High quality pump station makes scissor lift table lifts and fall very stable.
- Anti-pinch scissor design; main pin-roll place adopts self-lubricating design which prolong life span.
- Removable lifting eye to help lift the table and install.
- Heavy duty cylinders with drainage system and check valve to stop the lift table dropping in case of hose burst.
- Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
- Equipped with aluminum safety sensor under the platform for anti-pinch while dropping.
- Up to American standard ANSI/ASME and Europe standard EN1570
- Safe clearance between scissor to prevent damages during operation.
- Brief structure make it much easier to operate and maintain.
- Stop at the per-concerted and accurate location point.
- Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
- Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
- Emergency decline valve: it can go down when you meet an emergency or the power off.
- Overload protection locking device: in case of dangerous overload.
- Anti-dropping device: Prevent falling of platform.
- Automatic aluminum safety sensor: lift platform will stop automatically when come across barriers.
