Manual Wheelchair Ramp Manual Folding Wheelchair for Van (BMWR-3)

Changzhou Xinder-Tech Electronics Co., Ltd.
  • Application：Van, Minivan
  • Lift Mechanism：Manual
  • Carrying Capacity：350kg
  • Moves：Stationary
  • Driven Type：Manual
  • Running Mode：Stationary

Base Info

  • Model NO.：BEWR-301
  • Certification：CE
  • Platform Size：810*2210mm
  • Deadweight：45kg
  • Loading Capacity：350kg
  • Material：Aluminum Board
  • Driving Mode：Manual
  • Test：100000 Times
  • Installation：at The Rear Door of Vehicle
  • Transport Package：Wooden Case
  • Specification：810mm width
  • Trademark：Xinder
  • Origin：Changzhou Jiangsu China
  • HS Code：8428909090
  • Production Capacity：500 Sets Per Month

Description

Installed at the side or rear door of vehicle, such as van, minivan, truck and so on.BMWR-302Manual2700 × 810 mmBMWR-303Manual3300 × 810 mmBMWR-304Manual3900 × 810 mm

SAFETY FUNCTION:
1. The main material of platform is high-strength aluminunm alloy, which is anti-skidding and with strong loading capacity
2. There is warning sticker at the edge of ramp

INSTALLATION:

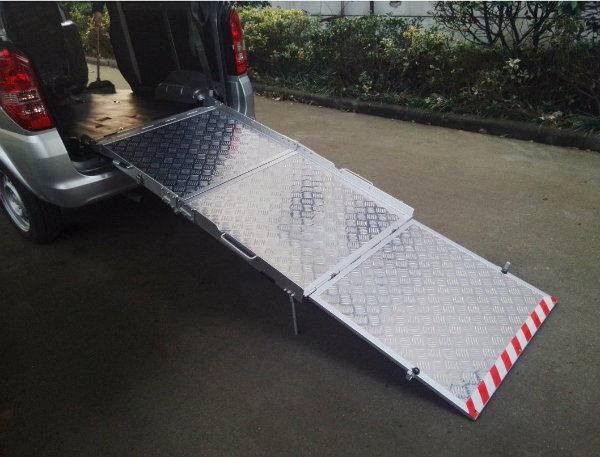

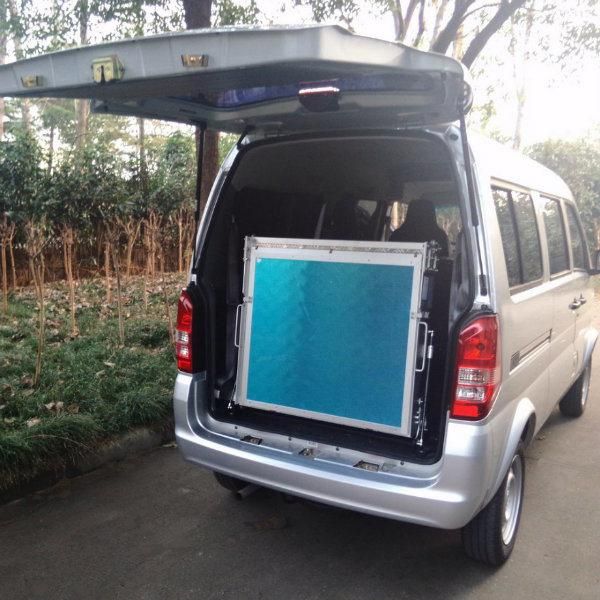

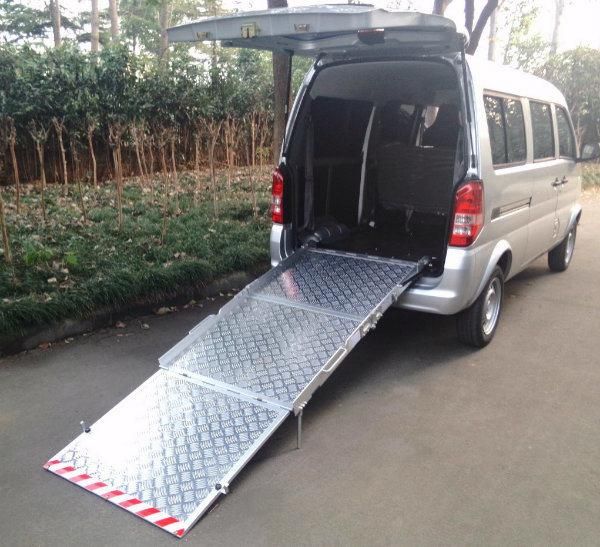

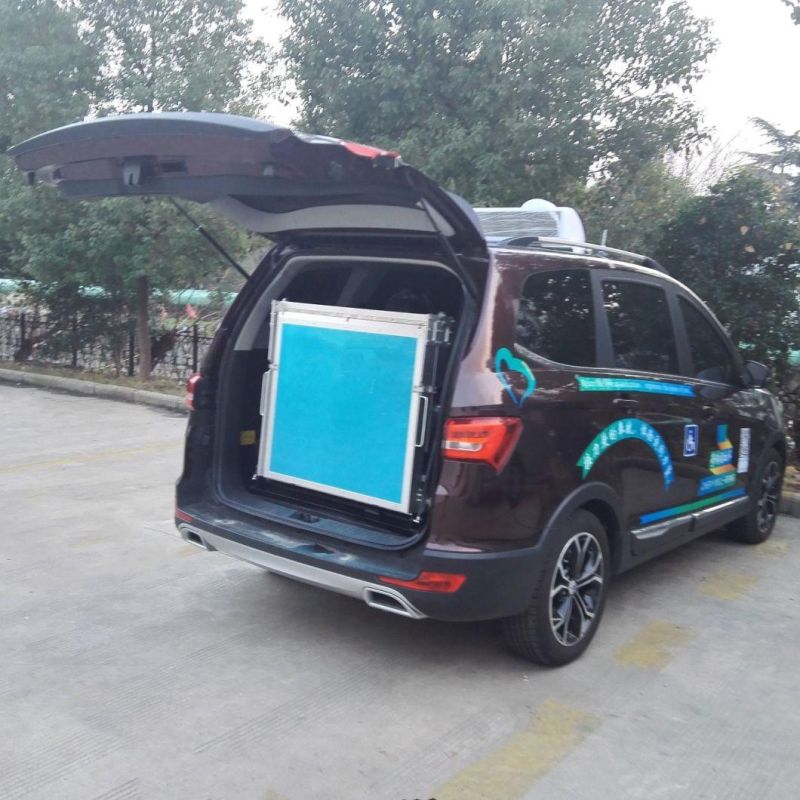

It is installed at the rear door of van, minivan or car. To unfold the ramp to build a slope between vehicle floor and ground, then the wheelchair may get into vehicle easily. During working, this ramp will first reduce the floor height, so it can be widly used for van, minivan and car.

ADJUSTMENT:
This series wheelchair ramp has several sizes for choice. Customer should inform us the size needed or the size of vehicle door, we will provide the suitable wheelchair ramp.Model Platform Net Size  (A×B)Overall width (C)Overall height (D)Overall Length (E)Loading capacityOwn weightBMWR-3012240×810880 mm850 mm265 mm350 Kg40 KgBMWR-3022700×810880 mm1050 mm265 mm350 Kg45 KgBMWR-3033300×810880 mm1250 mm265 mm350 Kg50 KgBMWR-3043900×810880 mm1450 mm265 mm350 Kg55 Kg
