Electric Slipway Winch Used for Marine Ship

Pingyang Construction Hoisting Machinery Co.
  • After-sales Service：Online Support
  • Warranty：1year
  • Type：Electric Winch
  • Driven Type：AC
  • Speed：Slow
  • Carrying Capacity：Weight Level

Base Info

  • Tonnage：50t
  • Reel Number：1
  • Running Mode：Stationary
  • Feature：Insulating
  • Certification：ISO 9001
  • Standard：Nonstandard
  • Power：110kw
  • Transport Package：Wooden Case
  • Specification：Jm-50
  • Trademark：CH
  • Origin：China
  • HS Code：8425319000
  • Production Capacity：10000 Units,Year

Description

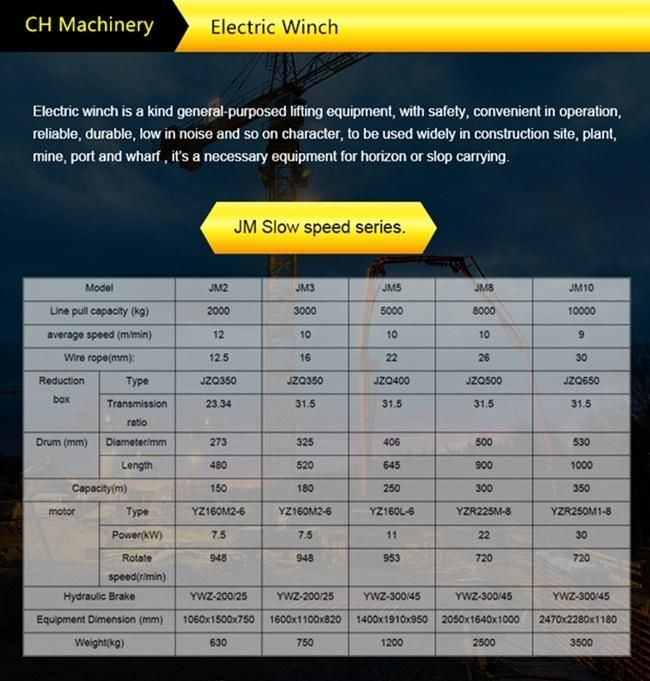

ModelJM2JM3JM5JM8JM10Line pull capacity (kg)200030005000800010000average speed (m/min)1210101010Wire rope(mm):12.515.521.52630Reduction boxTypeJZQ350JZQ350JZQ400JZQ500JZQ650Transmission ratio23.3431.523.3431.540.17Drum (mm)Diameter/mm273325406500530Length4805206459001000Capacity(m)150180250300350motorTypeYZ160M2-6YZ160M2-6YZ160L-6YZR225M-6YZR225M-6Power(kW)7.57.5112230Rotate speed(r/min)948948953720962Hydraulic BrakeYWZ-200/25YWZ-200/25YWZ-300/45YWZ-300/45YWZ-300Packing Dimension (mm)1060x1500x7501600x1100x8201400x1910x9502050x1640x10002470x2280x1180G. Weight(kg)630680140030004000 Electric Slipway Winch Used for Marine ShipElectric Slipway Winch Used for Marine ShipElectric Slipway Winch Used for Marine ShipElectric Slipway Winch Used for Marine ShipElectric Slipway Winch Used for Marine ShipElectric Slipway Winch Used for Marine Ship
