XCMG Official 14m Ce Wheel Telescopic Boom Aerial Work Platform

Xuzhou Construction Machinery Group Co., Ltd.
  • Wheel Base：2100mm
  • Weight：6800kg
  • Max. Lifting：16m
  • Maximum Load Capacity：230kg
  • Maximum Grade Ability：45%
  • Rated Power of Engine：38,(3000)Kw,(R,Min)

Base Info

  • Model NO.：GTBZ14E
  • Maximum Working Height：15.9m
  • Maximum Platform Height：14.2m
  • Platform Size：1830*760*1150mm
  • Maximum Travel Speed：6.1km,H
  • Transport Package：Comply with Export Packaging Requirements
  • Specification：1830*7608*1150mm
  • Trademark：XCMG
  • Origin：Jiangsu, China
  • HS Code：84301000
  • Production Capacity：1000 , Year

Description

Overview Product Parameters ItemUnitParametersa Overall Lengthmm5780b Overall Widthmm2260c Overall Heightmm2130d Wheel Basemm2100Maximum Working Heightm15.9Maximum Platform Heightm14.2Maximum Working Rangem8.09Maximum Load Capacitykg2301stBoom luffing Range°0~+602ndBoom luffing Range -22~+75Rotation Angle of Rotating Platform°355Maximum Tail Waggingmm0Platform Sizemm1830×760×1150Platform turning angle°180Total Weightkg6800Maximum Travel Speedkm/h6.1Minimum Turning Radiusm4.5Minimum Ground Clearancemm250Maximum Grade Ability%45Tire Specification-315/55D20Engine Model-Deutz

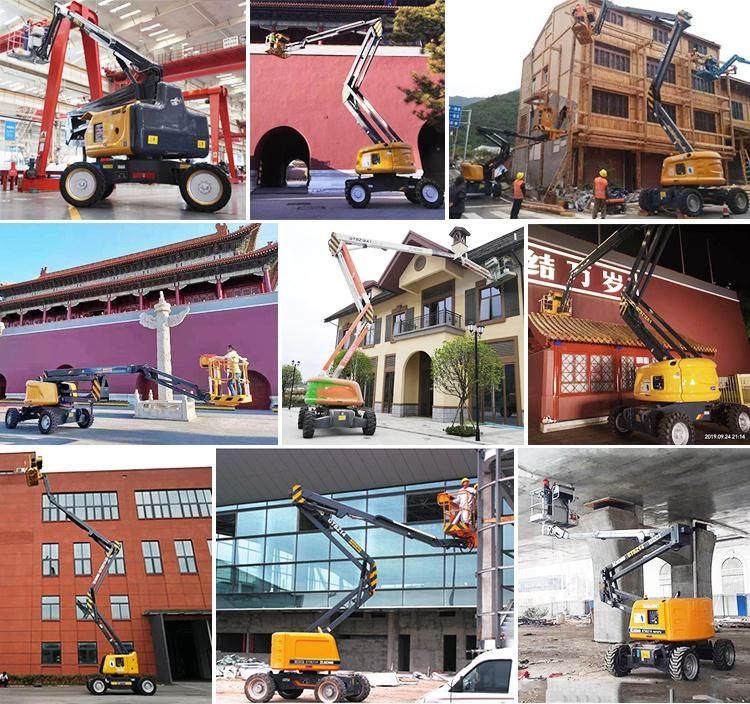

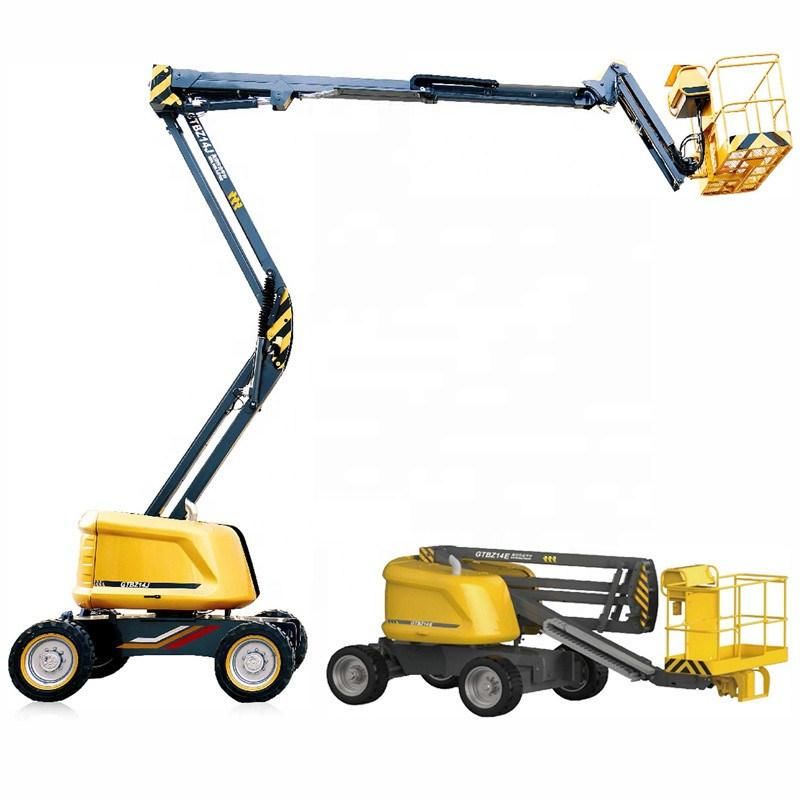

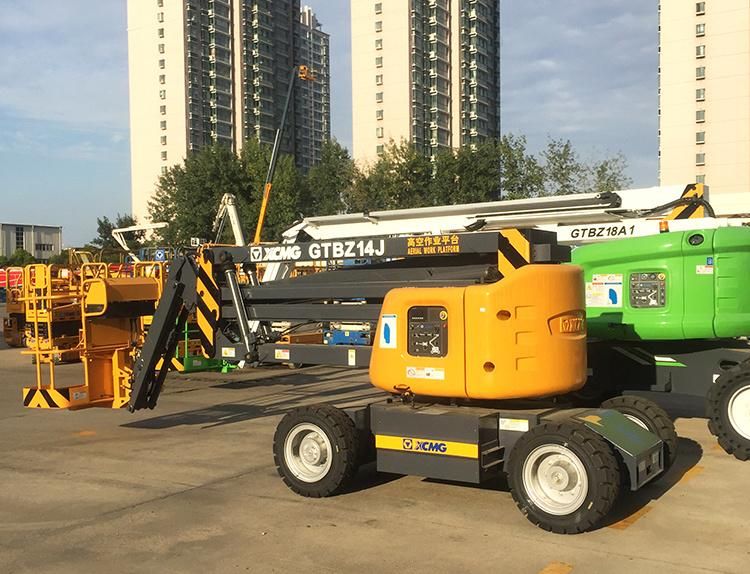

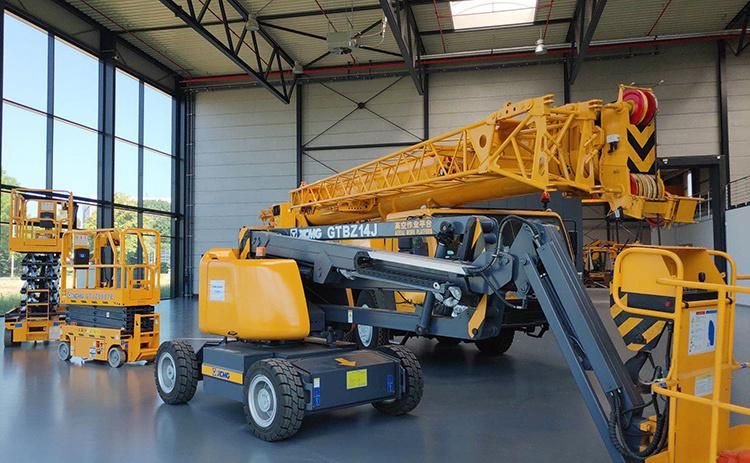

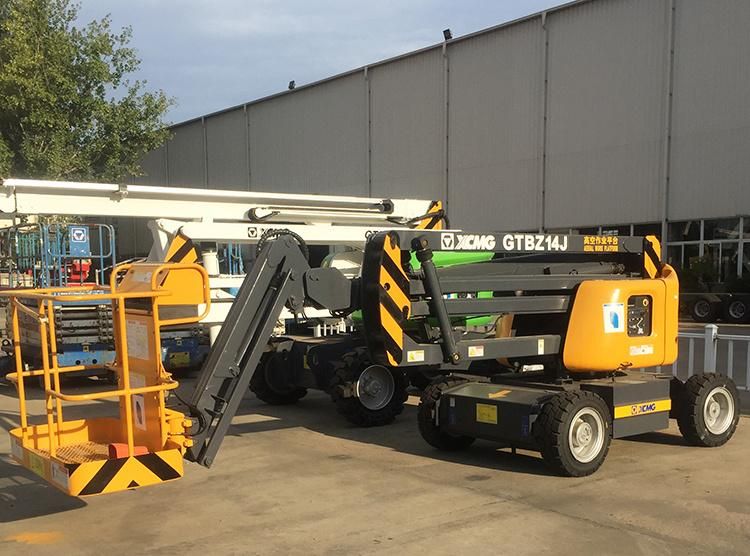

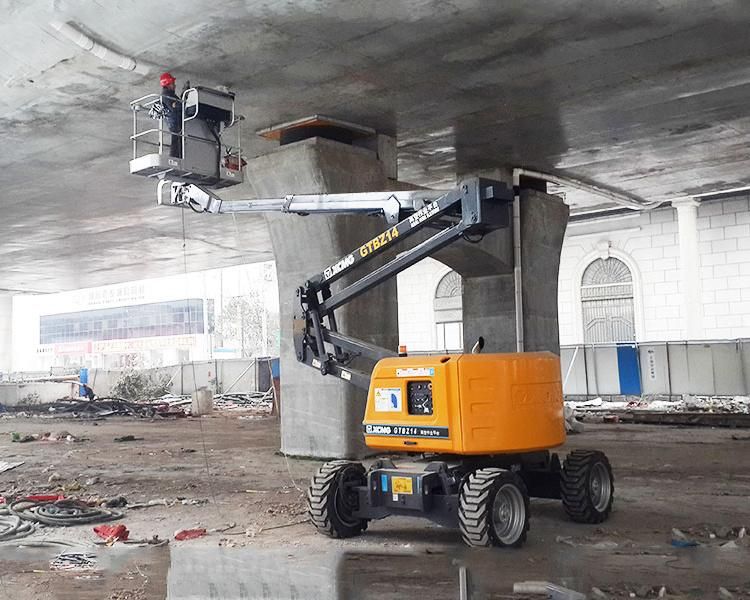

D2011 L03iRated Power of EnginekW/(r/min)36.3/(2800)Product ShowXCMG Official 14m Ce Wheel Telescopic Boom Aerial Work PlatformXCMG Official 14m Ce Wheel Telescopic Boom Aerial Work PlatformXCMG Official 14m Ce Wheel Telescopic Boom Aerial Work PlatformXCMG Official 14m Ce Wheel Telescopic Boom Aerial Work PlatformXCMG Official 14m Ce Wheel Telescopic Boom Aerial Work Platform
XCMG Official 14m Ce Wheel Telescopic Boom Aerial Work PlatformCompany Profile


XCMG Official 14m Ce Wheel Telescopic Boom Aerial Work Platform

XCMG Official 14m Ce Wheel Telescopic Boom Aerial Work Platform
XCMG Official 14m Ce Wheel Telescopic Boom Aerial Work Platform
XCMG Official 14m Ce Wheel Telescopic Boom Aerial Work PlatformFAQ

1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted

2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,

3: What about the delivery time?
A: 30 days after receiving the deposit.

4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.

5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
