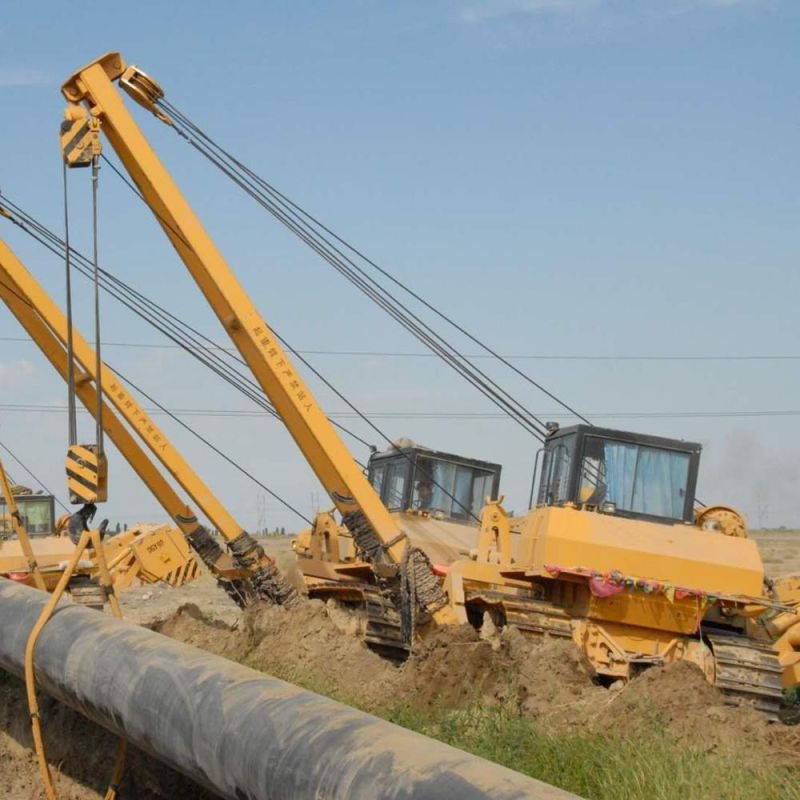

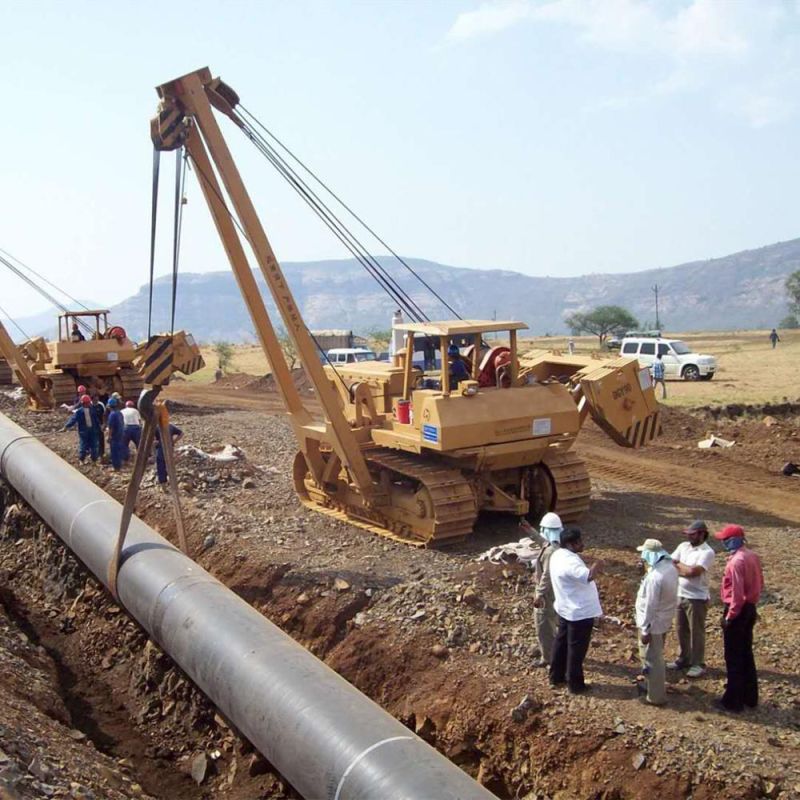

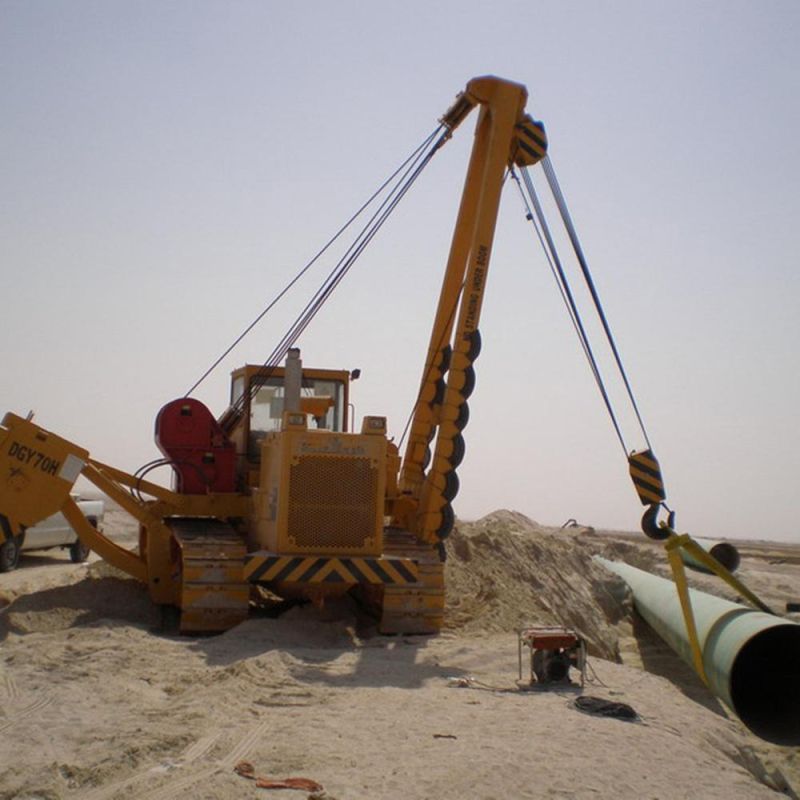

70tons China Side Boom Pipe Crane (DGY70H)

Wuhan Kudat Industry & Trade Co., Ltd.
  • Max. Lifting Capacity Ton：70
  • Boom Length M：7
  • Max. Lifting Height of The Hook M：5.2
  • Hoisting Speed (6times) M/Min：6
  • Chassis Model：Dgy70h
  • Engine Model：Cummins Nt855-C360

Base Info

  • Model NO.：DGY70H
  • Engine Power Kw/Rpm：239,2000
  • Track Gauge mm：2280
  • Hydraulic Pump Model：Cbgj3100,3100,1010
  • Hydraulic Pump Pressure MPa：2.0
  • Transport Package：in Nude Package
  • Specification：CE
  • Trademark：Kudat
  • Origin：China
  • HS Code：84269900
  • Production Capacity：1000PCS,Year

Description

Max. lifting capacity Ton70Max. lifting moment at min. range of the boom kN.m836(686KNX1.22m)Max. lifting moment at max. range of the boomkN.m650(100KNX6.5m)Boom lengthm7Max. lifting height of the hookm5.2Hoisting speed (6times) m/min6Time of change ranges60Chassis model DGY-70HEngine model CUMMINS NT855-C360Engine powerkW/rpm239/2000Track gaugemm2280Track length on groundmm3620Track shoe widthmm760Hydraulic pump model CBGj3100/3100/1010Hydraulic pump pressureMpa20Lifting winchHydraulic driven, planetary transmission, free-fall functionRated pulling force of single rope (3rd layer)N100,000Wire rope diametermm22mmRanging winchHydraulic driven, planetary transmissionRated pulling force of single rope (2rd layer)N80,000Wire rope diametermm22mmMax. grade abilityo20Operation temperature (std.)oC-20 ~ +40Overall dimension
(LxWxH)with boommm5700x4850x7820without boommm5700x3430x3300Ground pressurewithout loadMpa0.093Operation weightkg51,00070tons China Side Boom Pipe Crane (DGY70H)70tons China Side Boom Pipe Crane (DGY70H)70tons China Side Boom Pipe Crane (DGY70H)70tons China Side Boom Pipe Crane (DGY70H)70tons China Side Boom Pipe Crane (DGY70H)70tons China Side Boom Pipe Crane (DGY70H)70tons China Side Boom Pipe Crane (DGY70H)70tons China Side Boom Pipe Crane (DGY70H)70tons China Side Boom Pipe Crane (DGY70H)70tons China Side Boom Pipe Crane (DGY70H)
