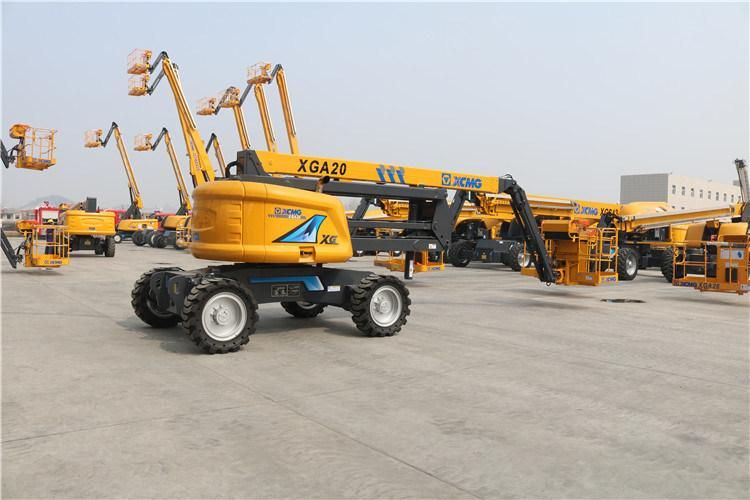

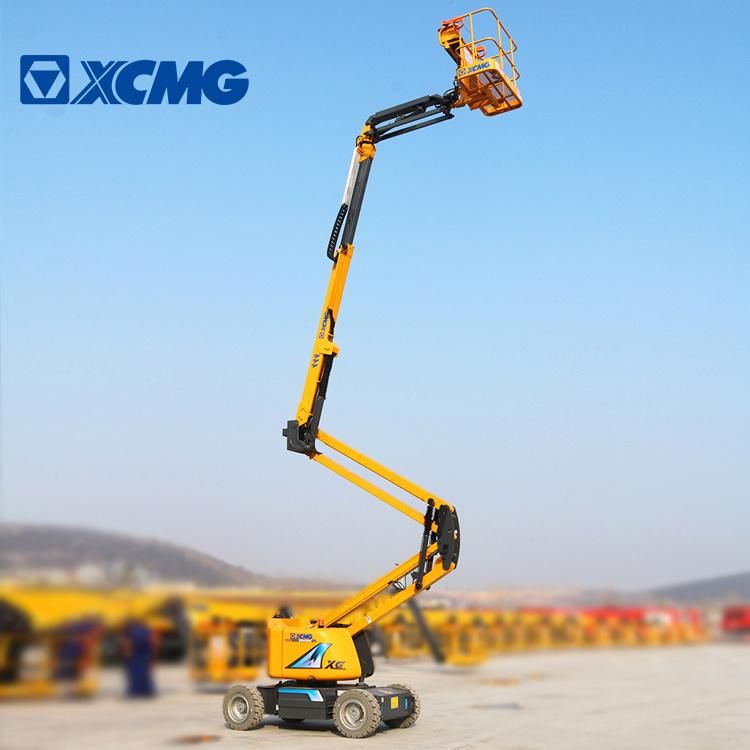

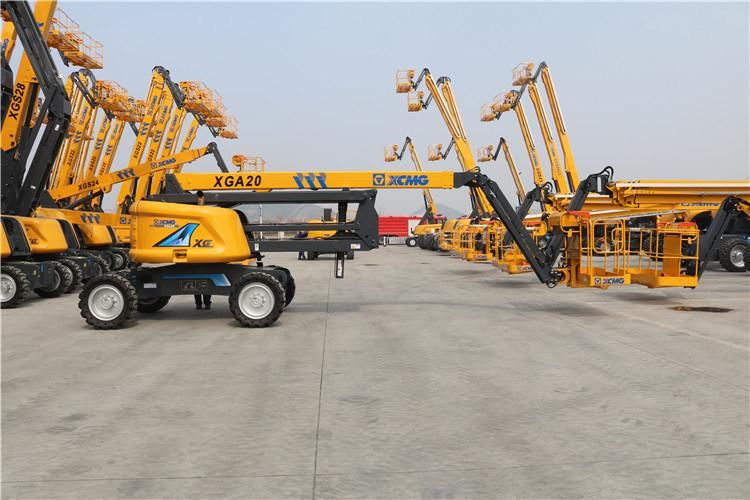

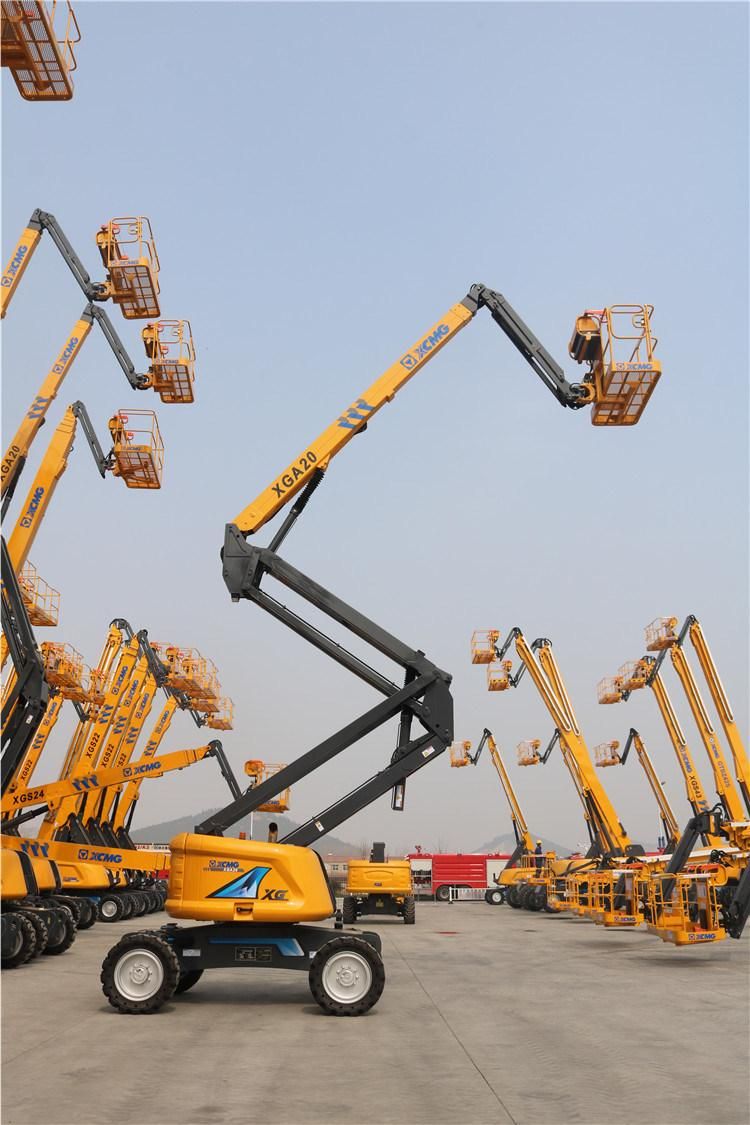

• Model NO.：XGA20
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Max. Gradeability：45%
• Engine Model：Perkins
• Table Size：1830*760*1150mm
• Transport Package：Comply with Export Packaging Requirements
• Specification：9080*2490*2680mm
• Trademark：XCMG
• Origin：Xuzhou, Jiangsu, China
• Production Capacity：10000

ItemUnitParameterOverall length of complete machinemm9080Overall width of complete machinemm2490Overall heightmm2680Wheelbasemm2500Max. working heightm20.4Max. platform heightm18.4Max. working rangem11.9Max. carrying weightkg230Scope of luffing of No.1 arm°0~+70Scope of luffing of Boom No.2°0~+75Crank arm luffing range°-65~70Slewing angle of turntable°360Max. Tail swingmm0Dimension of platformmm1830×760×1150Slewing angle of platform°160Overall weightkg10600Max. traveling speedkm/h6Min. turning radiusm6Min. ground clearancemm230Max. gradeability%45Specification of tire 355/55D625Engine model Perkins 404D-22Engine rated powerkW/(r/min)38/(3000)











FAQ

1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted

2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,

3: What about the delivery time?
A: 30 days after receiving the deposit.

4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.

5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
