XCMG 45ton Container Reach Stacker (XCS45) for Sale

Xuzhou Construction Machinery Group Co., Ltd.
  • Overall Dimensions：11295*6208*4489mm
  • Fork Length：1070mm
  • Fork Width：150mm
  • Rated Lifting Capacity：45000kg
  • Max. Lifting Height：15100mm
  • Max. Lifting Speed：425mm,S

Base Info

  • Model NO.：XCS45
  • Transport Package：Comply with Export Packaging Requirements
  • Specification：ISO
  • Trademark：XCMG
  • Origin：Xuzhou, Jiangsu, China
  • HS Code：87051022
  • Production Capacity：1000,Year

Description

Overview Product ParameterstemUnitParameters
Lifting performanceMax. lifting capacitykg45000Stacking capacity--5-5-4Max. hoisting speed (without/with load)mm/s350/200Max. lowering speed (without/with load)mm/s330/260Max. lifting heightmm15100

Traveling performanceMax. travel speed (without/with load)km/h27/23Drive mode--4×2, Front axle driveMax. grade-ability%30%Min. turning radiusm8.1Steering mode--Rear axle steeringWeightCurb masskg70995
DimensionOutline dimension (L×W×H)mm11295×6052×4489Wheel basemm6000Track (front wheel/rear wheel)mm3024/2750Min. ground clearancemm365Approach angle/Departure angle°17.5/26.5


Power

EngineModel--CumminsQSMPower/rotation speedkW/r/min250/2100
Emission standard
--Off-road U.S.EPA Tier3, EU Stage IIIATransmissionModel--ZF 5WG261Gear--FWD 5, REV 3Drive axleModel--Kessler D102PL241Product Show

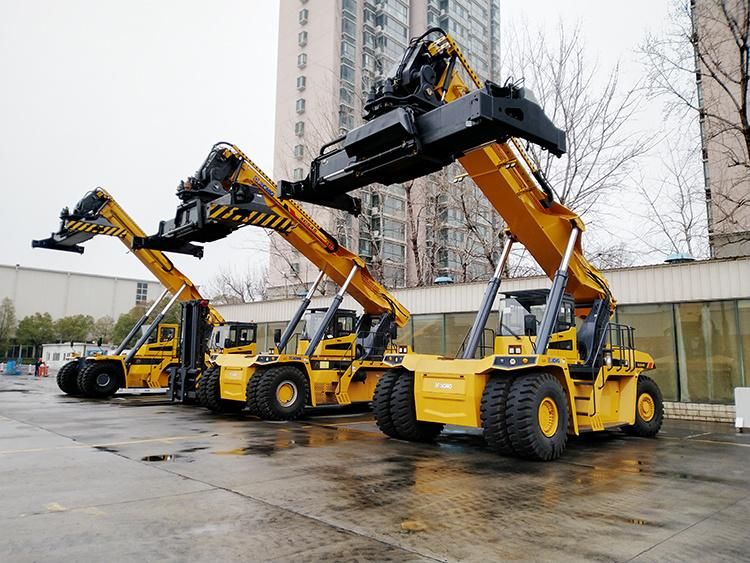

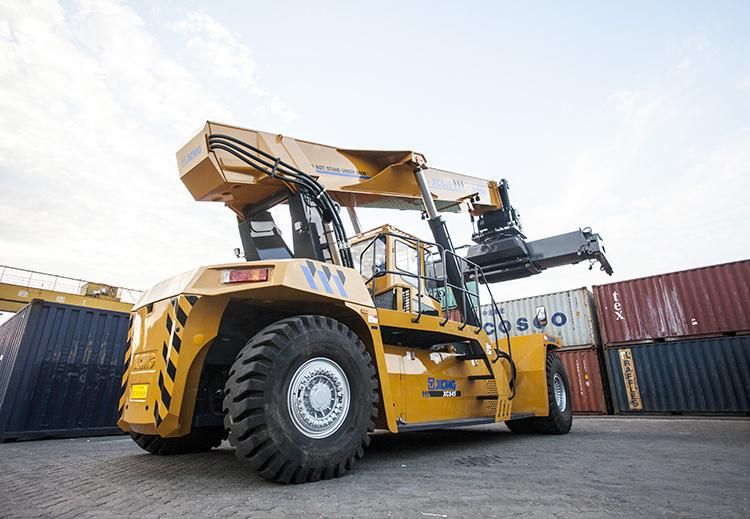

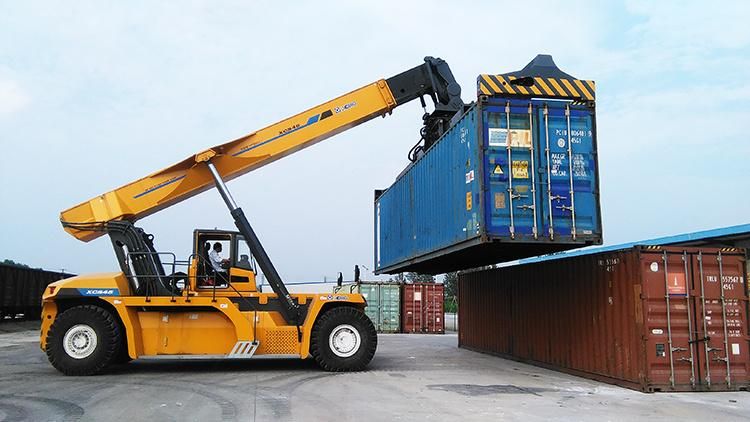

XCMG 45ton Container Reach Stacker (XCS45) for SaleXCMG 45ton Container Reach Stacker (XCS45) for SaleXCMG 45ton Container Reach Stacker (XCS45) for SaleXCMG 45ton Container Reach Stacker (XCS45) for SaleXCMG 45ton Container Reach Stacker (XCS45) for SaleXCMG 45ton Container Reach Stacker (XCS45) for SaleXCMG 45ton Container Reach Stacker (XCS45) for SaleCompany Profile

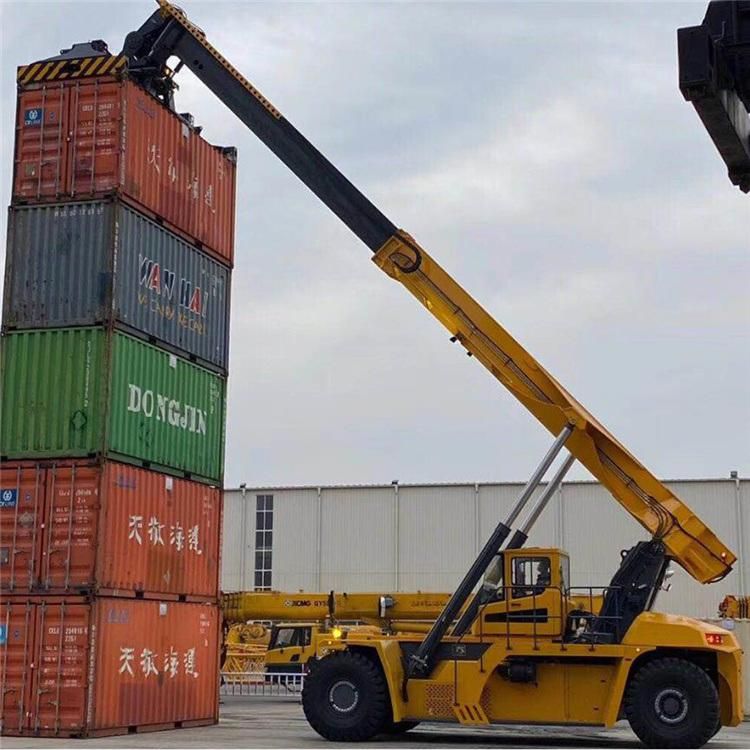

XCMG 45ton Container Reach Stacker (XCS45) for Sale

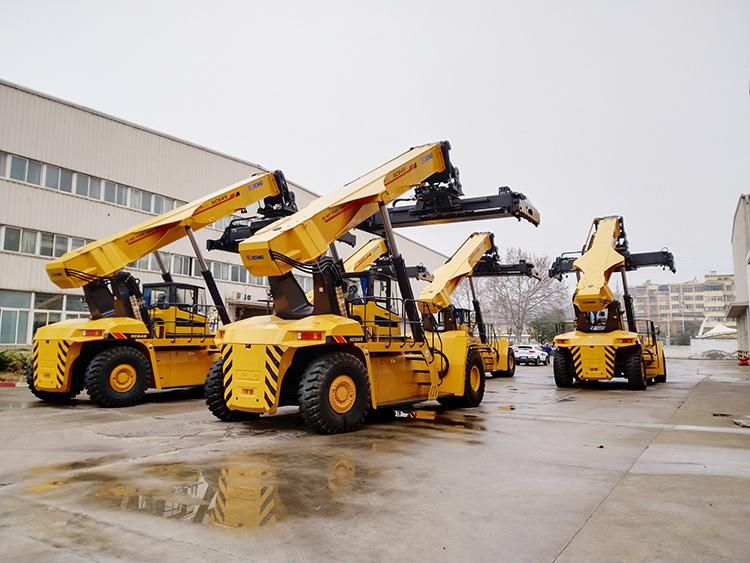

XCMG 45ton Container Reach Stacker (XCS45) for Sale

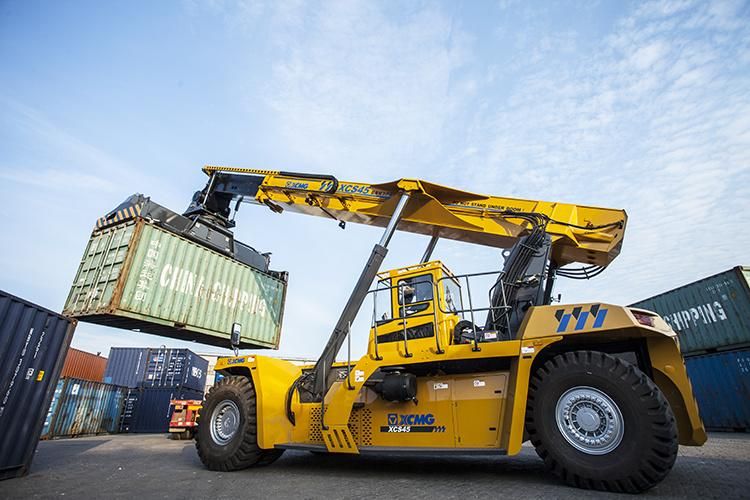

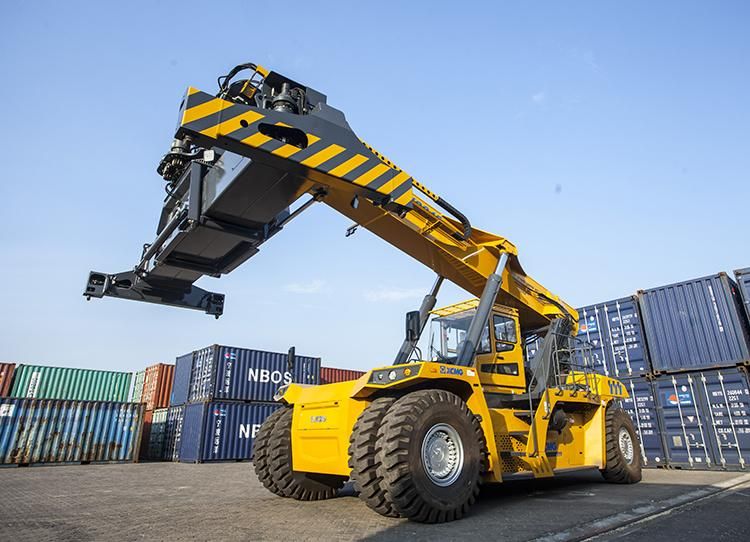

XCMG 45ton Container Reach Stacker (XCS45) for Sale

FAQ

1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted

2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,

3: What about the delivery time?
A: 30 days after receiving the deposit.

4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.

5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
