• Model NO.：TCH,HCH
• Certification：CE
• Condition：New
• Color：Black
• Brand Name：Hugong
• Payment Term：L,C T,T
• Loading Time：Shanghai Port or Tianjin Port
• Delivery Time：10 Days
• Warranty：1 Year
• Place of Original：China( Shanghai)
• Voltage：380V or as Your Request
• Hook：Forged
• Chain：G80
• Lifting Speed：4 M,Min
• Transport Package：Carton, Plywood, Pallet
• Specification：CE ISO
• Trademark：HUGONG
• Origin：Shanghai, China
• HS Code：8425190000
• Production Capacity：1000 ,Month

Basic Info.

Model NO. TCH/HCH Certification CE Condition New Color Black Brand Name Hugong Payment Term L/C T/T Loading Time Shanghai Port or Tianjin Port Delivery Time 10 Days Warranty 1 Year Place of Original China( Shanghai) Voltage 380V or as Your Request Hook Forged Chain G80 Lifting Speed 4 M/Min Transport Package Carton, Plywood, Pallet Specification CE ISO Trademark HUGONG Origin Shanghai, China HS Code 8425190000 Production Capacity 1000 /Month

Product Description

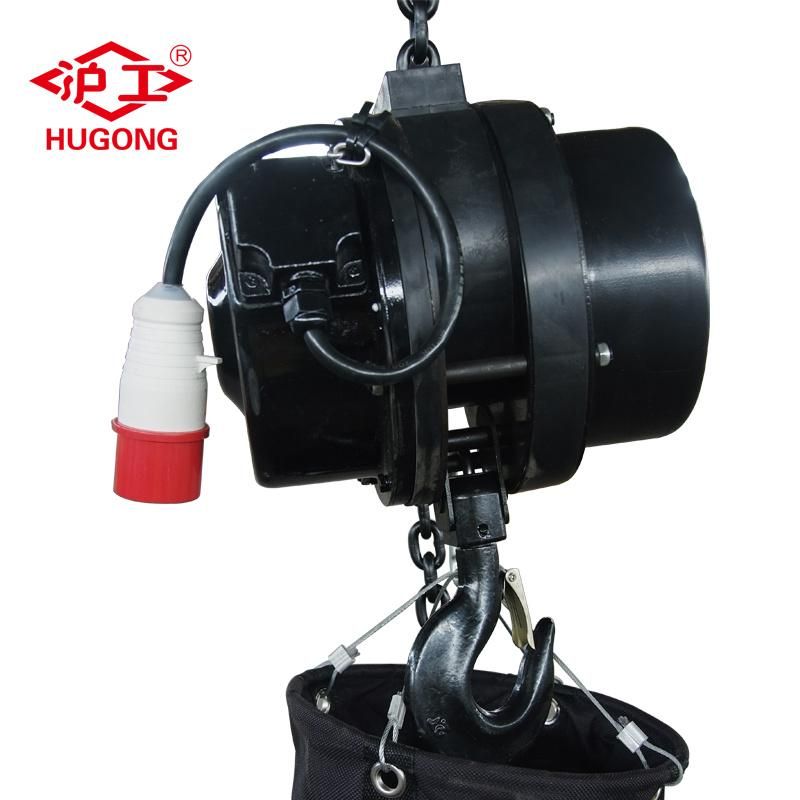

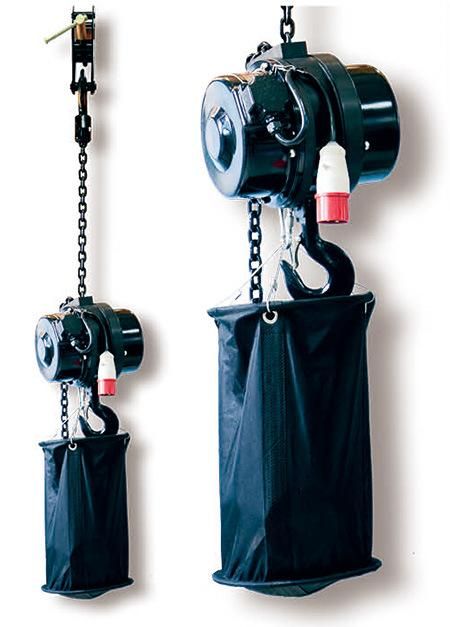

Cheapest Price Tch Stage Electric Hoist with Control Table

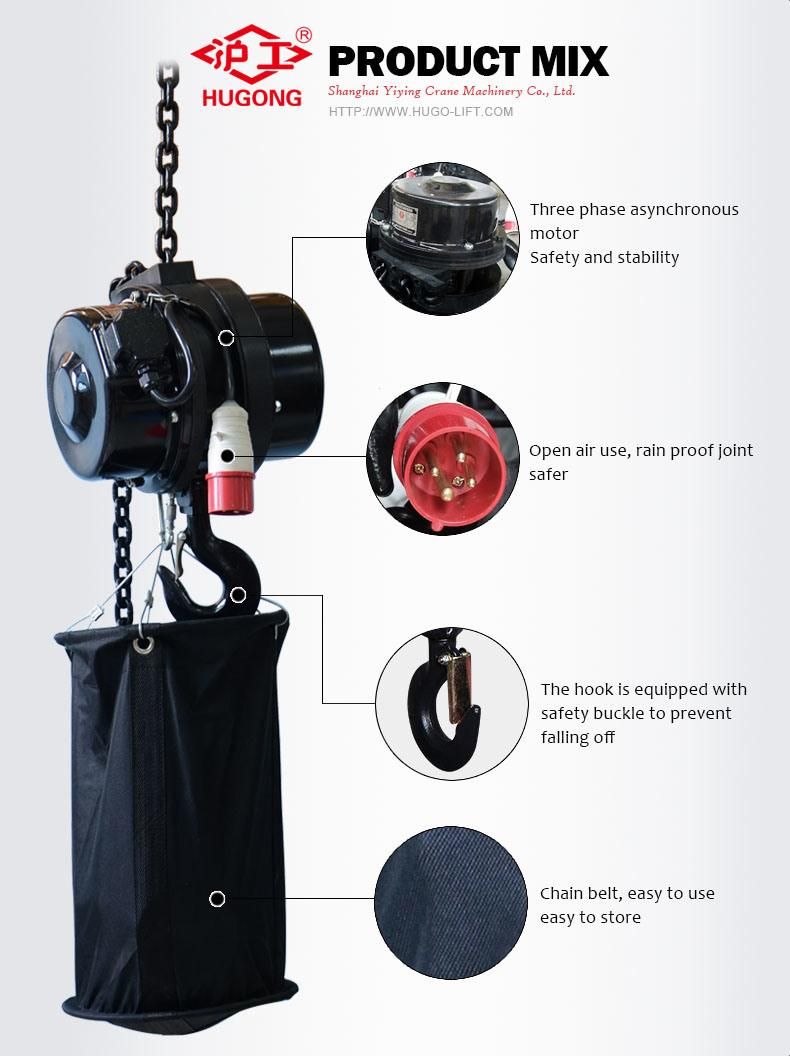

The introduction of TCH stage electric hoist


1. Truck load: 500kg, 1000kg, 2000kg

2. Improve speed: 4 m / min, 8 m / min, 16 m / min

3. Lifting speed: 26 meters or 85 feet to a standard height, the concrete can be customized according to customer requirements, up to 40 meters or 131 feet

4. Versatile: Suitable for 230 volts to 460 volts 3-phase

5. Light weight: Tensile steel shell

6. Use efficiency: Lifting its unique five-hole wheel, so that the chain improve balance

7. Reliability: Hoist clutch with overload protection, overload protection in the event of the operator's safety and product from damage

8. Safety: Life maintenance, and provide parts and technical support


Capacity(KG)	Model	Power(kw)	No. of load chain	Lift speed(m/min)	Weight of hoist without load chain(kg)	Weight of Load chain(Kg/m)
500	M6-W0.5A	0.42	1	4	30	1.1
500	M6-W0.5B	0.86	1	8	48	1.1
500	M6-W0.5C	0.83	1	4	48.5	1.1
1000	M6-W1A	1.5	1	8	50	1.1
1000	M6-W1B	0.86	2	2	52	2.2
2000	M6-W2A	1.5	2	4	54	2.2
2000	M6-W2B	1.5	1	16	50	1.1
