• Model NO.：TCH,HCH
• Certification：ISO9001: 2000, Ce
• Condition：New
• Color：Black
• Brand Name：Hugo
• Payment Term：L,C T,T
• Loading Time：Shanghai Port or Tianjin Port
• Delivery Time：10 Days
• Warranty：1 Year
• Place of Original：China( Shanghai)
• Voltage：220V-440V
• Hook：Forged
• Chain：G80
• Lifting Speed：8m,Min
• Power Source：Electric
• Transport Package：Carton, Plywood, Pallet
• Specification：CE ISO
• Trademark：HUGO
• Origin：Shanghai, China
• HS Code：8425190000
• Production Capacity：10000,Month

Basic Info.

Model NO. TCH/HCH Certification ISO9001: 2000, Ce Condition New Color Black Brand Name Hugo Payment Term L/C T/T Loading Time Shanghai Port or Tianjin Port Delivery Time 10 Days Warranty 1 Year Place of Original China( Shanghai) Voltage 220V-440V Hook Forged Chain G80 Lifting Speed 8m/Min Power Source Electric Transport Package Carton, Plywood, Pallet Specification CE ISO Trademark HUGO Origin Shanghai, China HS Code 8425190000 Production Capacity 10000/Month

Product Description

The Introduction of Stage Electric Hoist
1) 2m/min for single chain
2) symmetrical structure
3) rain-proof design
4) steel-made cover
5) Friction overload protection
6)36V indirect control
7) limit switch of screw tpye
8) 100% test before assembling and loading
9) Warranty: 1 Year

Features of High Quality Electric Stage Hoists for Sale
1) Forging steel structure small electric hoist, plastic coating cover  .
2) Overload Protector is available, insulation is F grade. Single use or multiple operating with one control cabinet.
3) The anti-phase relay device protects machine from damage when power connection is in wrong way.
4) Dual brake system -electromagnetic brake and mechanical brake. Electromagnetic brake system, using non-asbestos brake linings to reduce maintenance times greatly.
5) 24-36V Low Voltage Control: The low voltage control can protect operators from electrical shocks.
6) The surface of chain is dealted with case carburization which contains Si Ni Mo. The inside material is softened.
7) Friction overload protection
8) 36V indirect control
9) limit switch of screw tpye
10) 100% test before assembling and loading.
11) you can hang upside down can also be positive.
12) Simply use the hooked end of the chain hung beam, while the lower hoist objects together along with the chain was hanging up crawling to a predetermined height, we have power after sale service system,you can believe us.


Stage electric chain hoist Technical parameter


Capacity(KG)	Model	Power(kw)	No. of load chain	Lift speed(m/min)	Weight of hoist without load chain(kg)	Weight of Load chain(Kg/m)
500	M6-W0.5A	0.42	1	4	30	1.1
500	M6-W0.5B	0.86	1	8	48	1.1
500	M6-W0.5C	0.83	1	4	48.5	1.1
1000	M6-W1A	1.5	1	8	50	1.1
1000	M6-W1B	0.86	2	2	52	2.2
2000	M6-W2A	1.5	2	4	54	2.2
2000	M6-W2B	1.5	1	16	50	1.1

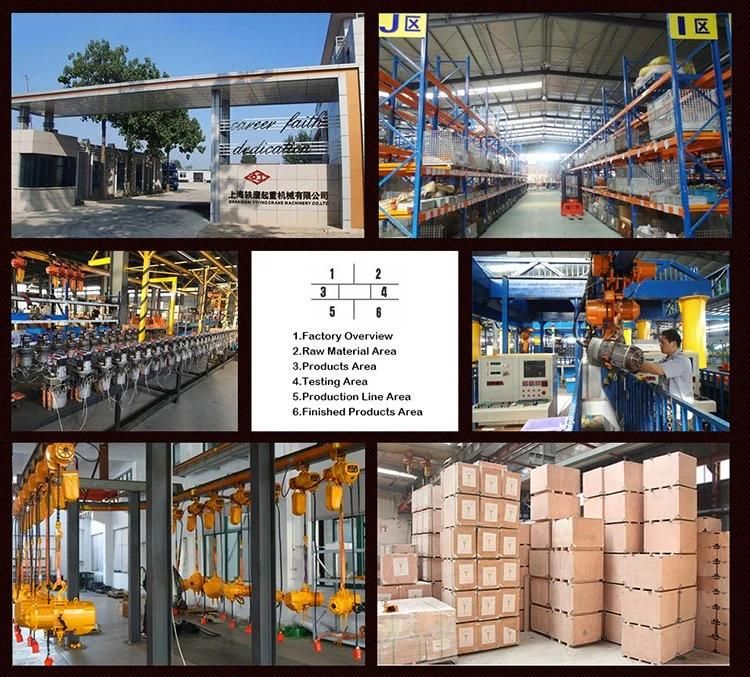

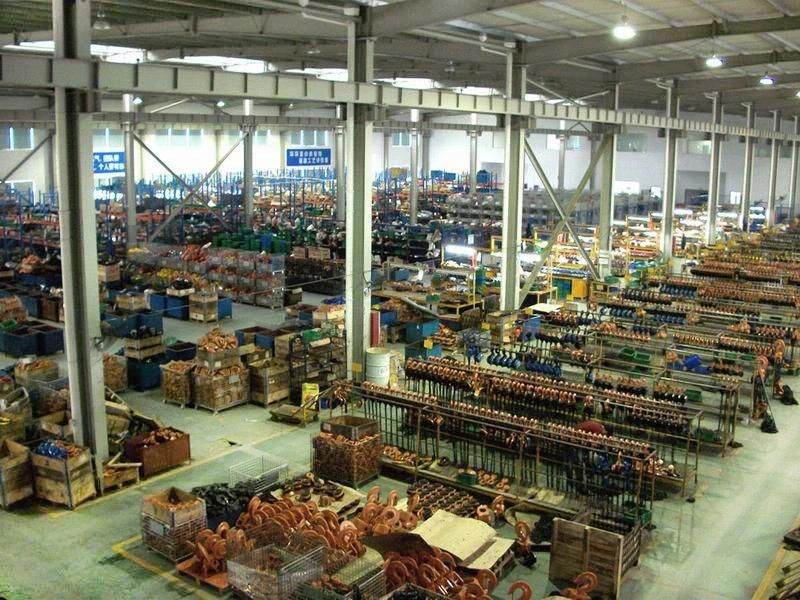

Company Information

Shanghai Yiying Crane Machinery Co., Ltd. Was established in 1992, which specializing in designing and manufacturing Manual Chain Hoist, Lever Hoist, Electric Hoists, Forklift and other lifting products.

1. Annual production in 5 million units production area 3600 square meters;

2. 4 production bases in HangZhou, Chongqing, Jiangsu and Hebei.

3. 120 production lines;

4. More than 500 employees;

5. Annual export value over 50 million RMB.



Why Choose Us

BRAND ADVANTAGE

1. 50 years brand history; (Trademark registration number; 1975110)

2. TOP5 lifting equipment supplier in China;

3. One of the first batch of enterprises certified by Alibaba;

4. Brand customers: CNPC, China Railway Group and so on



TECHNOLOGY ADVANTAGES

1. Focuse on the production and R&D of lifting equipment for about 30 years;

2. Professional independent research and development team, recognized by domestic and foreign customers.

3. Company was honored by the givernment as a High-Tech enterprise in 2010



Service Advantage

1. 7D*24H after-sales service,

2. More than 100 professional service staff.



The products of our company have exported to over 80 countries and regions,including EUROPE,USA,AUSTRALIA and SOUTHEAST ASIA,etc.
