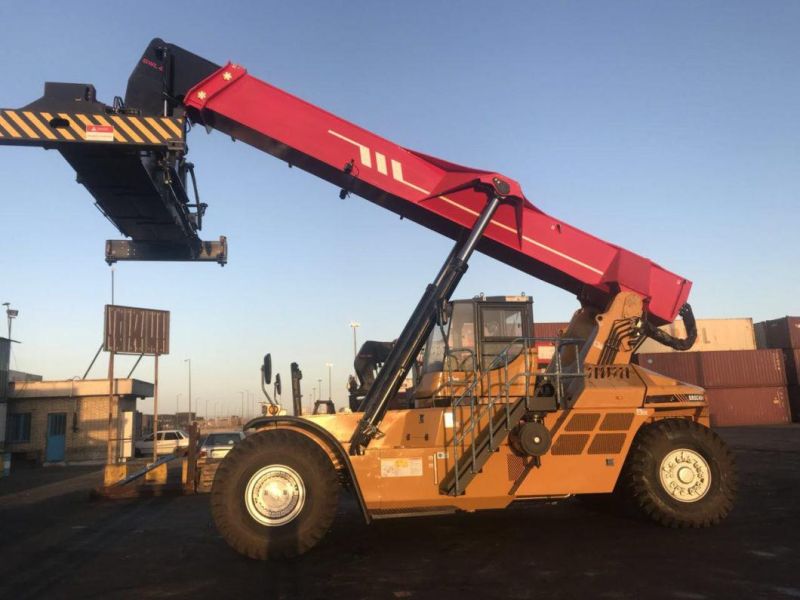

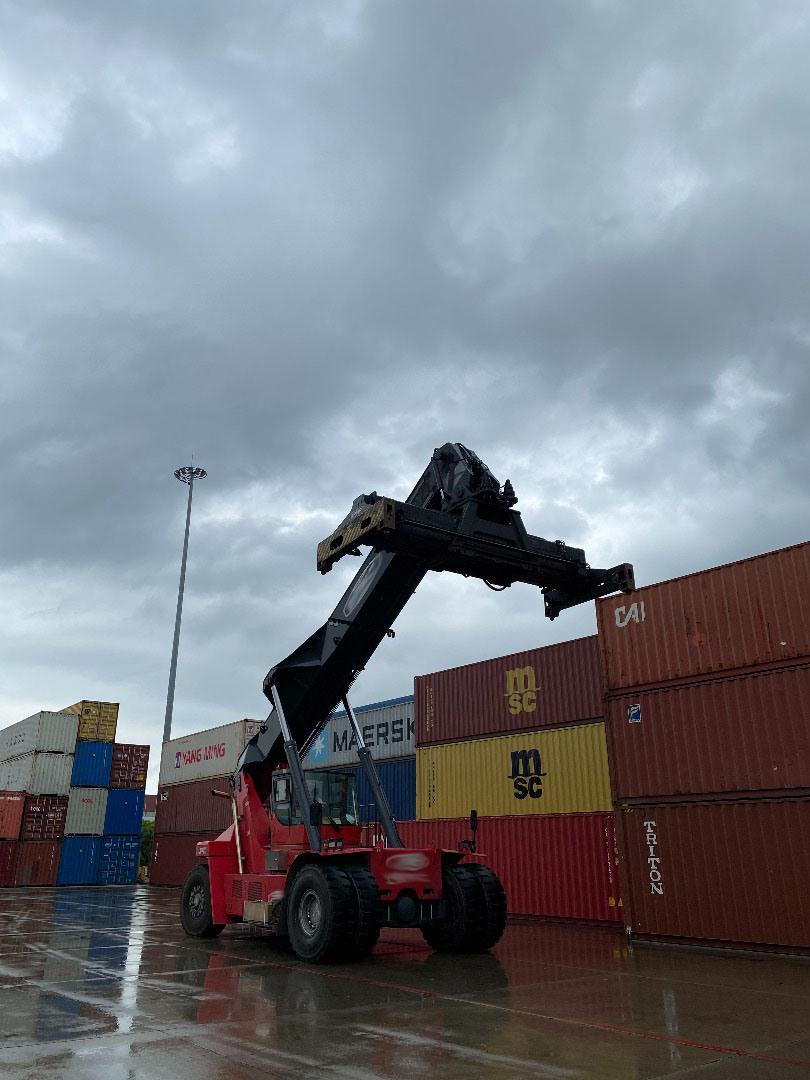

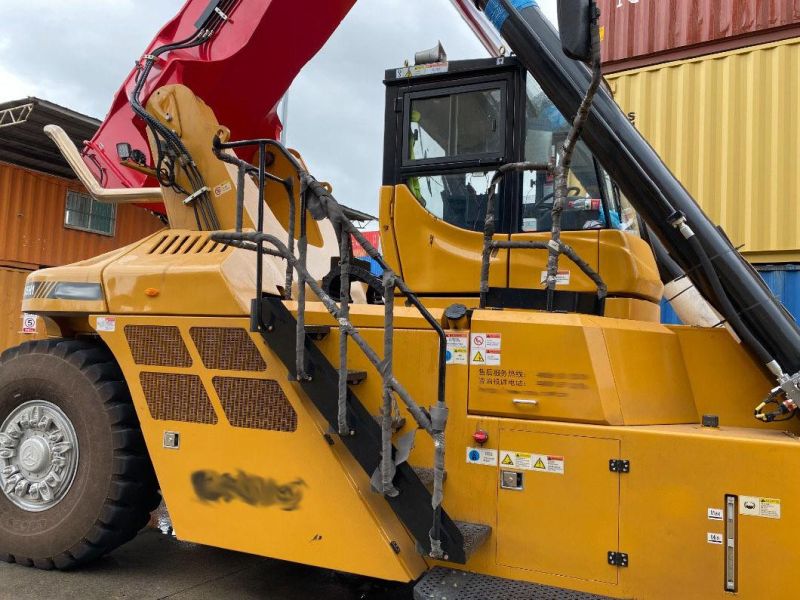

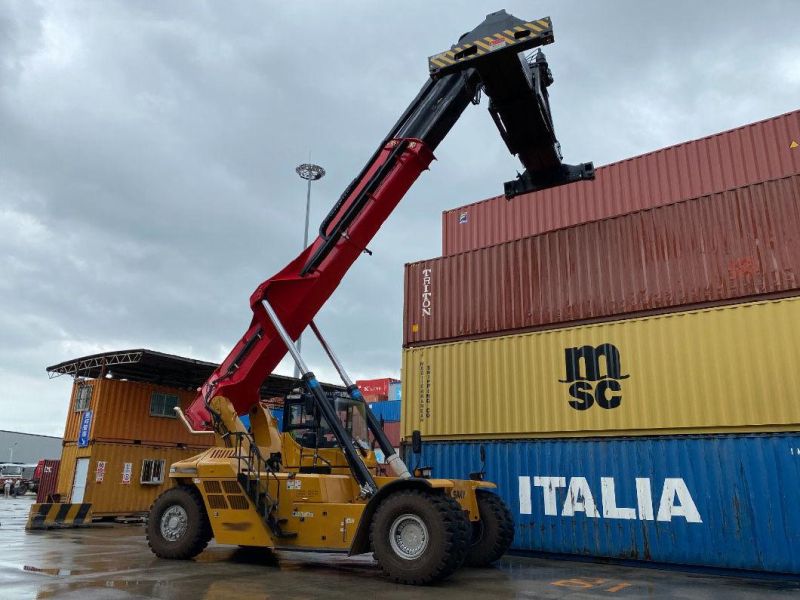

China Famous Brand 45 Ton Reach Stacker Srsc45h1

Evangel Industrial (Shanghai) Co., Ltd.
  • After-sales Service：Online Service
  • Warranty：1 Year
  • Type：Bridge Stacker & Reclaimer
  • Rated Power：265,2100 Kw,Rpm
  • Rated Torque：1780,1260 N.M
  • Wheelbase：6000mm

Base Info

  • Model NO.：SRSC45H1
  • Minimum Ground Clearance：350mm
  • Maximum Load：7800kg
  • Minimum Turning Radius：8000mm
  • Specification：11340*(6053-12185)*4770mm
  • Trademark：Top Brand
  • Origin：China
  • HS Code：8501109190
  • Production Capacity：200

Description

Equipment modelSRSC45H1modelTAD1151Rated power (kW)265/2100Rated torque (N·m)1780/1260Vehicle weight (kg)72000Cab noise (dB(A))≤72Climbing ability (no load/load) (%)39/32Maximum lifting speed (no load/load) (mm/s)420/250Maximum rate of descent (no load/load) (mm/s)360/300Maximum travel speed (no load/load) (km/h)25/21Transmission model15.5HR36000Drive axle modelKessler D102 PL341Overall dimension (length × width × height) (mm)L11340×6053-12185×4770Wheelbase (mm)6000Minimum ground clearance (mm)350Front wheel pitch (mm)3033Rear wheel pitch (mm)2790Minimum turning radius (mm)8000modelSDJ450FLateral displacement distance (mm)±800Maximum load (kg)7800Maximum lifting height (mm)15100Boom Angle (°)0~60
