• Model NO.：KH
• Maximum Lifting Height：20m
• Chain Falls：Customized
• Certification：CE, ISO9001:2000
• Condition：New
• Color：Orange
• Max Lifting Weight：20 Ton
• Power Supply：Electric
• Running Rail：I36A~63c
• Protection Grade：IP54
• Environment Temperature：-20~45
• Insulation Grade：F
• Lifting Height：4~20m
• Voltage：3AC 220V-480V 50,60Hz
• Working Duty：M3
• Transport Package：Plywood Box
• Specification：10 ton
• Trademark：NYBON
• Origin：China
• HS Code：8425110000
• Production Capacity：300 Sets , Year

Basic Info.

Model NO. KH Maximum Lifting Height 20m Chain Falls Customized Certification CE, ISO9001:2000 Condition New Color Orange Max Lifting Weight 20 Ton Power Supply Electric Running Rail I36A~63c Protection Grade IP54 Environment Temperature -20~45 Insulation Grade F Lifting Height 4~20m Voltage 3AC 220V-480V 50/60Hz Working Duty M3 Transport Package Plywood Box Specification 10 ton Trademark NYBON Origin China HS Code 8425110000 Production Capacity 300 Sets / Year

Product Description

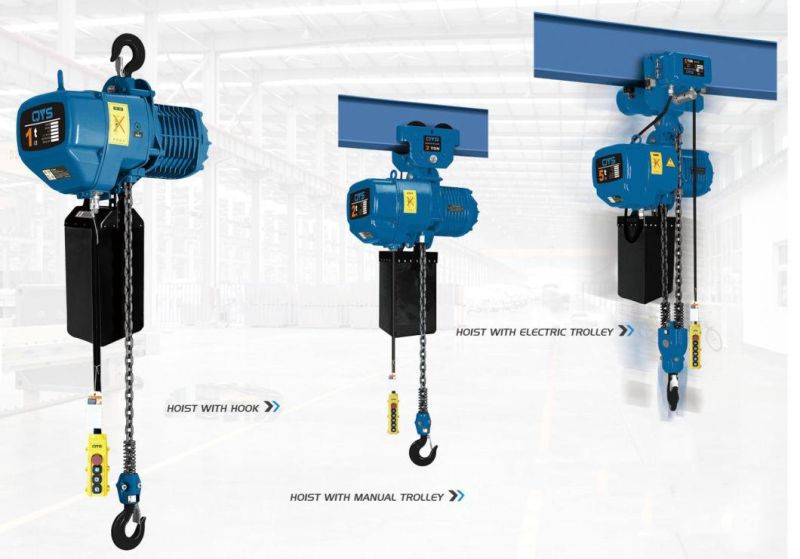

   1 Ton 2 Ton 3 Ton 5 Ton Electric Chain Block Hoist With 18 Months Warranty

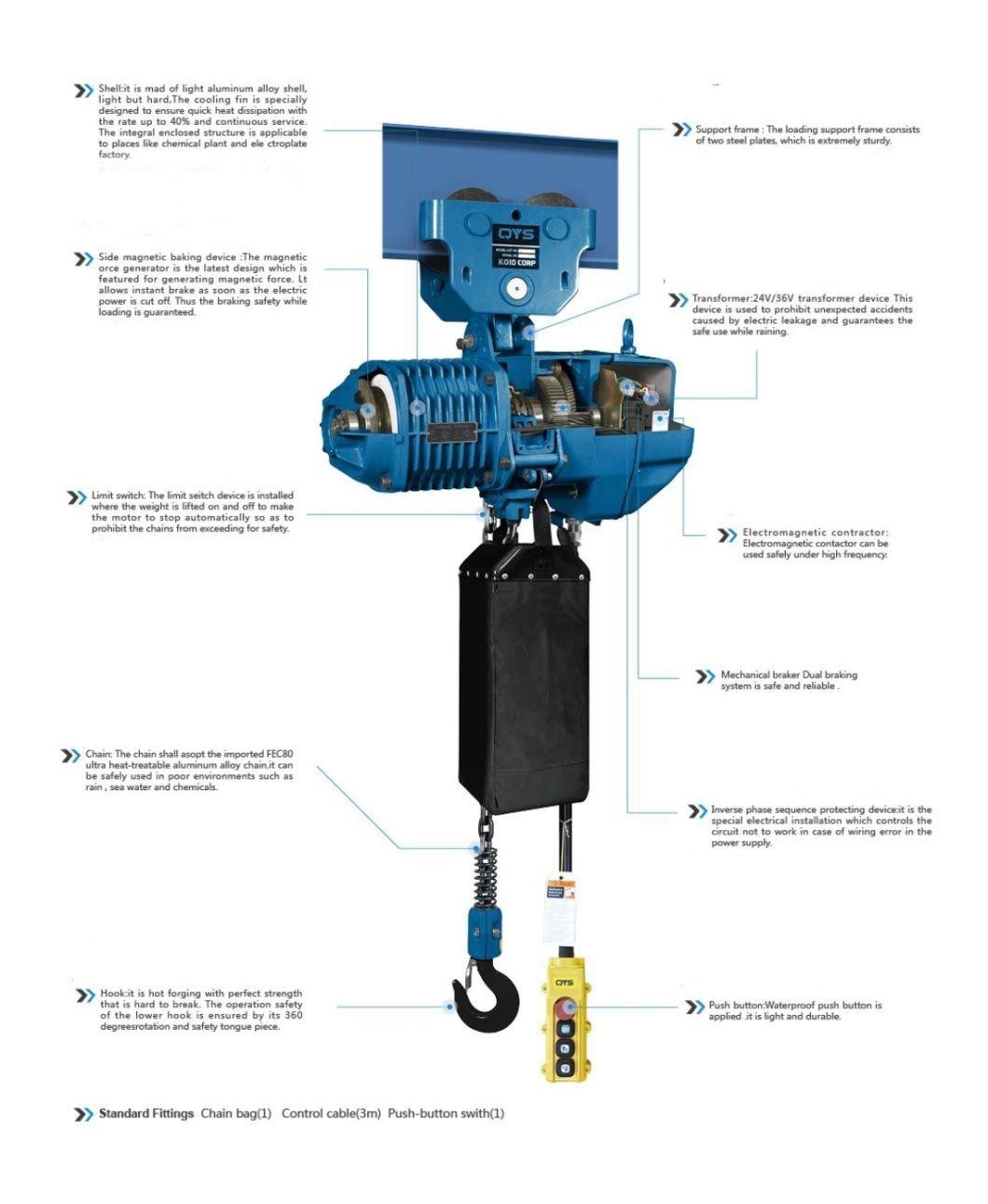

Electric chain hoist is a light and small lifting equipment. It consists of electric motor, transmission mechanism and sprocket.And all produced according to international standards. The body is beautiful in appearance and durable. The internal gearsare all quenched at high temperatures, which increases the wear resistance and toughness of the gears. The most advanced international technology is used, and the workmanship is fine and the gears are tightly fitted.

Electric Chain Hoist-Operating Conditions:

1.Altitude does not exceed 1000m
2.Ambient air temperature is -20 ° C ~ +40 ° C
3.Ambient air humidity is not more than 85% (at 25 ° C)
4.Power: three-phase AC, 220~480V, 50/60HZ. Motor terminal voltage fluctuation ±10%
5.The electric hoist is generally installed indoors. When installing outdoors, a rain cover should be added.
When the above environmental conditions are not met, special orders are made according to non-standard products.

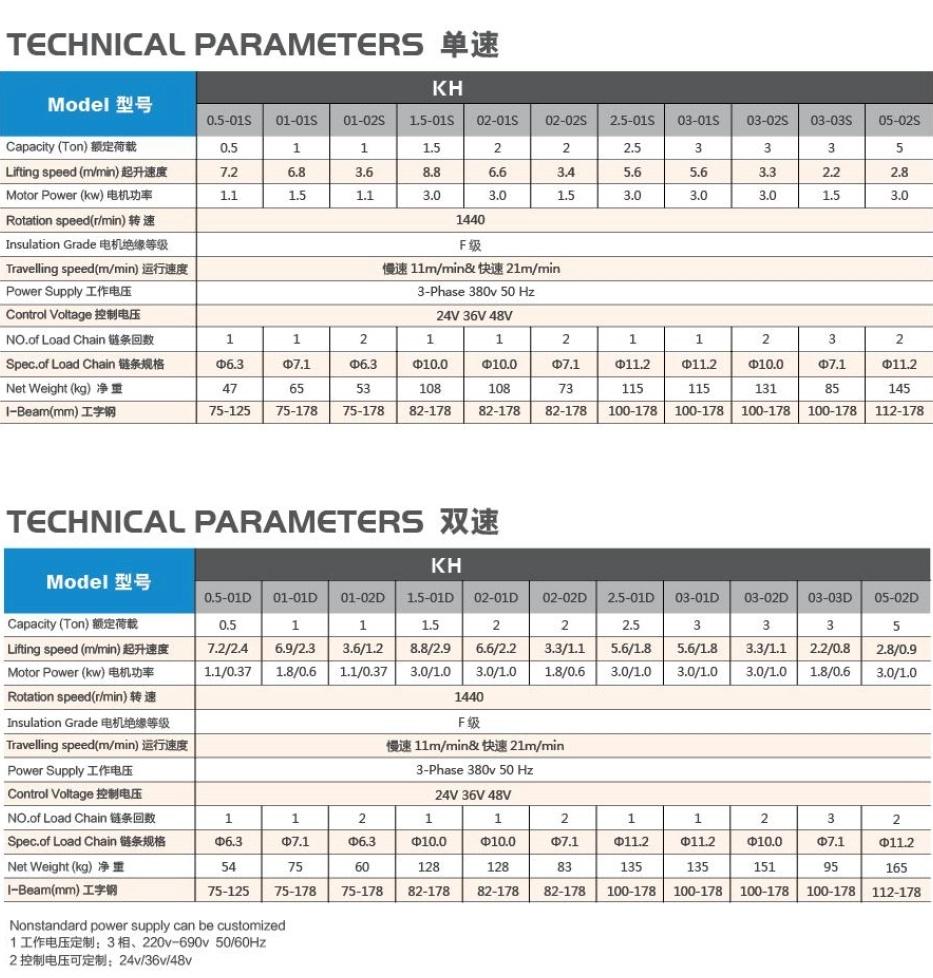

Main Technical Parameter:

Feature:

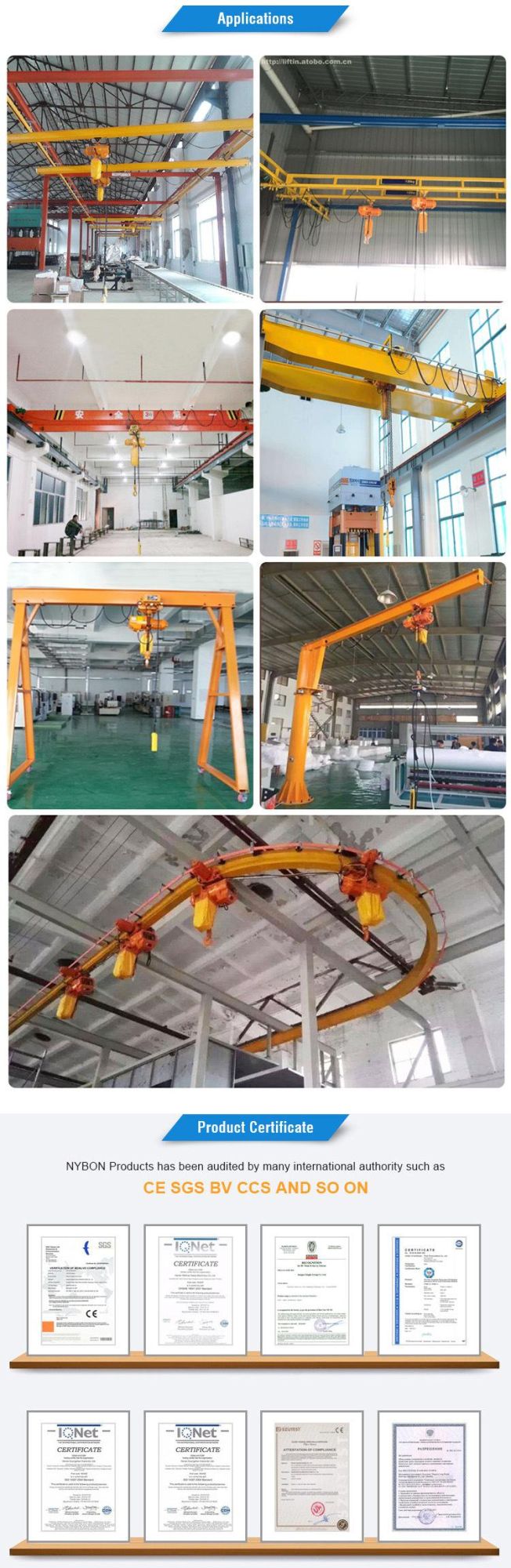

Application:

1,Extensively used in factories, workshops, warehouses and many other occasions to hoist materials directly,
2,installed on the straight or curve I-steel beam of Single-girder Cranes to lift goods.
3,It can also be used together with Electric Hoist Double-beam, gantry crane and slewing cranes to hoist different items
and so on.
It has so many appllication usages just for its advantages, such as: tight structure, convenient operation, light weight, wide
common use and so on.

Package&Shipping


Reated Products

Company Information



Customer Praise

FAQ

1. Q: What's your MOQ?

A: 1 Set;

2. Q: What's your package?

A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;

3. Q: What's your delivery period?

A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;

4. Q: What's your warranty period?

A: 12 months from winches accepted;

5. Q: Do you have engineer oversea installation service?

A: Yes; We have;

6. Q: What kinds of products do you have?

A: All kinds of industrial electric winch (especially non-standard); Overhead Crane; Gantry Crane, Electric Hoist; Screw Hoist;
Radial/Flat Gate Hoist; Steel Gate; etc.

7. Q: Do you provide lift tools?

A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch,
wire rope, fiber rope, etc.

8. Q: Could your winches drag inclined?

A: Yea, our electric winches could drag horizontal, drag inclined, hoisting vertical.
