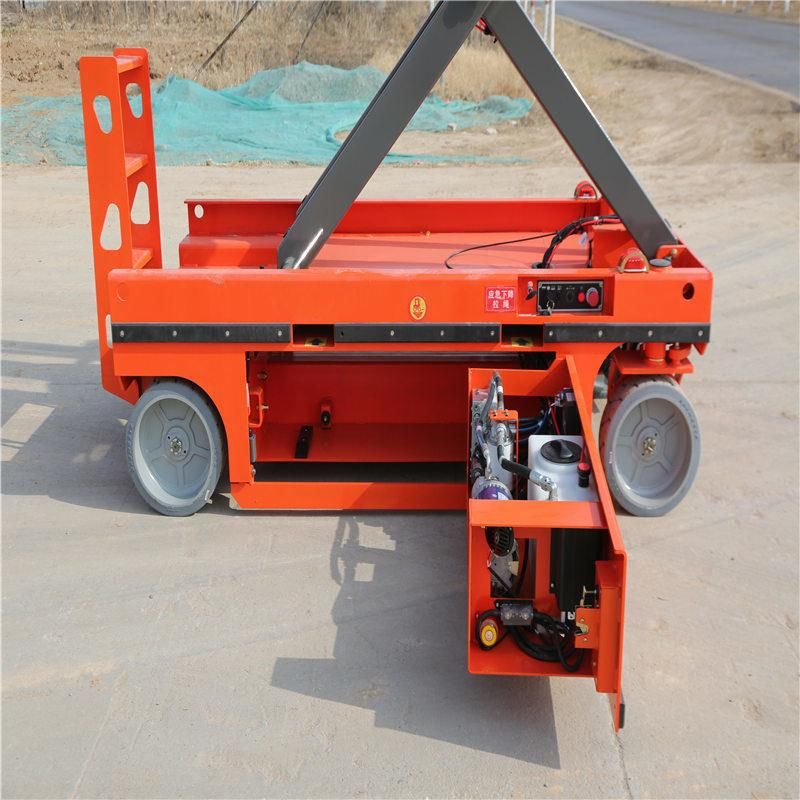

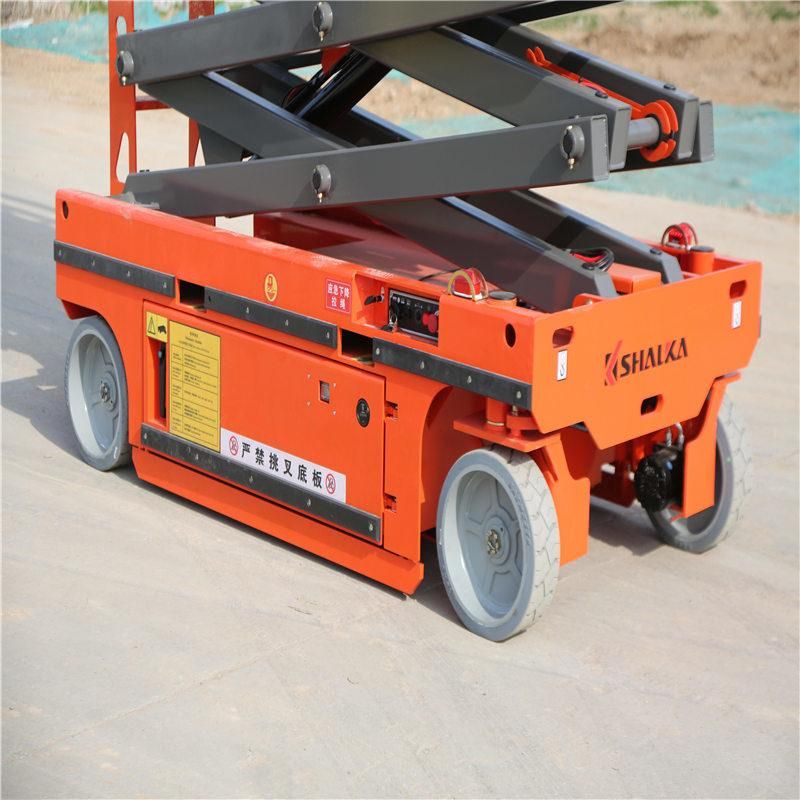

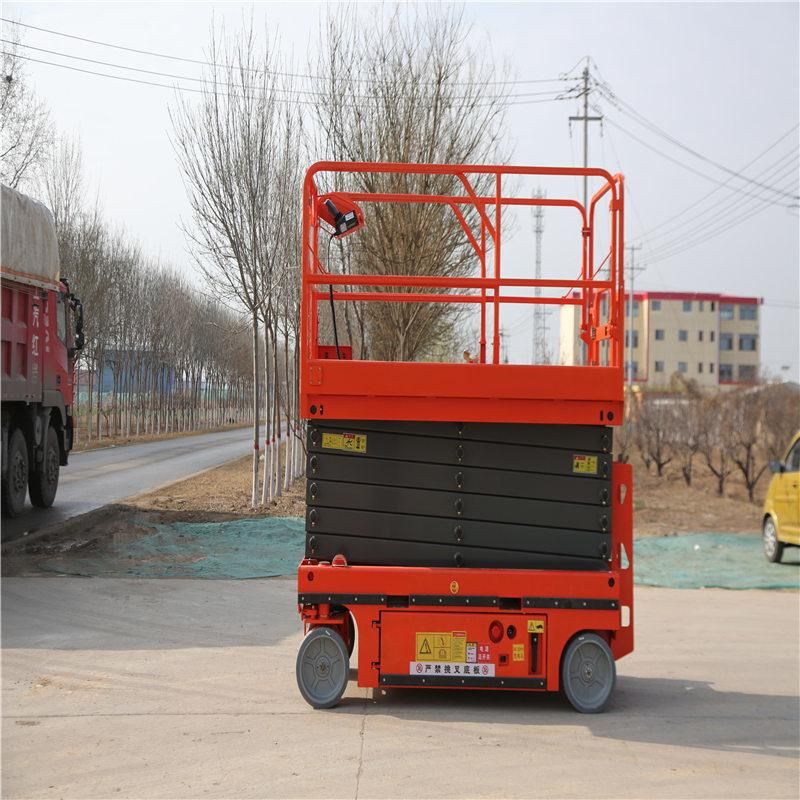

2ton Stand Drive Hydraulic Full Electric Pallet Stacker Electric Forklift
Shanding Machinery (Shandong) Group Co., Ltd.- After-sales Service:Online
- Warranty:1 Year
- Application:Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism:Scissor Lift
- Carrying Capacity:Light Level
- Moves:Vehicular
Base Info
- Driven Type:DC
- Running Mode:Moving
- Feature:Explosion-Proof
- Certification:CE, ISO 9001
- Table Extension Size:0.9m
- Wheelbase:1.89m
- Lifting /Driving Motor:24V,4.5kw
- Lifting Speed:3-5m,Min
- Trademark:Shanding
- Origin:Shandong
- HS Code:8428909090
- Production Capacity:500sets,Month
Description
Model (self-hydraulic drive)GTJZ12/10/8/6/14The maximum working height13.80mMaximum platform height11.80mSafe working load320kgExtended platform safe working load113kgWorking platform size ( length ×width×height)2.29×1.13×1.1mOverall dimensions ( length × width × height,
(The guardrail is not folded)2495*1187*2585mmOverall dimensions ( length × width × height,
Folding guardrail)2495*1187*2050Table extension size0.9mMinimum ground clearance0.1/0.02mWheelbase1.89mTurning radius (inner wheel/outer wheel)0/2.2mLifting / driving motor24V/4.5kwLifting speed3-5m/minMachine travel speed (closed state)3.5km/hMachine speed (lifting state)0.8km/hAccumulator4×12V/300ahcharger24V/30AMaximum climbing ability25%Maximum allowable angle of work1.5°/3°tireΦ 381×127 mmTotal Weight2960kg







(The guardrail is not folded)2495*1187*2585mmOverall dimensions ( length × width × height,
Folding guardrail)2495*1187*2050Table extension size0.9mMinimum ground clearance0.1/0.02mWheelbase1.89mTurning radius (inner wheel/outer wheel)0/2.2mLifting / driving motor24V/4.5kwLifting speed3-5m/minMachine travel speed (closed state)3.5km/hMachine speed (lifting state)0.8km/hAccumulator4×12V/300ahcharger24V/30AMaximum climbing ability25%Maximum allowable angle of work1.5°/3°tireΦ 381×127 mmTotal Weight2960kg







- Are you the original manufacturer?
A: Yes, we are Shandong Davoo Machinery Co., Ltd, one subsidiary of Shanding Group. Factory since the year 2003.
2. What kind of payment terms can be accepted?
A: Normally we accept T/T Payment
3. Which incoterms 2010 terms can we work?
A: Normally we can work on FOB (QINGDAO), CFR, CIF
4. What about the delivery time?
A: Within 7-10 days after receiving the deposit
5. What about the warranty time?
A: 1 year . We shoulder all costs during the warranty period, including the freight.
6. What about the Minimum Order Quantity?
A: The MOQ is 1 unit.
