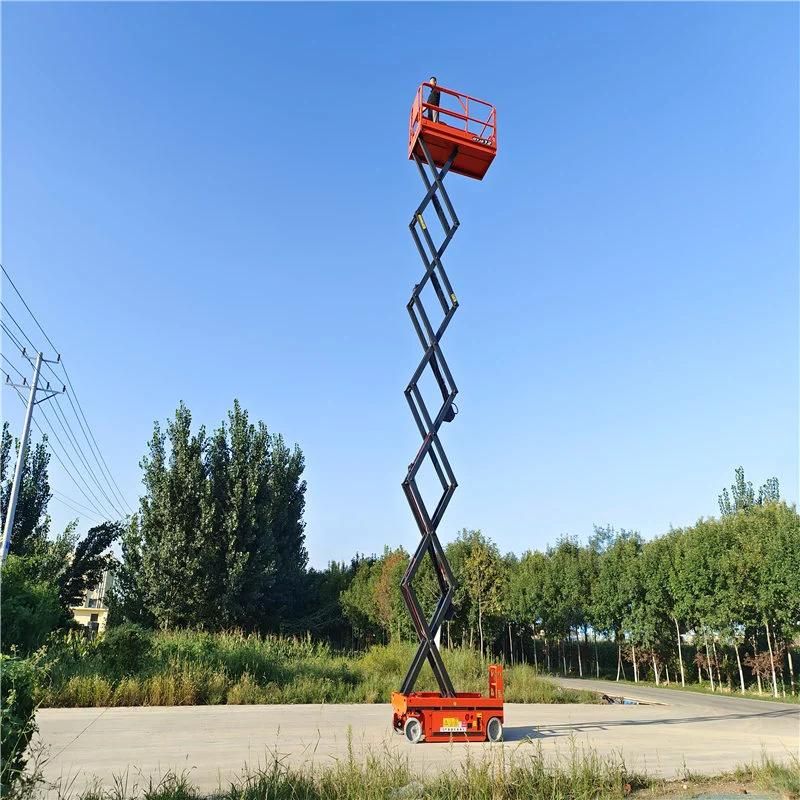

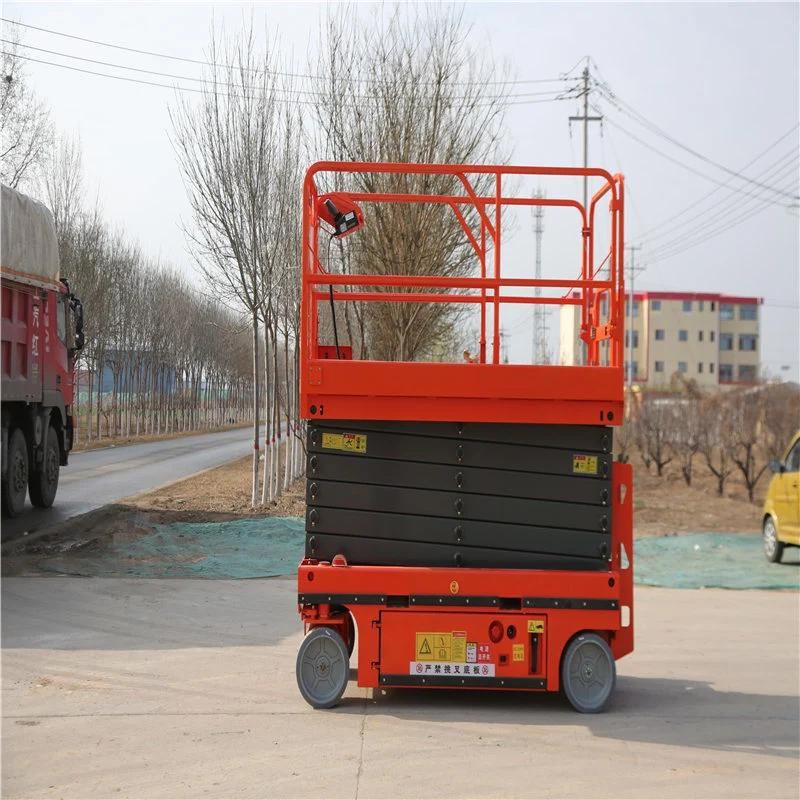

Self Driven Hydraulic Scissor Mobile Lifts One Man Lift

Shanding Machinery (Shandong) Group Co., Ltd.
  • After-sales Service：Online
  • Warranty：1 Year
  • Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
  • Lift Mechanism：Scissor Lift
  • Carrying Capacity：Light Level
  • Moves：Vehicular

Base Info

  • Driven Type：DC
  • Running Mode：Moving
  • Feature：Explosion-Proof
  • Certification：CE, ISO 9001
  • Table Extension Size：0.9m
  • Wheelbase：1.89m
  • Lifting /Driving Motor：24V,4.5kw
  • Lifting Speed：3-5m,Min
  • Trademark：Shanding
  • Origin：Shandong
  • HS Code：8428909090
  • Production Capacity：500sets,Month

Description

Model (self-hydraulic drive)GTJZ12/10/8/6/14The maximum working height13.80mMaximum platform height11.80mSafe working load320kgExtended platform safe working load113kgWorking platform size ( length ×width×height)2.29×1.13×1.1mOverall dimensions ( length × width × height,
(The guardrail is not folded)2495*1187*2585mmOverall dimensions ( length × width × height,
Folding guardrail)2495*1187*2050Table extension size0.9mMinimum ground clearance0.1/0.02mWheelbase1.89mTurning radius (inner wheel/outer wheel)0/2.2mLifting / driving motor24V/4.5kwLifting speed3-5m/minMachine travel speed (closed state)3.5km/hMachine speed (lifting state)0.8km/hAccumulator4×12V/300ahcharger24V/30AMaximum climbing ability25%Maximum allowable angle of work1.5°/3°tireΦ 381×127 mmTotal Weight2960kg
Self Driven Hydraulic Scissor Mobile Lifts One Man LiftSelf Driven Hydraulic Scissor Mobile Lifts One Man LiftSelf Driven Hydraulic Scissor Mobile Lifts One Man LiftSelf Driven Hydraulic Scissor Mobile Lifts One Man LiftSelf Driven Hydraulic Scissor Mobile Lifts One Man LiftSelf Driven Hydraulic Scissor Mobile Lifts One Man LiftSelf Driven Hydraulic Scissor Mobile Lifts One Man Lift
  1. Are you the original manufacturer?
    A: Yes, we are Shandong Davoo Machinery  Co., Ltd, one subsidiary of Shanding Group. Factory since the year 2003.

    2. What kind of payment terms can be accepted?
    A: Normally we accept T/T Payment

    3. Which incoterms 2010 terms can we work?
    A: Normally we can work on FOB (QINGDAO), CFR, CIF

    4. What about the delivery time?
    A: Within 7-10 days after receiving the deposit

    5. What about the warranty time?
    A: 1 year . We shoulder all costs during the warranty period, including the freight.

    6. What about the Minimum Order Quantity?
    A: The MOQ is 1 unit.
