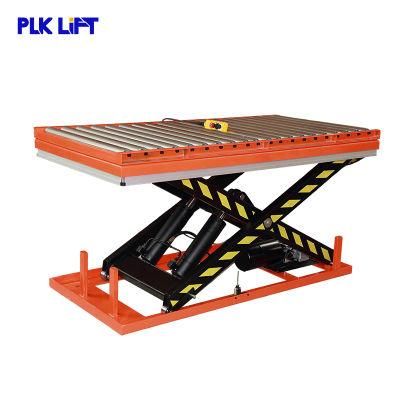

Warehouse Cargo Material Lifting Platform Scissor Lift Table
Jinan PLK Machinery Co., Ltd.- After-sales Service：Online Service, Free Express Accessories.
- Warranty：12 Months
- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Scissor Lift
- Carrying Capacity：Middle-Level
- Moves：Stationary
Base Info
- Model NO.：HW
- Driven Type：Hydraulic
- Running Mode：Stationary
- Feature：Explosion-Proof
- Certification：GS, CE, RoHS, ISO 9001
- Voltage：220V 380V
- Color：Customized
- Used：Lifting Goods
- Load Capacity：3000kg, 5000kg etc
- Product Name：Hydraulic Car Scissor Lift
- Control：Control Panel
- Lift Drive：Hydraclic
- Lifting Speed：4-6m,Min
- Installation：in Pit or on Ground
- Main Material：Strength Durable Steel
- Transport Package：High Quality Box
- Specification：1300*820*2000mm 320kg
- Trademark：PLK LIFT
- Origin：China(Mainland)
- HS Code：8428909090
- Production Capacity：1000 Set,Month
Description
1000Kg Load Capacity Standard Scissor Lift HW1001 1000 205 1000 1300×820 1240×640 20~25 customized 1.1 160 HW1002 1000 205 1000 1600×1000 1240×640 20~25 1.1 186 HW1003 1000 240 1300 1700×850 1580×640 30~35 1.1 200 HW1004 1000 240 1300 1700×1000 1580×640 30~35 1.1 210 HW1005 1000 240 1300 2000×850 1580×640 30~35 1.1 212 HW1006 1000 240 1300 2000×1000 1580×640 30~35 1.1 223 HW1007 1000 240 1300 1700×1500 1580×1320 30~35 1.1 365 HW1008 1000 240 1300 2000×1700 1580×1320 30~35 1.1 430
Features & Advantages:
All our products are CE certificated, good quality and competitive price. Welcome to send the inquiry to us if you are interested in any of them, and we will reply you ASAP.

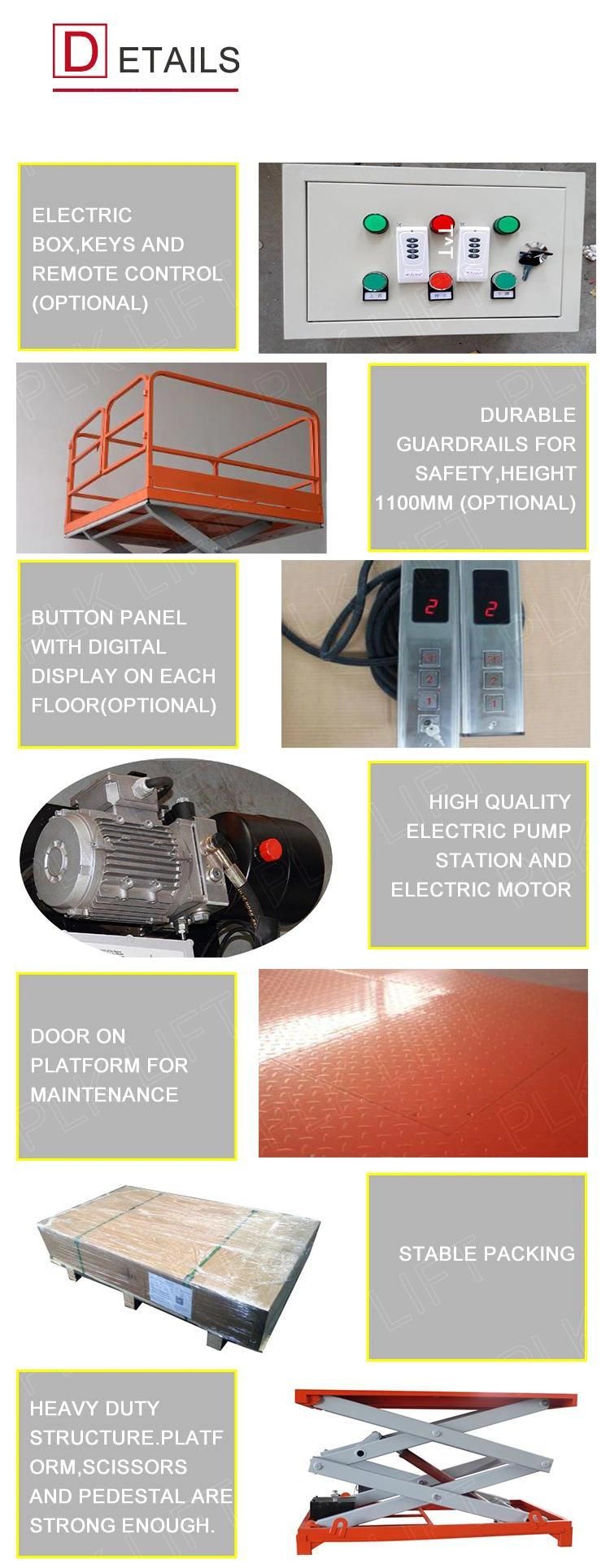

Features & Advantages:
- Surface treatment: shot blasting and stoving varnish with anti-corrosion function.
- High quality pump station makes scissor lift table lifts and fall very stable.
- Anti-pinch scissor design; main pin-roll place adopts self-lubricating design which prolong life span.
- Removable lifting eye to help lift the table and install.
- Heavy duty cylinders with drainage system and check valve to stop the lift table dropping in case of hose burst.
- Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
- Equipped with aluminum safety sensor under the platform for anti-pinch while dropping.
- Up to American standard ANSI/ASME and Europe standard EN1570
- Safe clearance between scissor to prevent damages during operation.
- Brief structure make it much easier to operate and maintain.
- Stop at the per-concerted and accurate location point.
- Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
- Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
- Emergency decline valve: it can go down when you meet an emergency or the power off.
- Overload protection locking device: in case of dangerous overload.
- Anti-dropping device: Prevent falling of platform.
- Automatic aluminum safety sensor: lift platform will stop automatically when come across barriers.
All our products are CE certificated, good quality and competitive price. Welcome to send the inquiry to us if you are interested in any of them, and we will reply you ASAP.
