• Model NO.：HW, HT, HD, HF
• Driven Type：Hydraulic
• Running Mode：Stationary
• Feature：Explosion-Proof
• Certification：GS, CE, RoHS, ISO 9001
• Voltage：110V, 220V, 380V, 400V, Customized
• Color：Red, Yellow, Orange, Blue, Green, Customized
• Load Capacity：1000kg, 2000kg, 4000kg, Customized
• Lifting Height：1m, 1.3m, 1.4m, 1.5m, Customized
• Platform Size：Standard Models, Customized Models
• Safety Precautions 1：Aluminum Safety Sensor
• Safety Precautions 2：Explosion Proof Valve
• Safety Precautions 3：Spillover Valve
• Safety Precautions 4：Emergency Decline Valve
• Customization 1：with Rollers on Top
• Customization 2：with Protective Curtains
• Customization 3：with Wheels for Easy Moving
• Customization 4：with Guardrails
• Customization 5：Battery Operated Moving
• Customization 6：One Controller for Two Units Working Together
• Transport Package：High Quality Box
• Specification：1300*820*2000mm 320kg
• Trademark：PLK LIFT
• Origin：China
• HS Code：8428909090
• Production Capacity：1000 Set,Month

Basic Info.

Model NO. HW, HT, HD, HF Driven Type Hydraulic Running Mode Stationary Feature Explosion-Proof Certification GS, CE, RoHS, ISO 9001 Voltage 110V, 220V, 380V, 400V, Customized Color Red, Yellow, Orange, Blue, Green, Customized Load Capacity 1000kg, 2000kg, 4000kg, Customized Lifting Height 1m, 1.3m, 1.4m, 1.5m, Customized Platform Size Standard Models, Customized Models Safety Precautions 1 Aluminum Safety Sensor Safety Precautions 2 Explosion Proof Valve Safety Precautions 3 Spillover Valve Safety Precautions 4 Emergency Decline Valve Customization 1 with Rollers on Top Customization 2 with Protective Curtains Customization 3 with Wheels for Easy Moving Customization 4 with Guardrails Customization 5 Battery Operated Moving Customization 6 One Controller for Two Units Working Together Transport Package High Quality Box Specification 1300*820*2000mm 320kg Trademark PLK LIFT Origin China HS Code 8428909090 Production Capacity 1000 Set/Month

Product Description

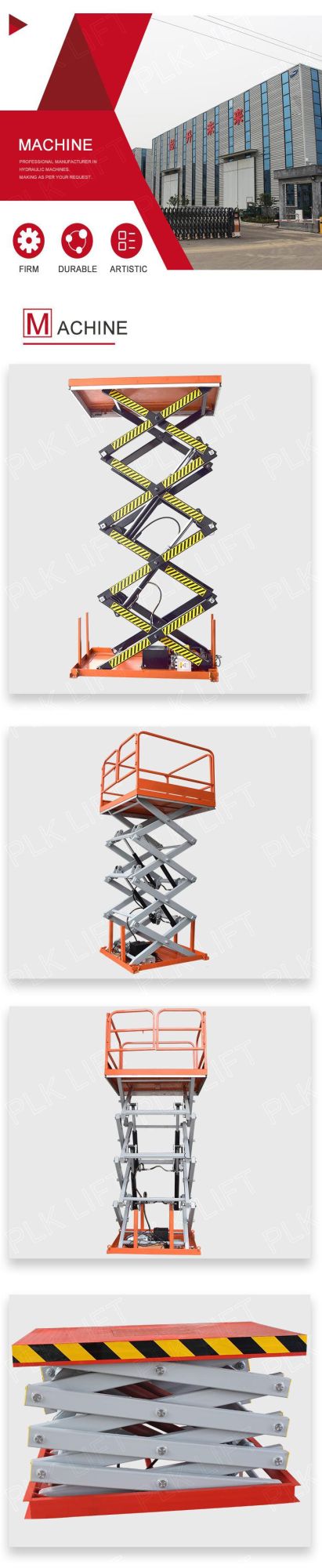

4m High-end stationary electric hydraulic scissor lift table


PLK HF Series Scissor Lift Tables are high-quality electronic hydraulic scissor lifts with loading capacities from 1,000KG to 4,000KG, and lifting heights up to 4m. We also accept customized platform size and lifting height.It can be installed both on the ground and in the pit.


Model	Load Capacity(kg)	Max. Platform Height(mm)	Self Height (mm)	Platform Size(mm)	Base Size (mm)	Lifting time(s)	Voltage (v)	Net weight (KG)
HF400	400	4140	600	1700x1000	1600x1000	30-40	customized	800
HF800	800	4210	706	1700x1000	1606x1010	70-80	customized	858

Features & Advantages:

1. Surface treatment: shot blasting and stoving varnish with anti-corrosion function.
2. High quality pump station makes scissor lift table lifts and fall very stable.
3. Anti-pinch scissor design; main pin-roll place adopts self-lubricating design which prolong life span.
4. Removable lifting eye to help lift the table and install.
5. Heavy duty cylinders with drainage system and check valve to stop the lift table dropping in case of hose burst.
6. Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
7. Equipped with aluminum safety sensor under the platform for anti-pinch while dropping.
8. Up to American standard ANSI/ASME and Europe standard EN1570
9. Safe clearance between scissor to prevent damages during operation.
10. Brief structure make it much easier to operate and maintain.
11. Stop at the per-concerted and accurate location point.

Safety Precautions:

1. Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
2. Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
3. Emergency decline valve: it can go down when you meet an emergency or the power off.
4. Overload protection locking device: in case of dangerous overload.
5. Anti-dropping device: Prevent falling of platform.
6. Automatic aluminum safety sensor: lift platform will stop automatically when come across barriers.
