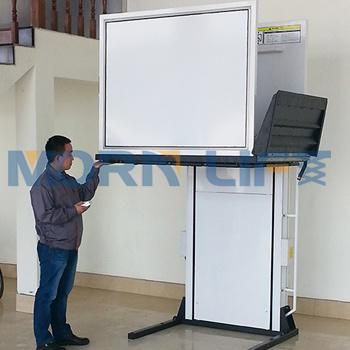

Morn 250kg Disabled Access Lift for Home Use
Jinan Morn Technology Co., Ltd.- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Lift Chain
- Carrying Capacity：Light Level
- Moves：Stationary
- Driven Type：Hydraulic
- Running Mode：Stationary
Base Info
- Model NO.：WL0.25-7
- Feature：Explosion-Proof, Insulating
- Certification：CE
- Lifting Height：7000mm
- Load Capacity：250kg
- Table Size：1400X900mm
- Platform：Anti-Skid Board
- Voltage：220VV, 380V, 415V, Optional
- Lift Speed：60mm,S
- Protection Device：Down Platform Safety Sensor
- Materials：Aluminum Alloy
- Installation：Easy Install No Pit
- Emergency Stop：Manual Emergency Stop Valve
- Transport Package：Nude Packing or According Your Requirement
- Specification：1430*900mm
- Trademark：MORN
- Origin：Shandong, China
- Production Capacity：50 Units Per Month
Description
Safety Sensor
Home elevator lift stop running if bottom meet obstacle to protect people under platform.

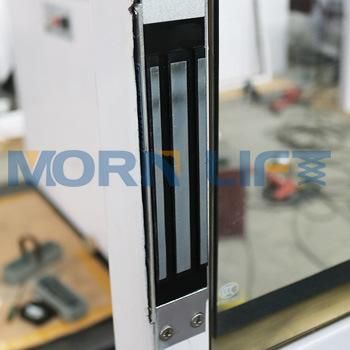

Electrical Interlock
Home elevator stop lifting up or down when door is not closed.

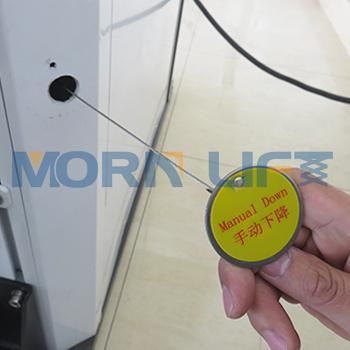

Manual Down
In case of the failure of electricity supply, the platform will be suspended in midair. Then we could manually make the platform come down to Ground floor by the Manual Down. Prevent potential danger.

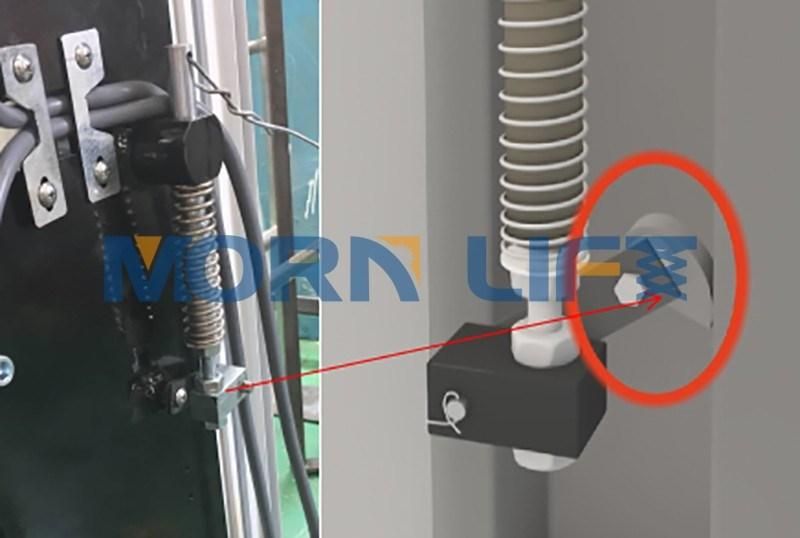

Anti-drop system
If the chain is broken during rising or descending, anti-drop system will lock immediately within 2s, keeping people's safe.
Other Model
| Model | Lifting height | Load capacity | Platform size | Min height |
| WL0.25-1.2 | 1200mm | 250kg | 1400*900mm | 90mm |
| WL0.25-1.6 | 1600mm | 250kg | 1400*900mm | 90mm |
| WL0.25-2.0 | 2000mm | 250kg | 1400*900mm | 90mm |
| WL0.25-2.4 | 2400mm | 250kg | 1400*900mm | 90mm |
| WL0.25-2.8 | 2800mm | 250kg | 1400*900mm | 90mm |
| WL0.25-3.2 | 3200mm | 250kg | 1400*900mm | 90mm |
| WL0.25-3.6 | 3600mm | 250kg | 1400*900mm | 90mm |
| WL0.25-4.0 | 4000mm | 250kg | 1400*900mm | 90mm |
| WL0.25-4.4 | 4400mm | 250kg | 1400*900mm | 90mm |
| WL0.25-4.8 | 4800mm | 250kg | 1400*900mm | 90mm |
| WL0.25-5.2 | 5200mm | 250kg | 1400*900mm | 90mm |
| WL0.25-5.6 | 5600mm | 250kg | 1400*900mm | 90mm |
| WL0.25-6.0 | 6000mm | 250kg | 1400*900mm | 90mm |
