Ce Standard Hydraulic Container Side Loading Ramp Lift for Sale
Jinan Morn Technology Co., Ltd.- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Telescoping Lift
- Carrying Capacity：Special Weight Level
- Moves：Moving
- Driven Type：Hydraulic
- Running Mode：Moving
Base Info
- Feature：Explosion-Proof
- Certification：CE, ISO 9001
- Junction：400*1950mm
- Forklift Suspensive Board：2500*2000mm
- Floor：7500*2000mm
- Leading Board：600*500mm
- Overall Width：2010mm
- Usable Width：2000mm
- Max Working Grade：≤13°
- Color：Blue, Green,Yellow or as Your Requirements
- Supporting Legs：No Need
- Platform：Antiskid
- Transport Package：Nude Packing or According Your Requirement
- Specification：CE, ISO
- Trademark：MORN
- Origin：China
- HS Code：8428909090
- Production Capacity：1000sets,Month
Description

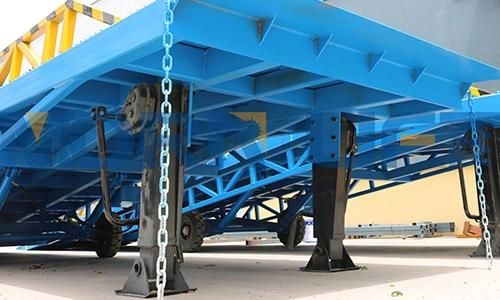

Heavy duty legs
Two pcs for supporting the ramp safety. Making the ramp more stabilize when the dock ramp is not working.

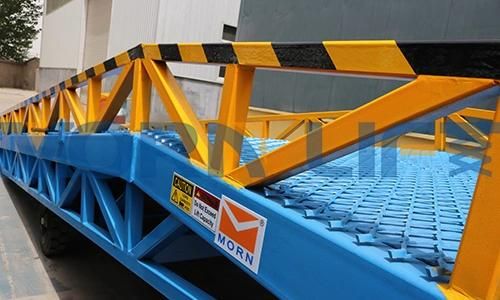

Truss structure
Truss structure of the ramp body and guard rail candisperse the pressure from the loading stuff. Making the ramp stronger.

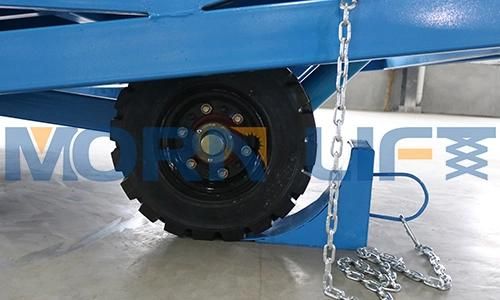

Solid tire
It has a strong support for the ramp body. And the big solid tire make the moving faster.

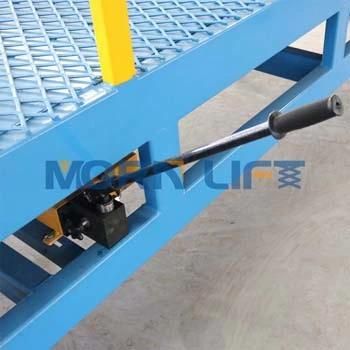

Adjusting bar
It's one hydraulic pump handle, to adjust height of loading ramp. One worker can use it to lift up the ramp to the bottom, then make the ramp surface of container or truck. DC power for option.
2. Model list
| Model | Load (T) | Working height (m) | Working grade | Dimensions(m) | Driving force |
| MDR-5 | 5 | 1.0 ~ 1.7 | ≤13° | 11*2.08*1.3 | Manual or electric |
| MDR-6 | 2 | 1.0 ~ 1.7 | ≤13° | 11*2.08*1.3 | Manual or electric |
| MDR-8 | 8 | 1.0 ~ 1.7 | ≤13° | 11*2.08*1.3 | Manual or electric |
| MDR-10 | 10 | 1.0 ~ 1.7 | ≤13° | 11*2.08*1.3 | Manual or electric |
| MDR-12 | 12 | 1.0 ~ 1.7 | ≤13° | 11*2.08*1.3 | Manual or electric |
| MDR-15 | 15 | 1.0 ~ 1.7 | ≤13° | 11*2.08*1.3 | Manual or electric |
3. Hydraulic system
(1) With handle pump, screw the return valve clockwise.
(2) Move the handle stick, to lift the ramp slowly.
(3) When the return valve is screwed counterclockwise, the hydraulic oil will go back,
and the ramp will fall down on its own weight.
4. Safety
(1)Super antiskid corrugation grid.
The platforms Mobile Yard Ramps adopt special super antiskid corrugation grids. Which
are provided with reliable strength to avoid deforming permanently. The corrugation
gridstructure of the yard ramps enhances the antiskid property to provide forklifts with
better climbing capacity and operate ability. It can be used normally even in rain or snow.
(2) Adjustable safe pedestals
Adjustable safe pedestals to prevent forklift from turning over with the yard ramp laid at
the end of a vehicle, when a loaded forklift rises to the end of the vehicle, the weight at
the end of vehicle way cause it turning over.
The heights of pedestals can be adjusted according to the weight of vehicle so as to be
used by different vehicles.
5. Application

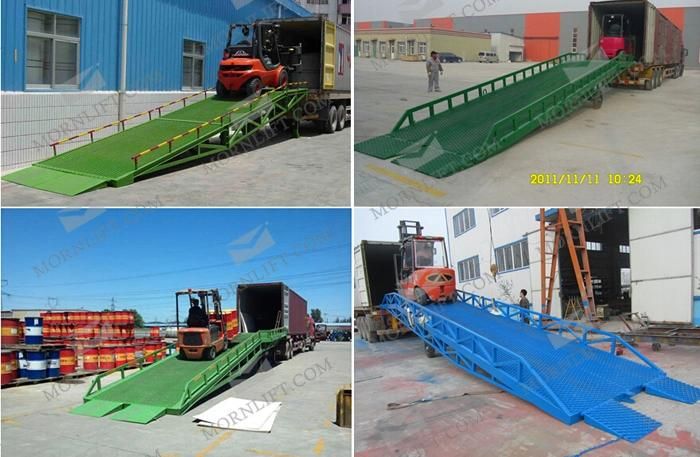

The loading ramp is widely used in the warehousing logistics base for frequently load
and unload goods, including the factory,warehouses with a variety of vehicle models,
stations, terminals and other places
6. After sales
1. User-friendly English manual for machine installation using and maintenance
2. One year warranty for whole machine without man-made fault;
3. We will send you parts for free if there are any non-human factors problem during
warranty time
4. 24-hours technical support by email, telephone or other communication online.
5. We could reply you in 2 hours after received your any questions even on weekend
and holiday, engineers are available to your country if necessary.
7. Note
1. Reply your inquiry in 24 working hours
2. Customized design is available,OEM are welcomed
3. Delivery the goods to our customer all over the world with speed and precision
4. Offer customer the lowest price with high quality lifting machine
